Anycubic Photon Mono X
Anycubic Photon Mono X
Anycubic Photon Mono X
Anycubic Photon Mono X
Anycubic Photon Mono X
Anycubic Photon Mono X

Anycubic Photon Mono X

Regular price£549.00
/
● 8.9" 4K Monochrome LCD
● Larger Print Volume: 192 x 120 x 245mm (LWH)
● Fast Printing Speed 3X
If you want to buy Resin 3D Printer, please click here to view the latest models.

  • Free Express Shipping
  • 14-Day No Reason Return
  • 30-Day After-Sales Guarantee
  • One-Year Warranty For 3D Printers
  • 100% Secure Payment


Product Description


8.9” 4K Monochrome LCD
8.9" 4K Monochrome LCD
4K resolution at 8.9 inch size, allows larger prints, more detail and accuracy.
Fast Printing Speed
Making printing speed 3X faster than the Photon.
Large Build Volume
A large build area for your 3D-printed creations : 192mm (L) * 120mm (W) * 245mm (H).
APP Remote Control
Remote control of print operations.


anycubic photon mono X printer
Technical Specifications
● System : ANYCUBIC Photon Mono X
● Operation : 3.5 inch Touch Screen
● Build Volume: 192mm(L)*120mm(W)*245mm(H)
● Light-source: high-quality filament(wavelength 405nm)
● XY Res.: 0.050mm 3840*2400(4K)
● Z Axis Res.: 0.01mm
● Layer Res.: 0.01-0.15mm
● Printing Speed: MAX 60mm/h
● Rated Power: 120W
● Material: 405nm UV Resin
● Software : ANYCUBIC Photon workshop
● Connectivity : USB
● Technology: LCD-based SLA
● Printer Size : 270mm(L)*290mm(W)*475mm(H)
● Net Weight: ~10.75kg

Safe Design
Printer will be immediately shut off if the top cover has been removed. This feature is turned off by default
Anycubic Slicer Software
New features are added to the software. Supports up to 8x anti-aliasing: Fast slicing, Hollowing, Split Model, Text Paste
Fast Printing Speed
The time of exposure is as low as 1.5-2 seconds, and the max print speed is 60mm/h, making printing speed 3X faster than the Photon.

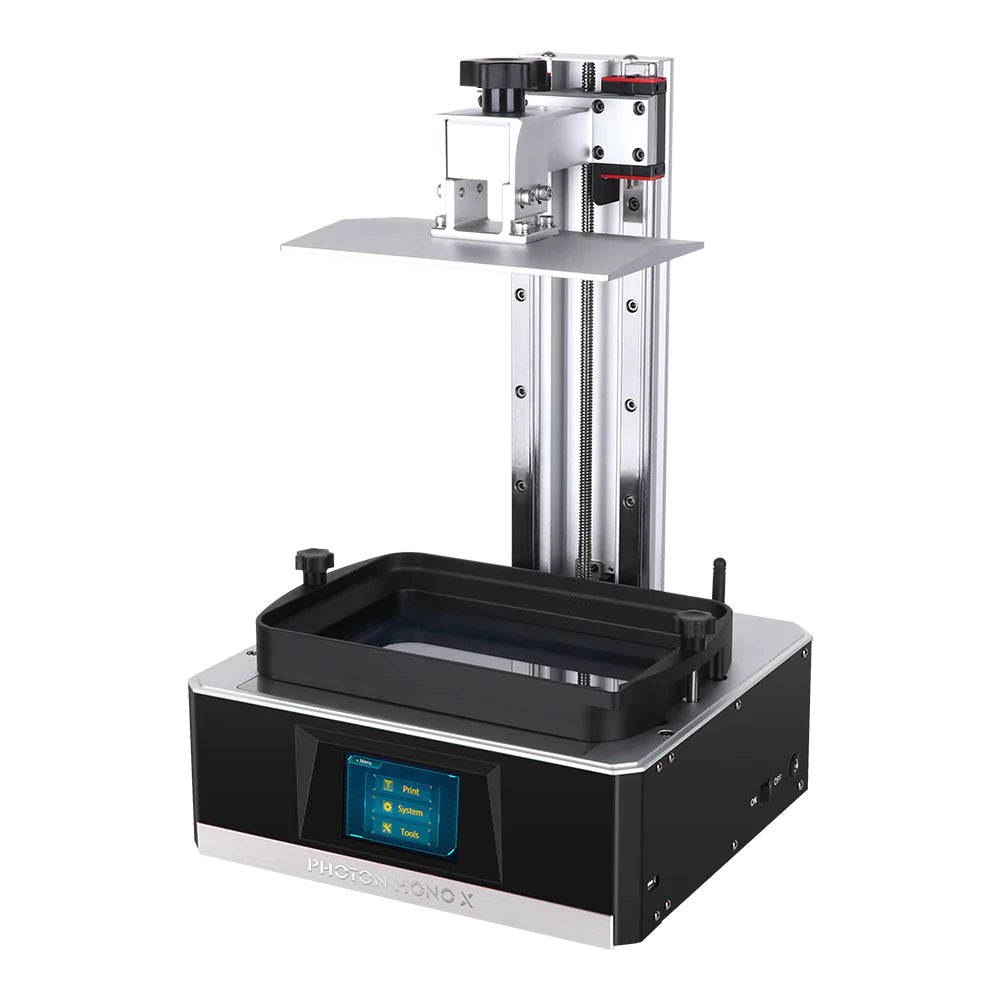

High Performance Z-axis
The Z-axis is supported by dual linear rails,stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of layer shifting.
New Matrix UV Light Source
High quality quartz lamp bead and new matrix design for uniform UV light energy. 4K monochrome LCD delivers high-quality prints
Anycubic APP Remote Control
Remote control of print operations,monitor printing progress,adjust the print settings, you could download it from HERE.
UV Cooling System
Cooling device for stable printing performance and longer service life.
Large Build Volume
A large build area for your 3D-printed creations :192mm(L)*120mm(W)*245mm(H)
8.9″ 4K Monochrome LCD
Monochrome screens can last several thousand hours. Monochrome screens allow for very short layer exposure times for faster print times.

Parts List
User Manual
SD-Card
Tool set
SD-Card Reader
Scraper
Resin Vat
Platform
Power Cord
Service Card
Wifi Antenna
Glove


    Photon Mono X
   Photon Mono 4K
   Photon Mono X 6k
Machine Weight 10.8kg 4.3kg 11kg
Machine Size 475x290x270mm 383x227x222mm 475x290x270mm
LCD Resolution 3840x2400px(4k) 3840x2400px(4k) 5760x3600px(6k)
LCD Size 8.9’’ monochrome 6.23’’ monochrome 9.25’’ monochrome
XY Resolution 50 microns 35 microns 34 microns
Z axis Accuracy 10 microns 10 microns 10 microns
Build volume 245xx192x120mm(5.6L) 165x132x80mm(1.74L) 245x197x122mm(5.89L)
Max.Printing Speed 60mm/h 50mm/h 80mm/h
