Balance Between Toughness and Resilience
An upgrade to the resilience of the plant-based resin brings both good toughness and strength to the models, making them easier to shape and shockproof.

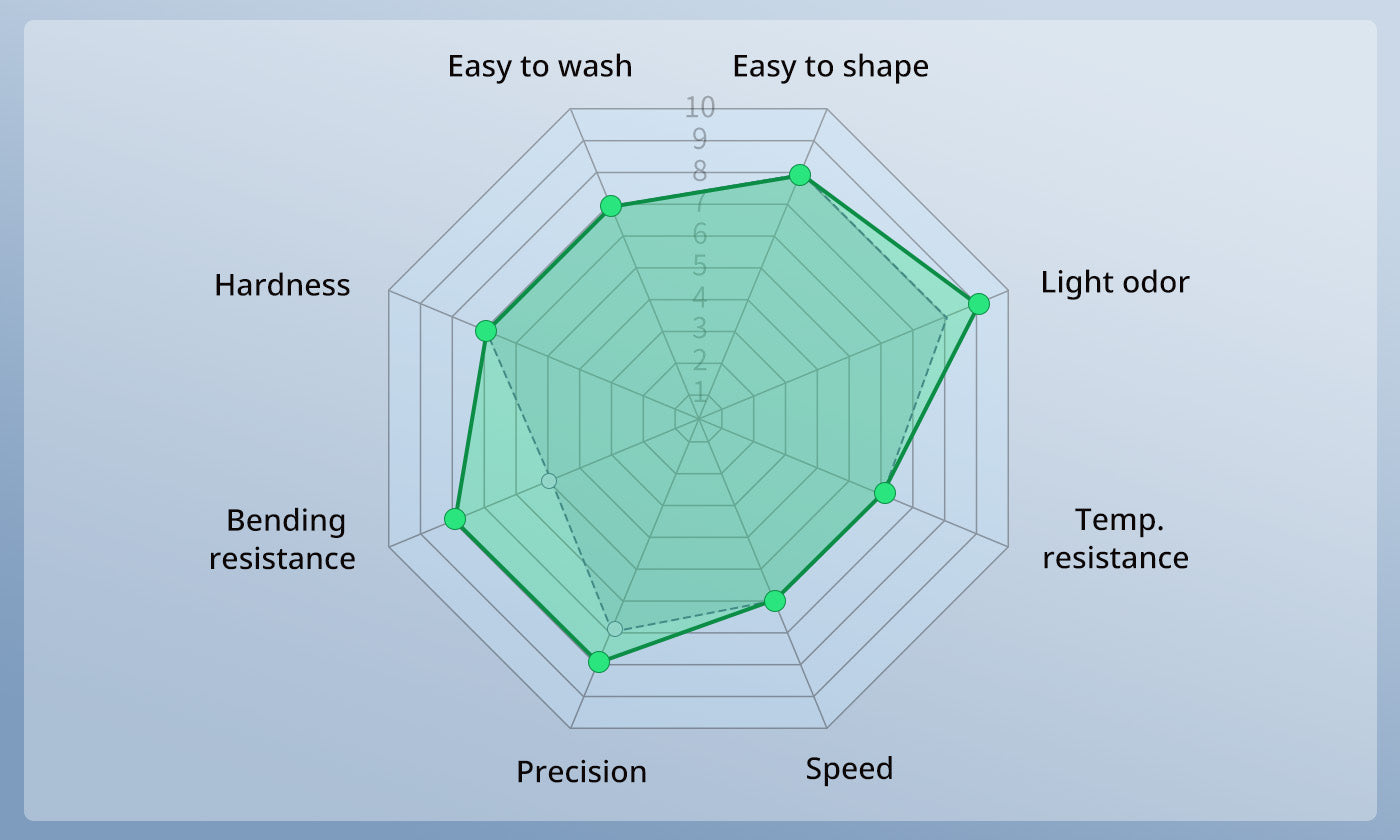

Recommendation lndex
Improved toughness, more resistant to bending
Stable High Performance and Delicate

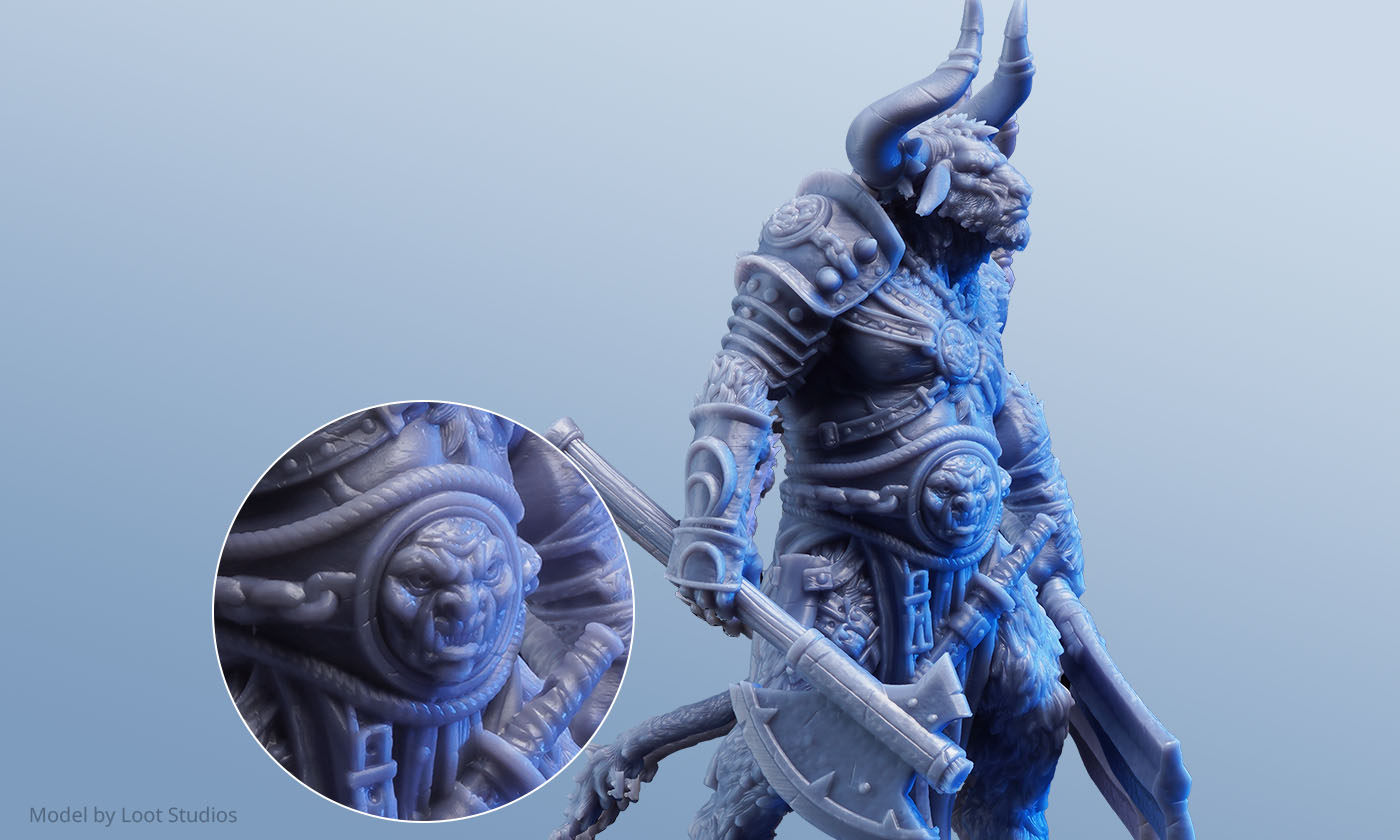

A low shrinkage rate makes less deformation to the models when building. The smooth and fine details of the finished miniatures highlight the premium quality.
Eco-friendly & Light odor
Soy extract formula, BPA-free, benzene toxin-free, and irritating VOCs volatile-free. Low odor and safe to use.
Low Odor

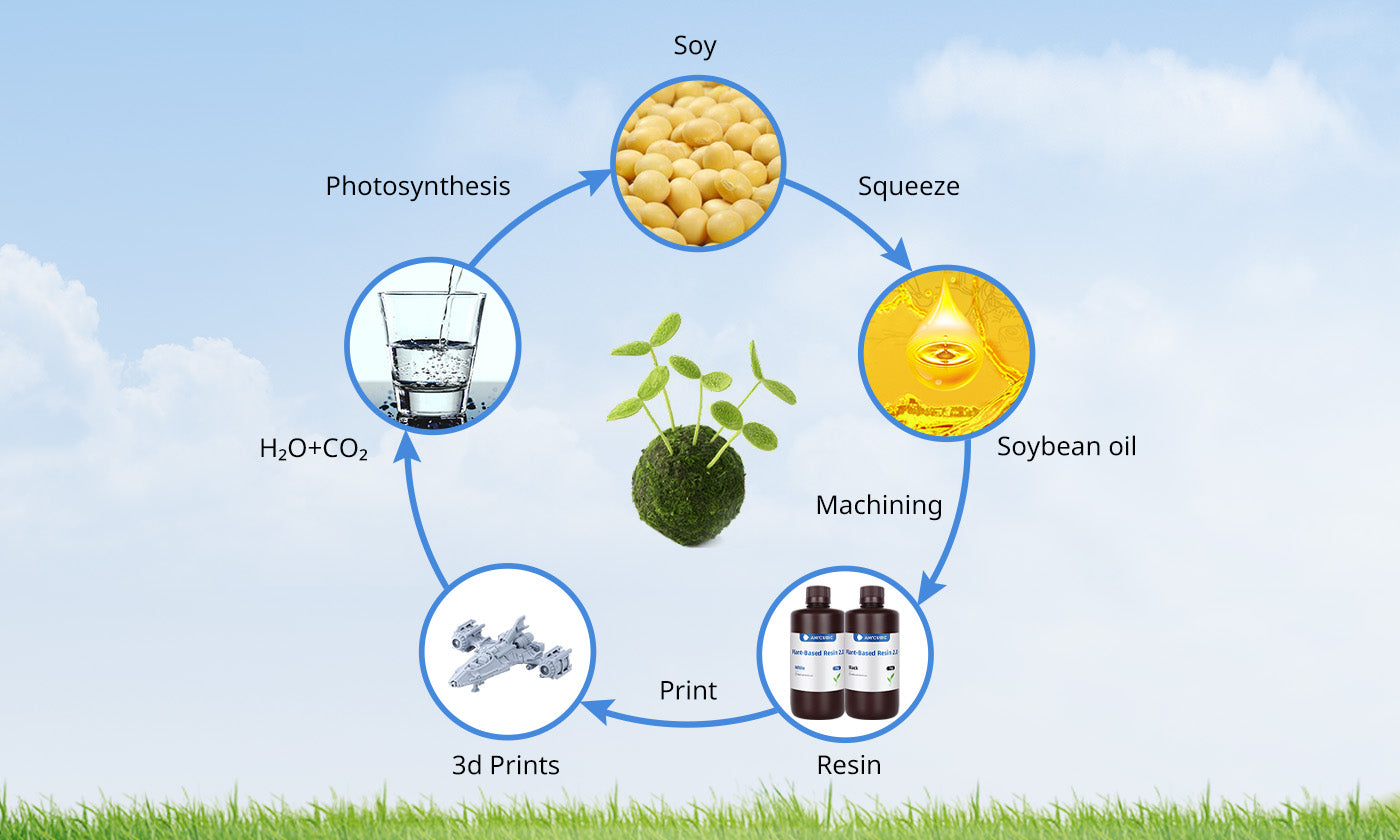

Plant-based UV Resin 2.0 made from soybean oil No VOCs
Use More Safety
Through RoHS, REACH complied with safety standard.
A Wide Compatibility
Anycubic Plant-based Resin 2.0 is compatible with most LCD/DLP 3D printers and sensitive to 355-410nm UV light, perfectly works with ANYCUBIC resin 3D printers.

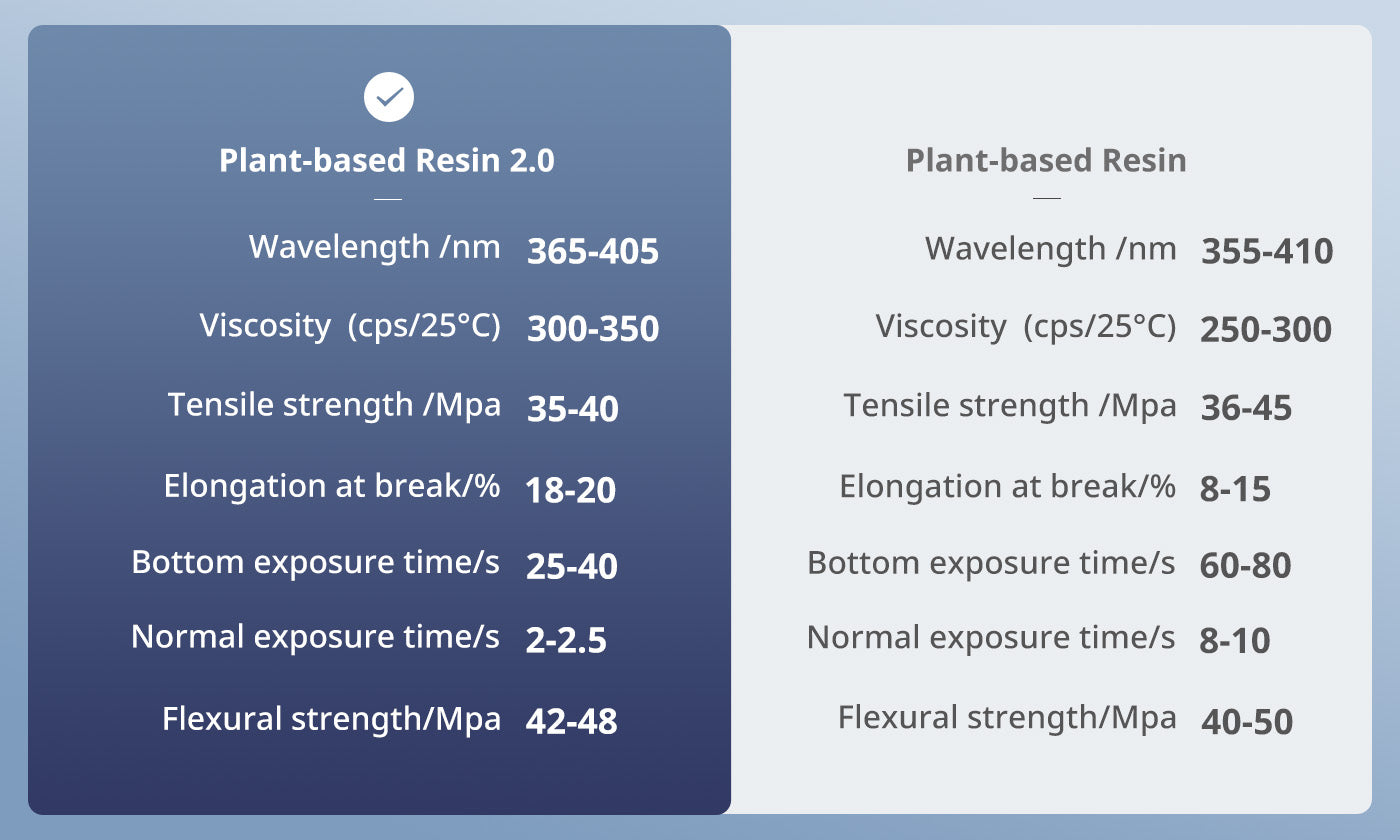

Resin Parameters

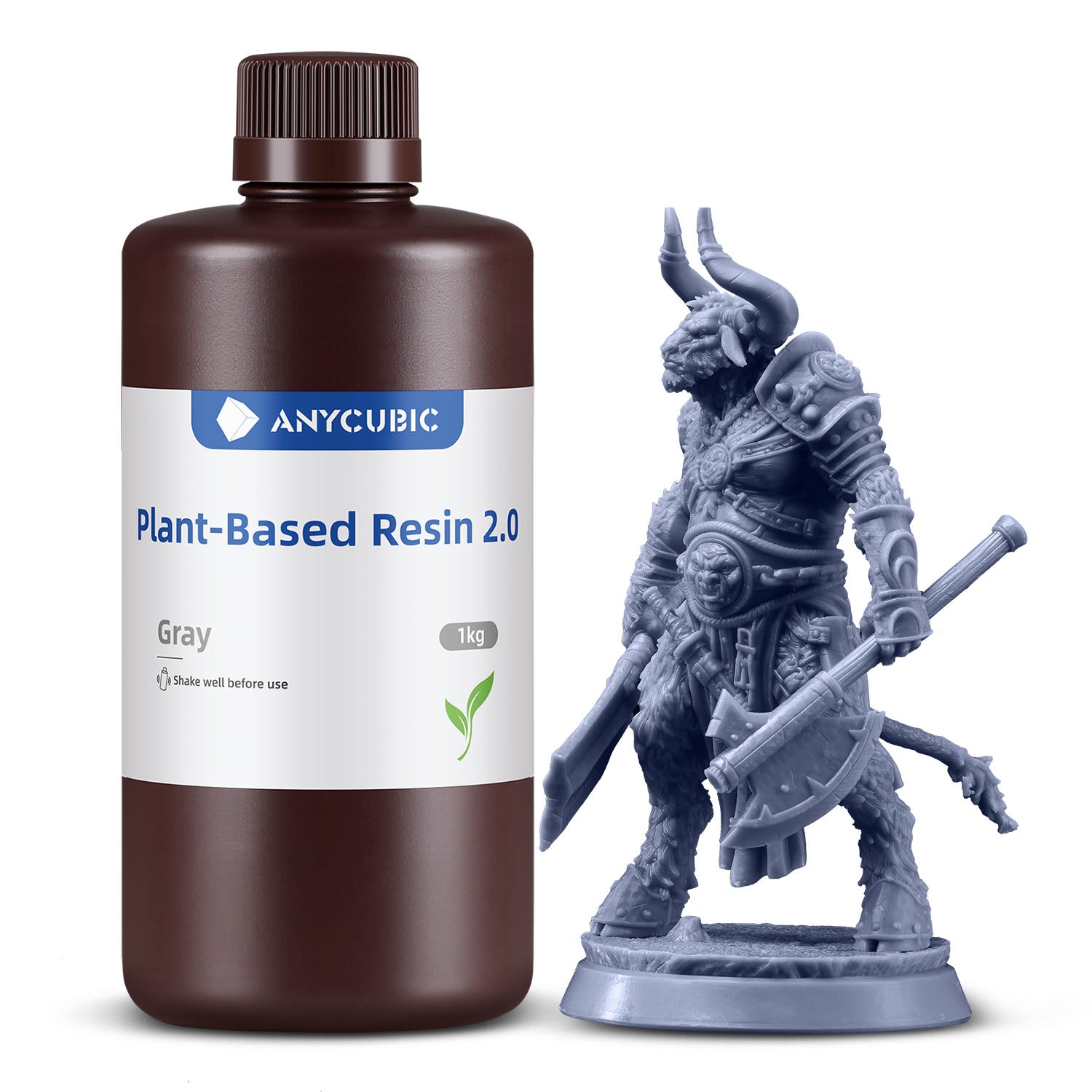

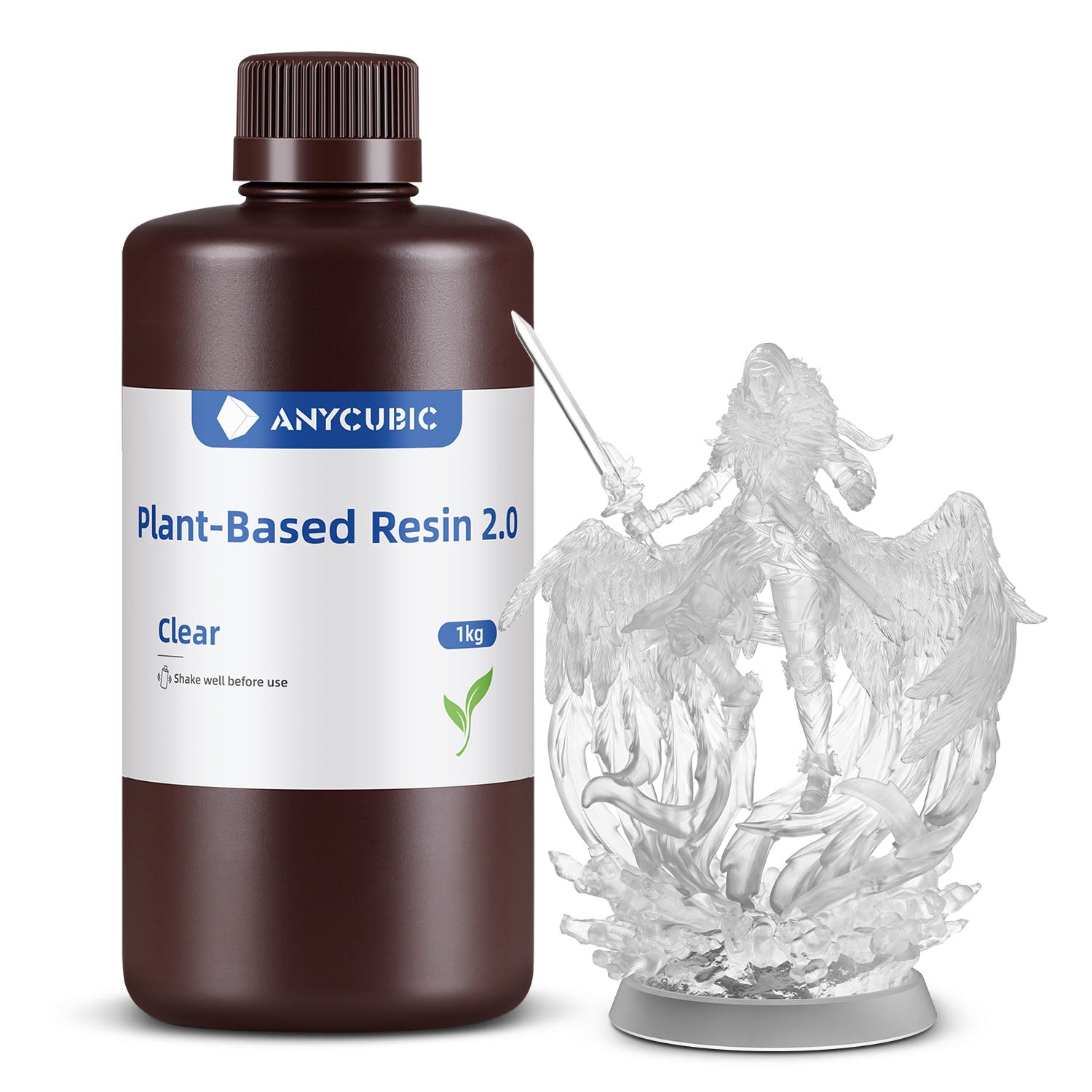

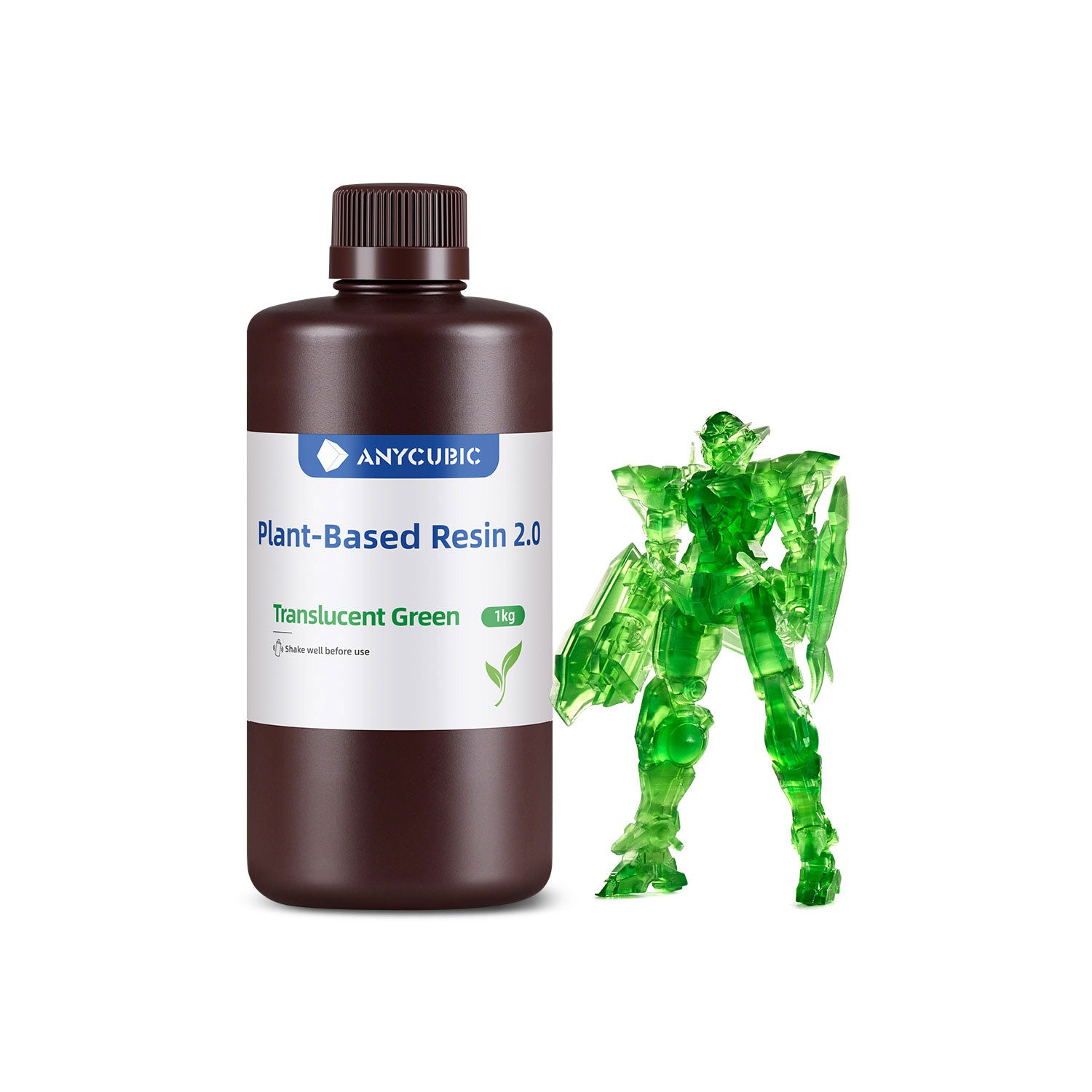

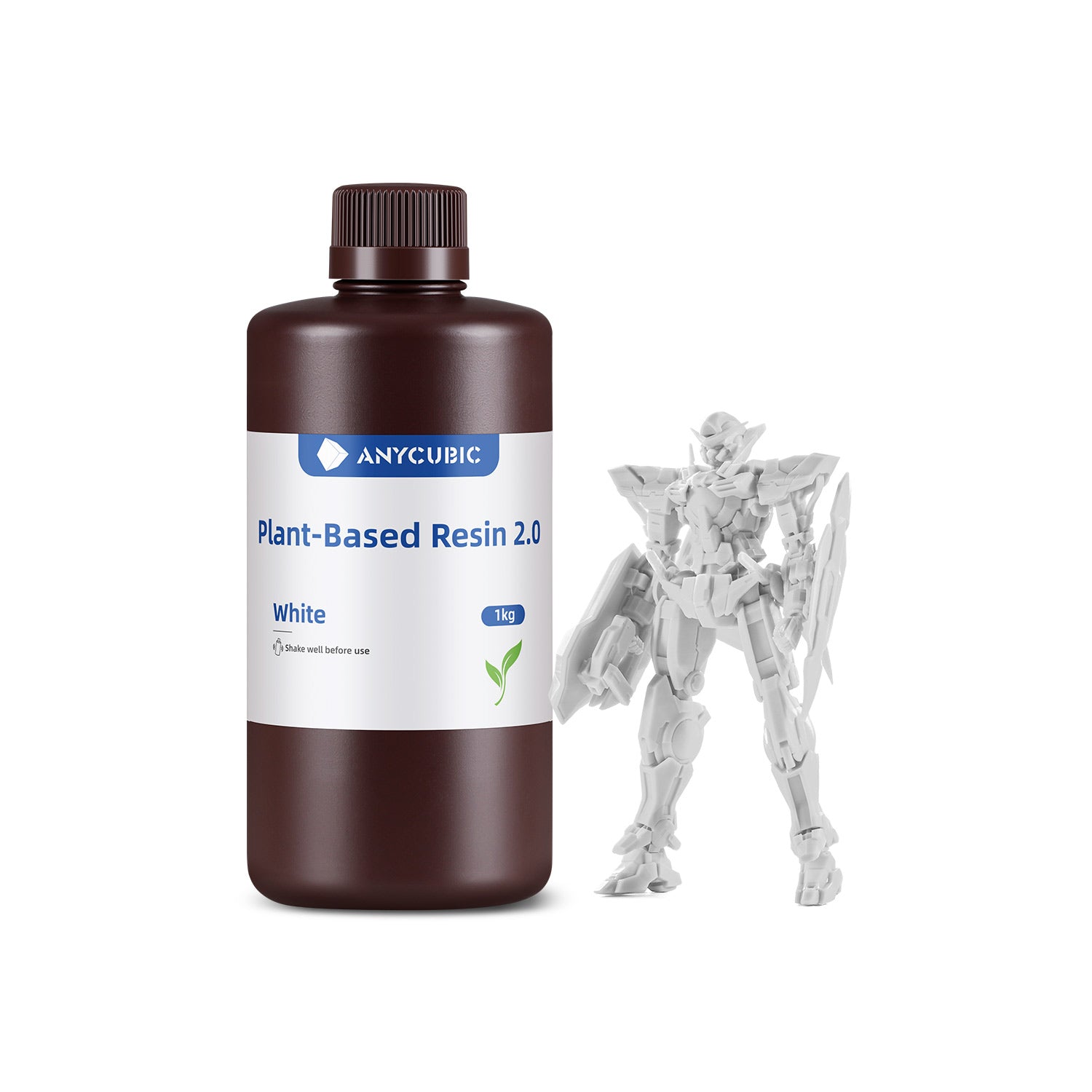

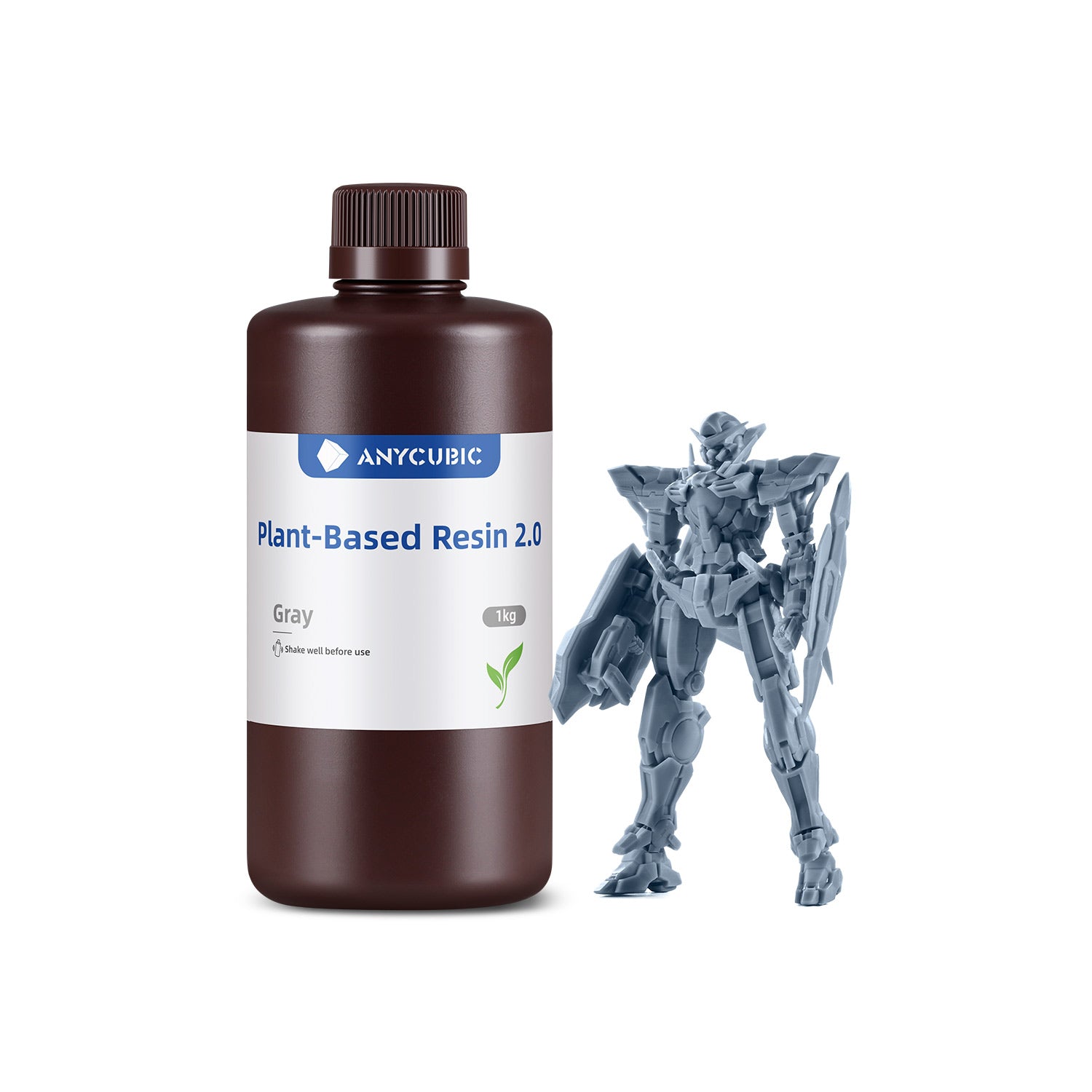

Color Type
Instructions for Use
(1) Before use:
Shake the liquid resin before use;Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.
(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements;Select the correct print parameters and settings for printing.
(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers,tweezers,containers,gloves;ethanol(≥95%),lactate or isopropyl alcohol cleaning solution;
(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then taken
out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.
Precautions
The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light to avoid high temperature or sunlight.
Suggested operating temperature is 18-35°C, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).
If the resin pigment settles, it can be used after stirring or shaking.
In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
(1) The intensity of mercury lamp or Led light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
(2)The exposure time in the sun (summer) is around 1 hour;
(3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
(4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive
material.
Ps: Material properties willvary depending on the molding equipment, post-curing method and testing equipment. For safetyinformation
please refer to the MSDS of this product. lf you encounter any problems while using, please feel free to contact us.
