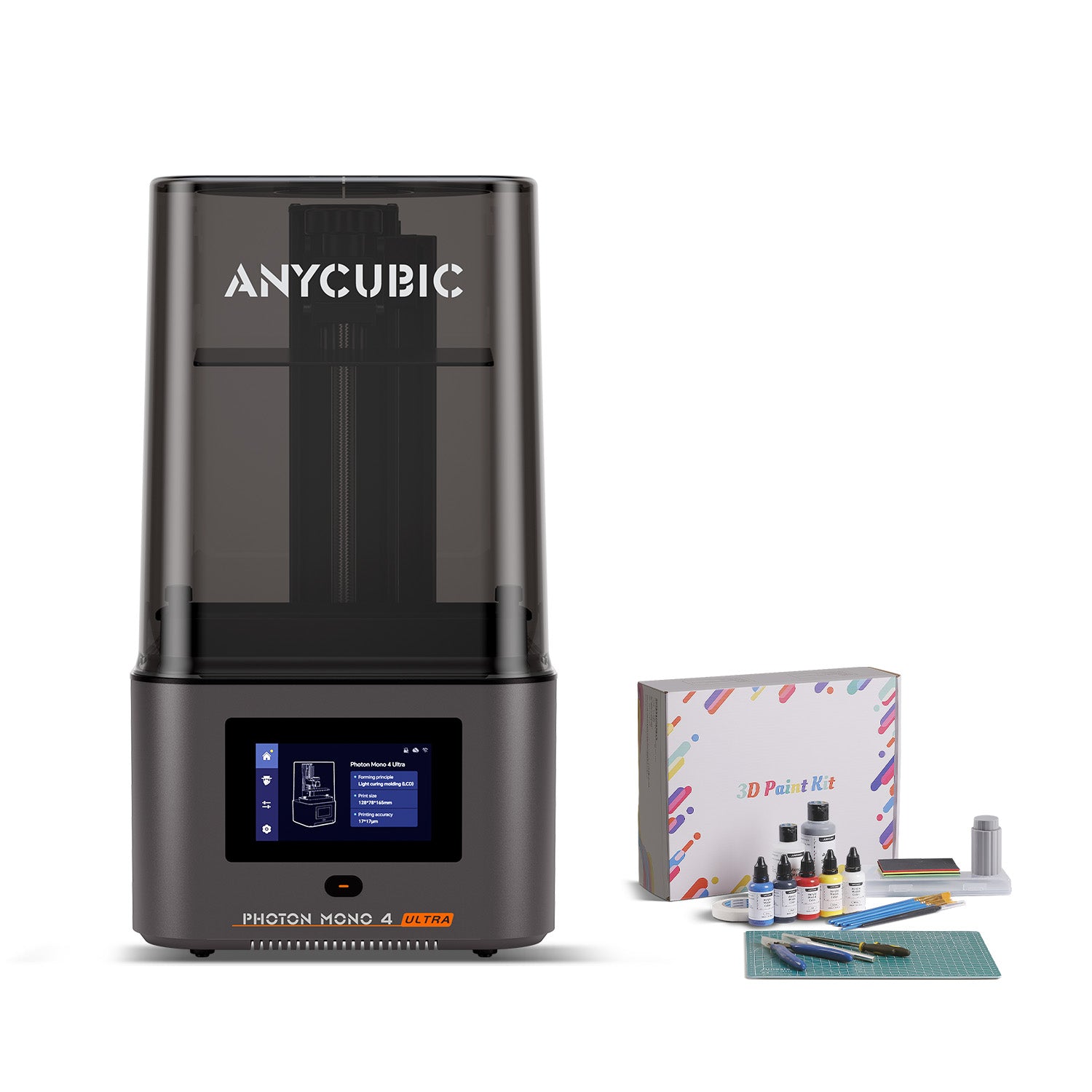

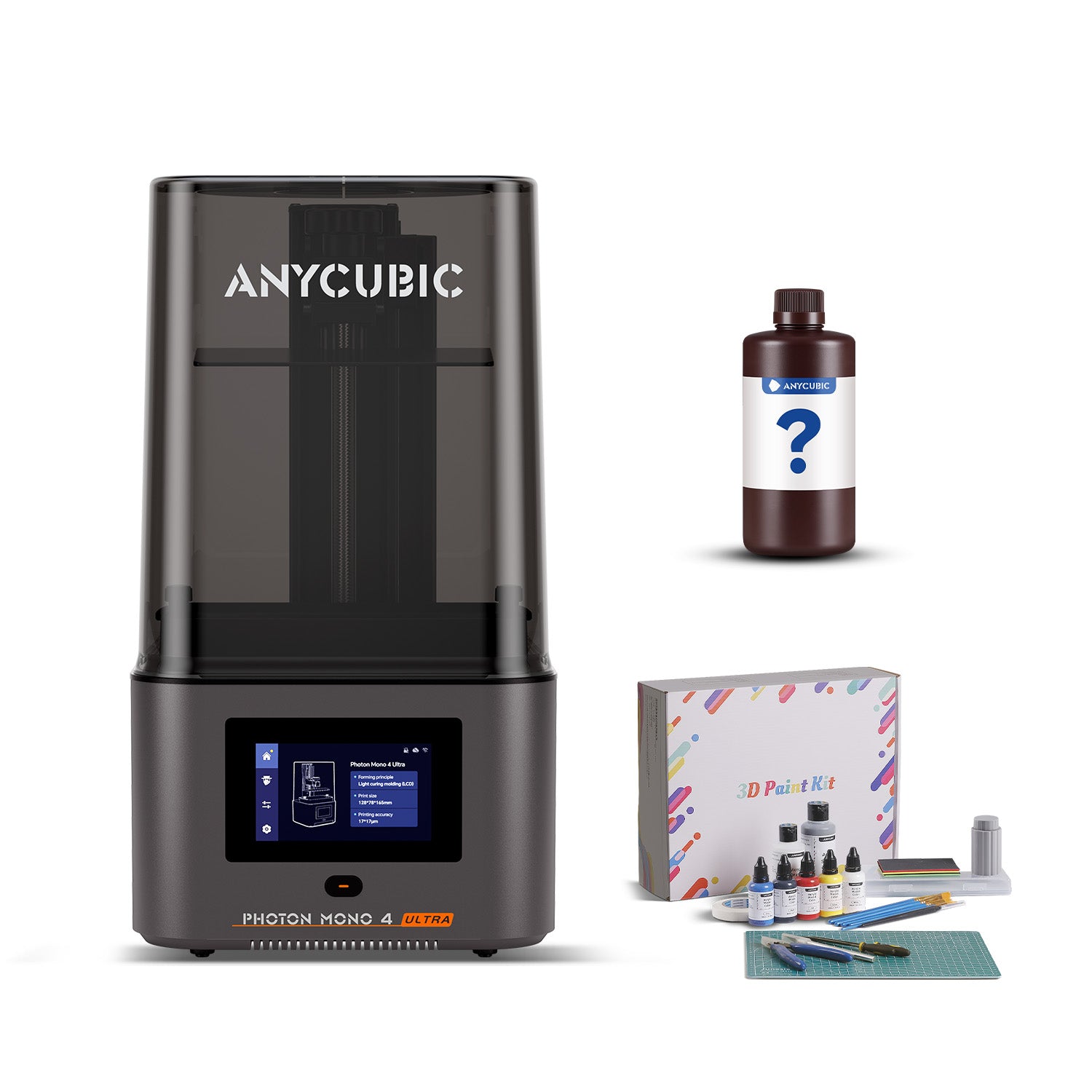

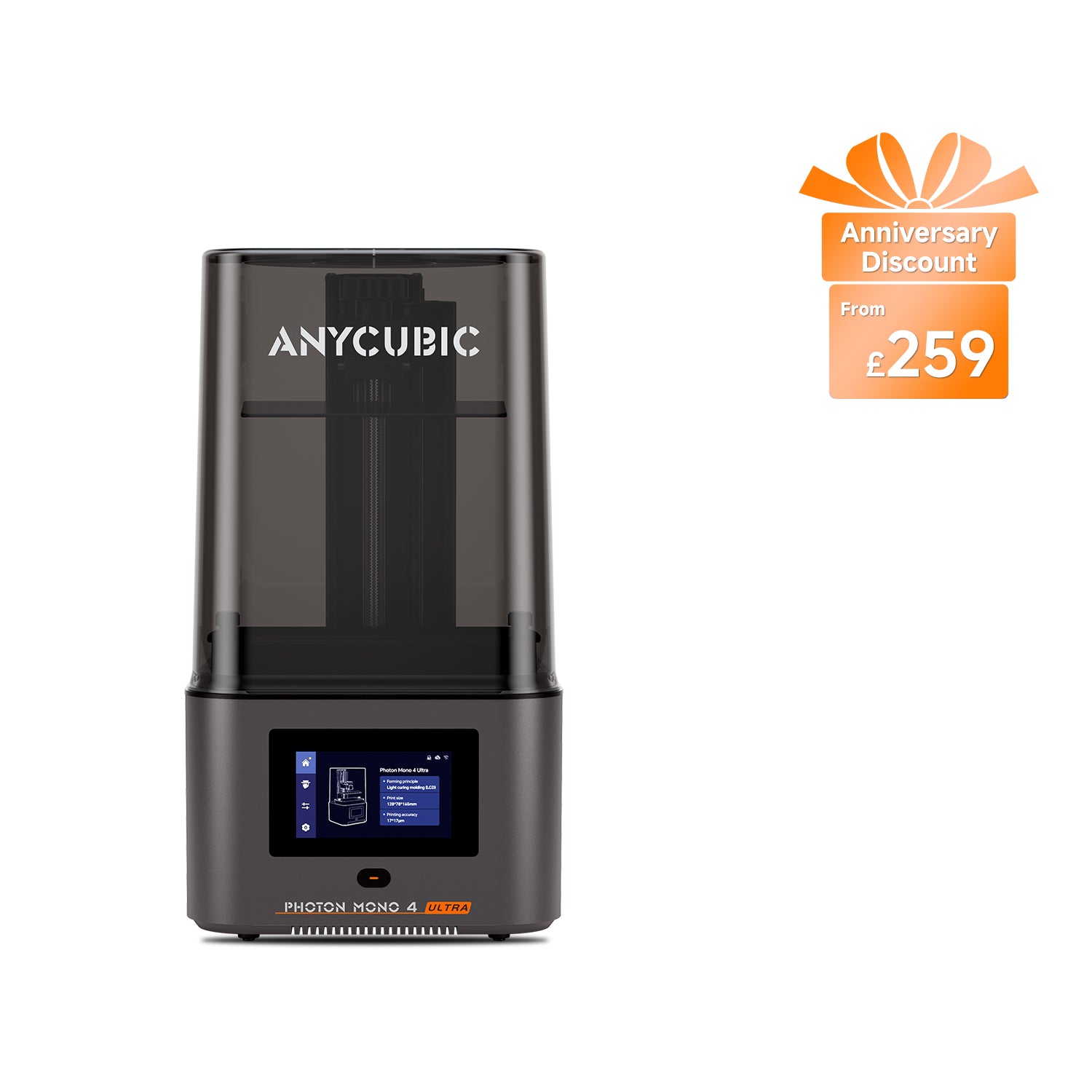

Anycubic Photon Mono 4 Ultra

£229.00
£269.00 £229.00
-15%
Shipping calculated at checkout.

Product Features
● 7'' 10K screen (9024x5120 resolution) with 17x17μm pixel size
● Advanced COB Light Source and Fresnel Lens
● Intelligence Assisted Printing System
● Faster Printing: 0.1mm at max. 120mm/h with High Speed Resin 2.0
🎁 Pre-Sale Alert: Price From £229
⏰ Save £40 + Bonus STL Files*2!

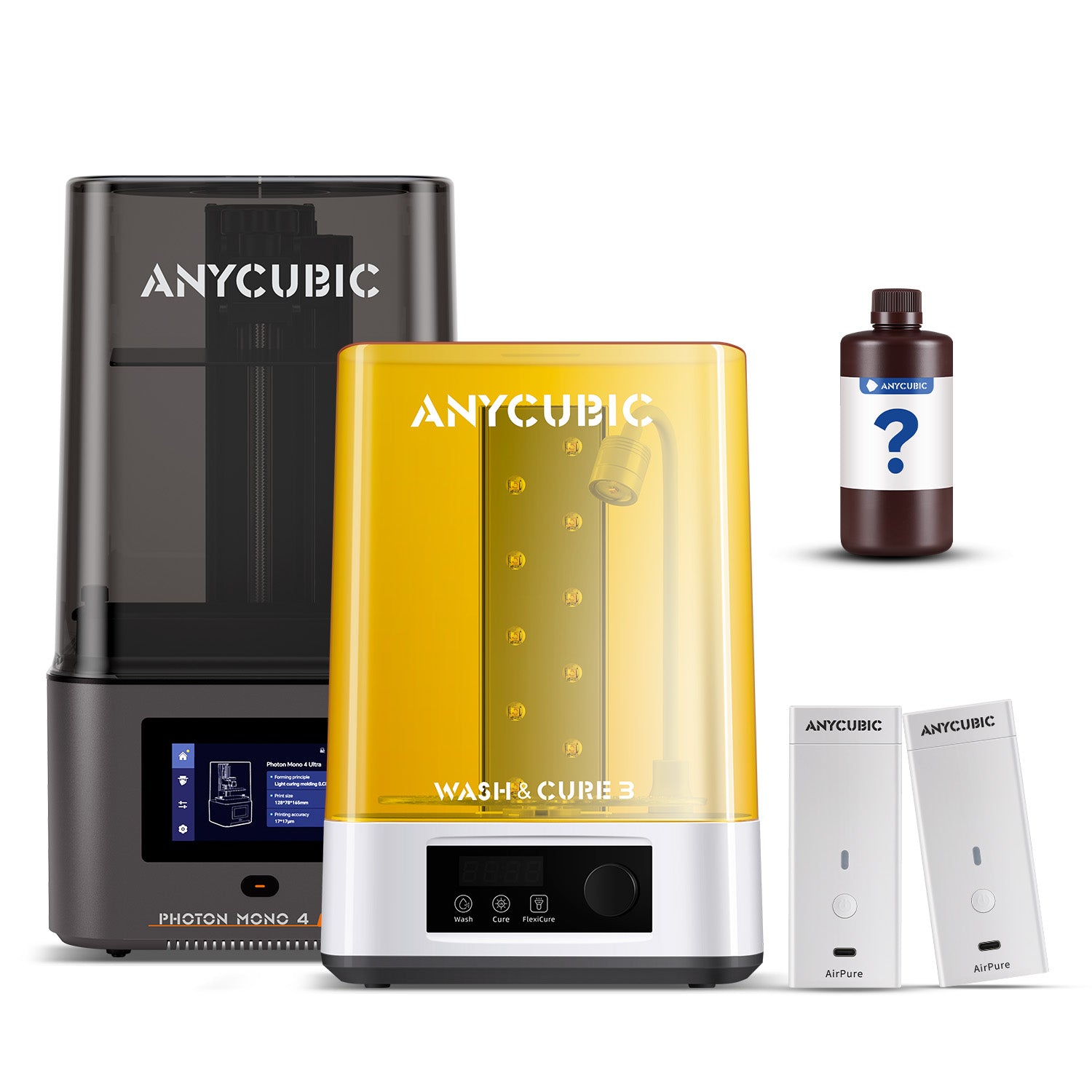

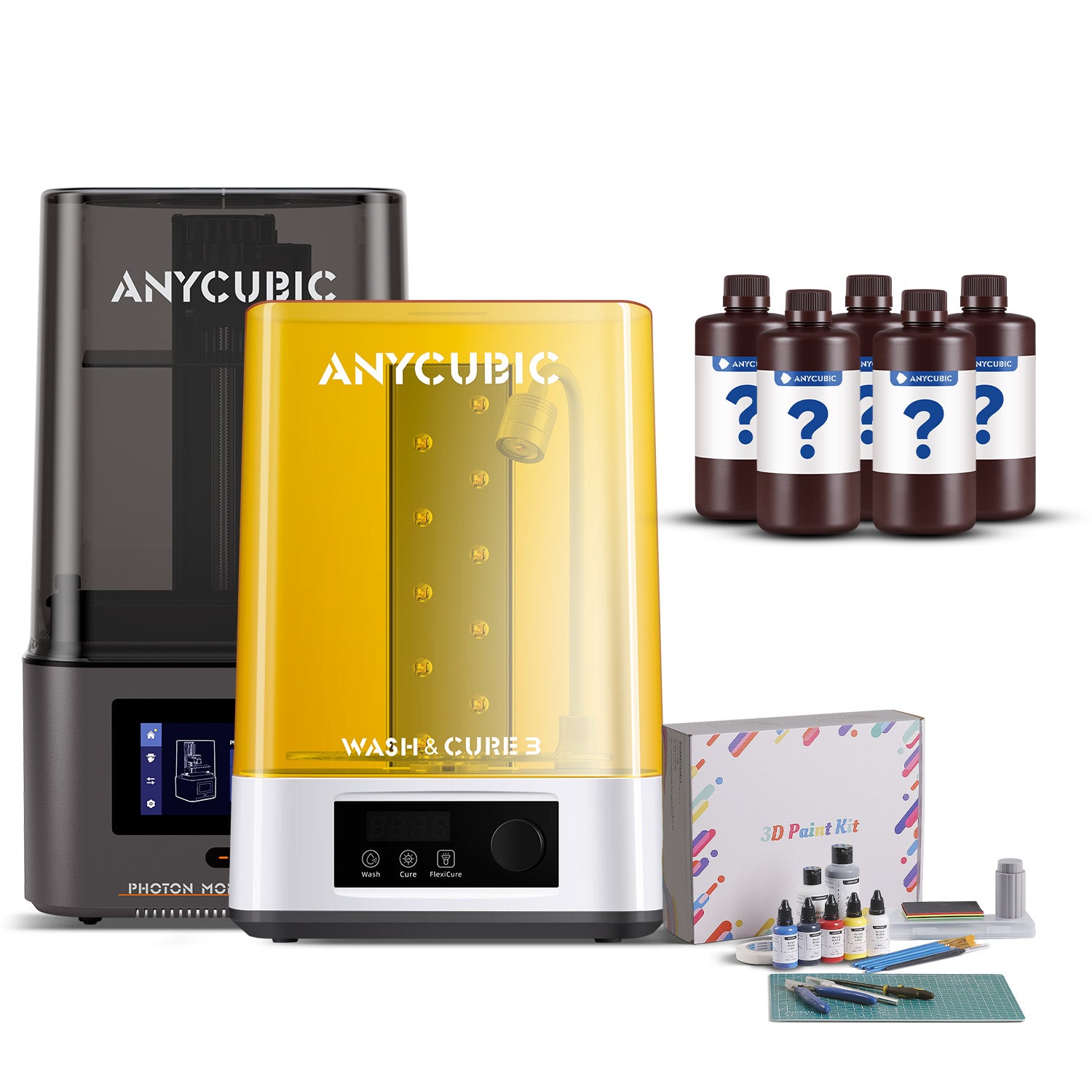

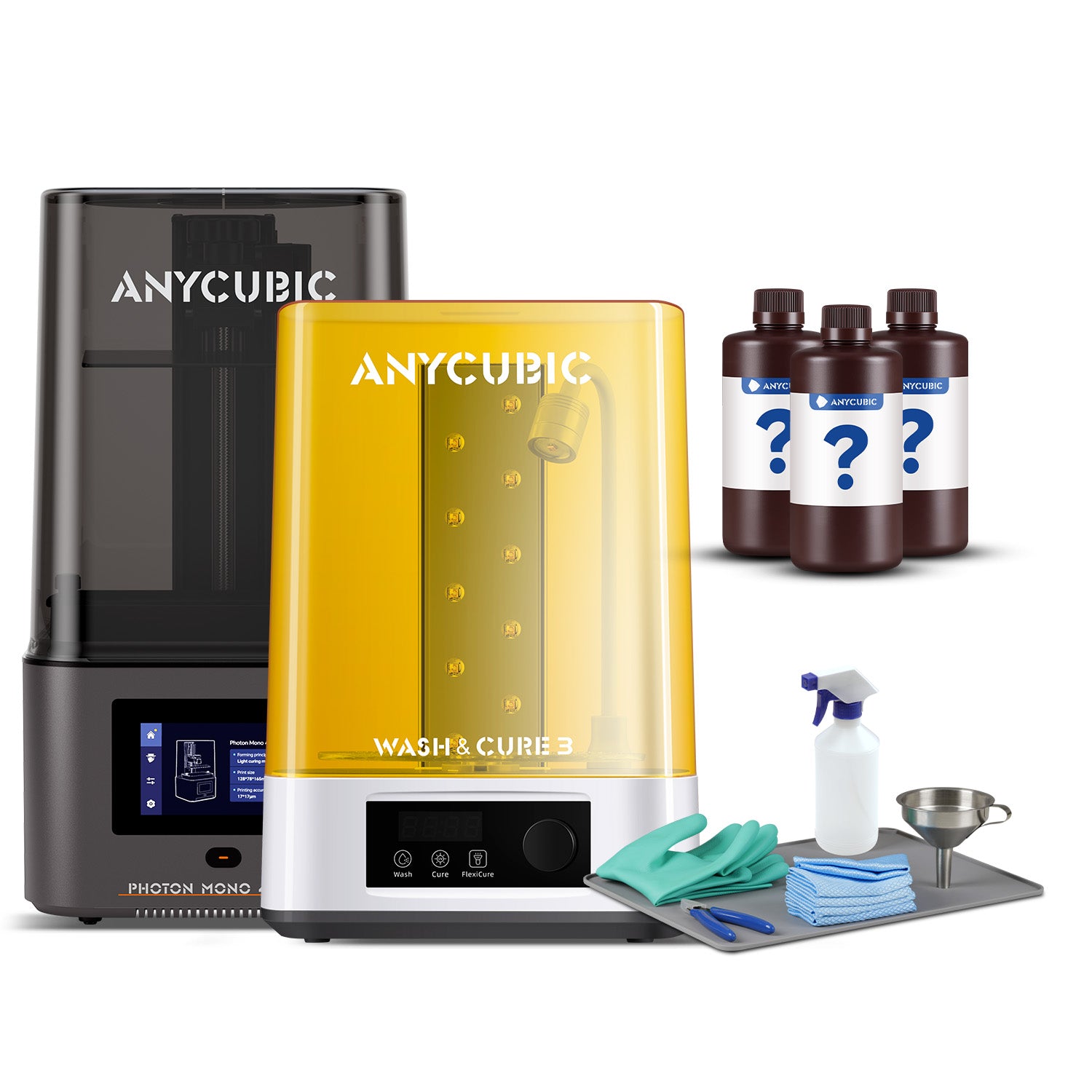

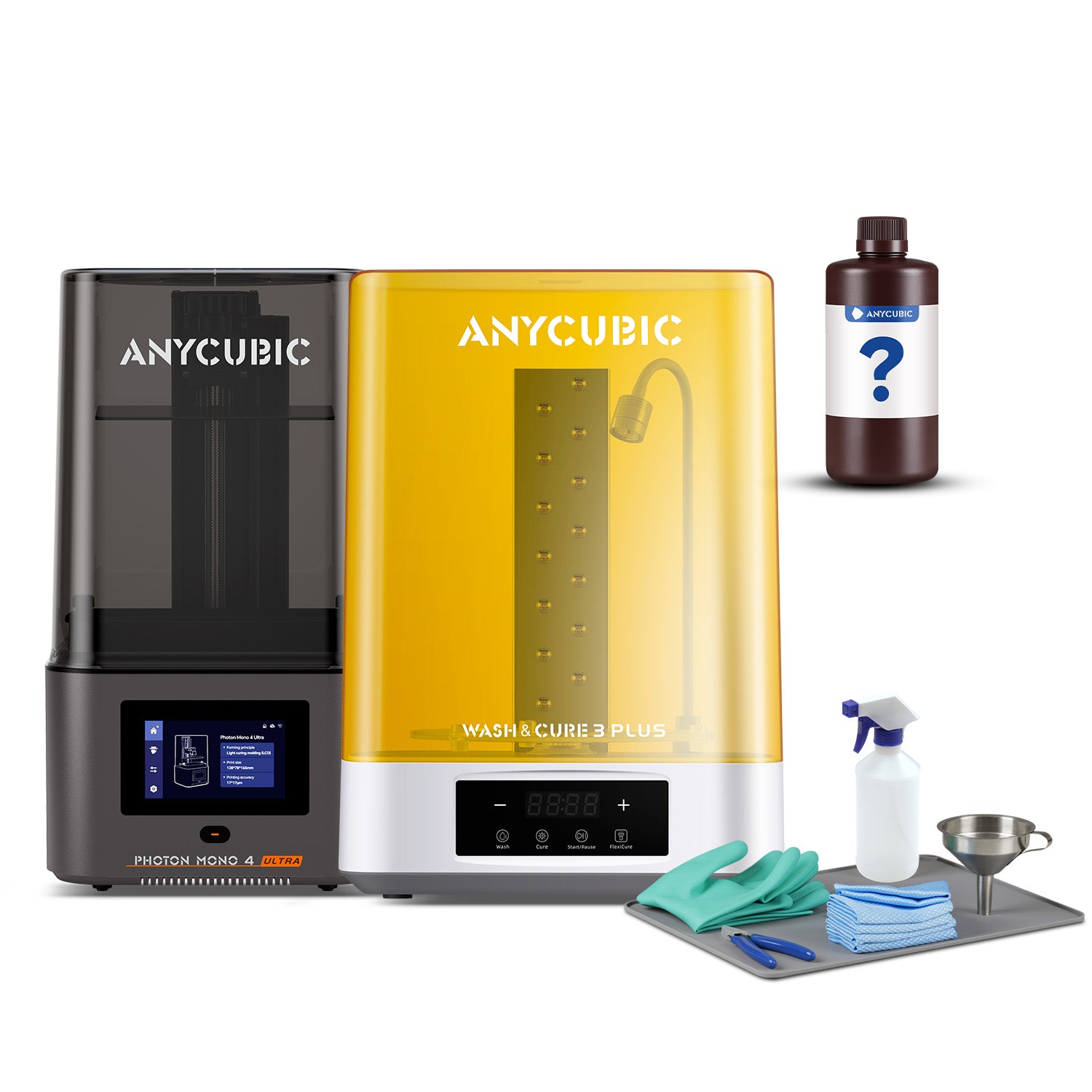

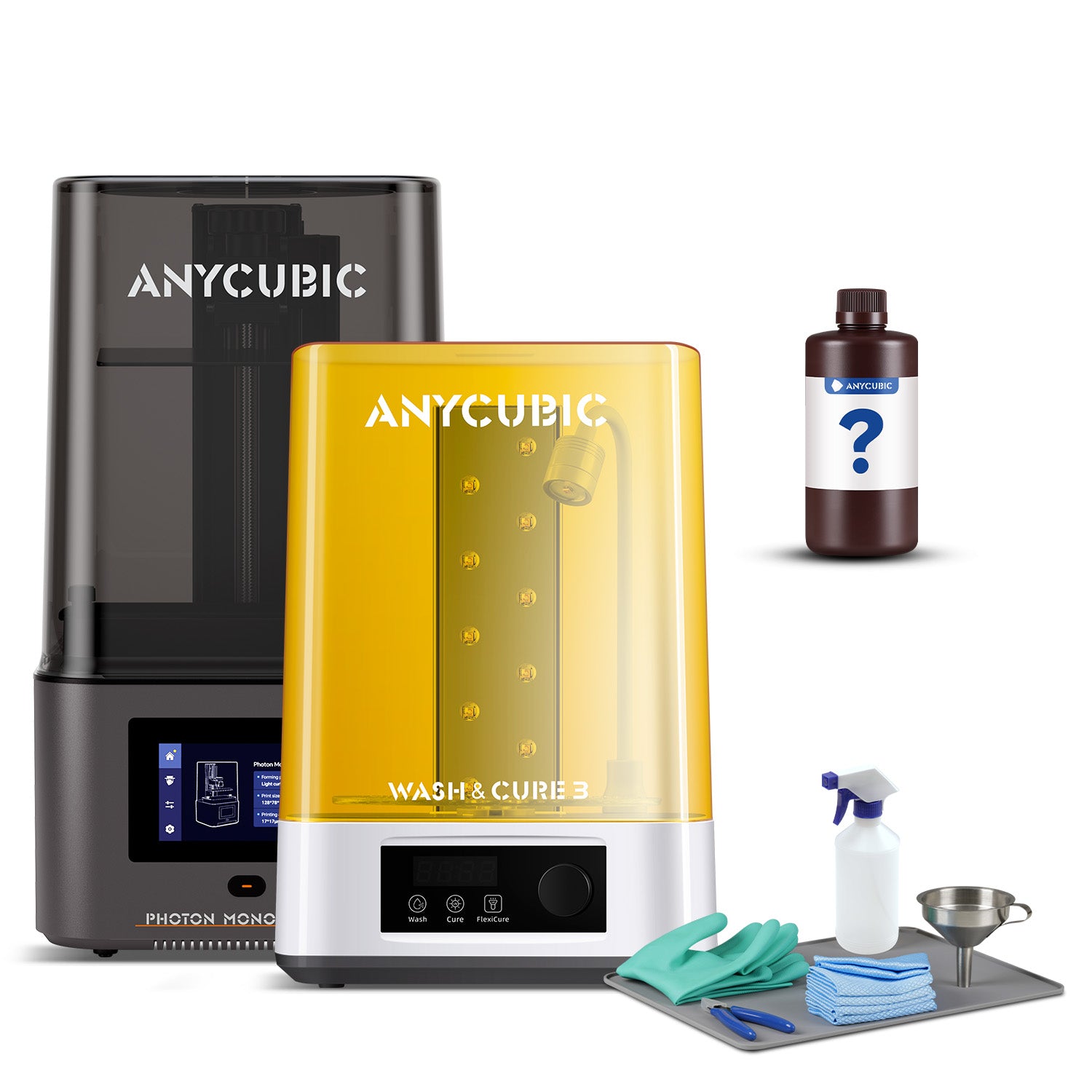

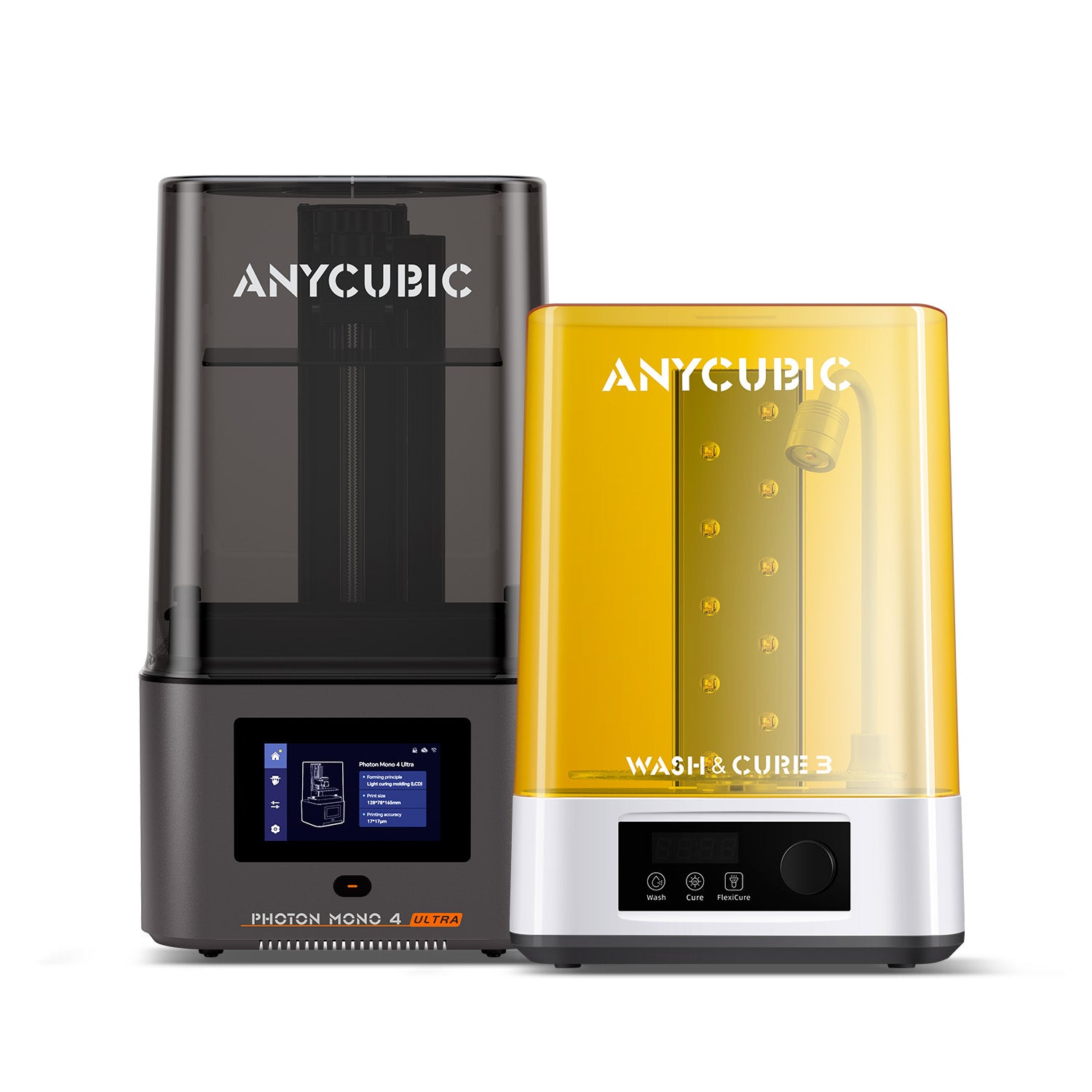

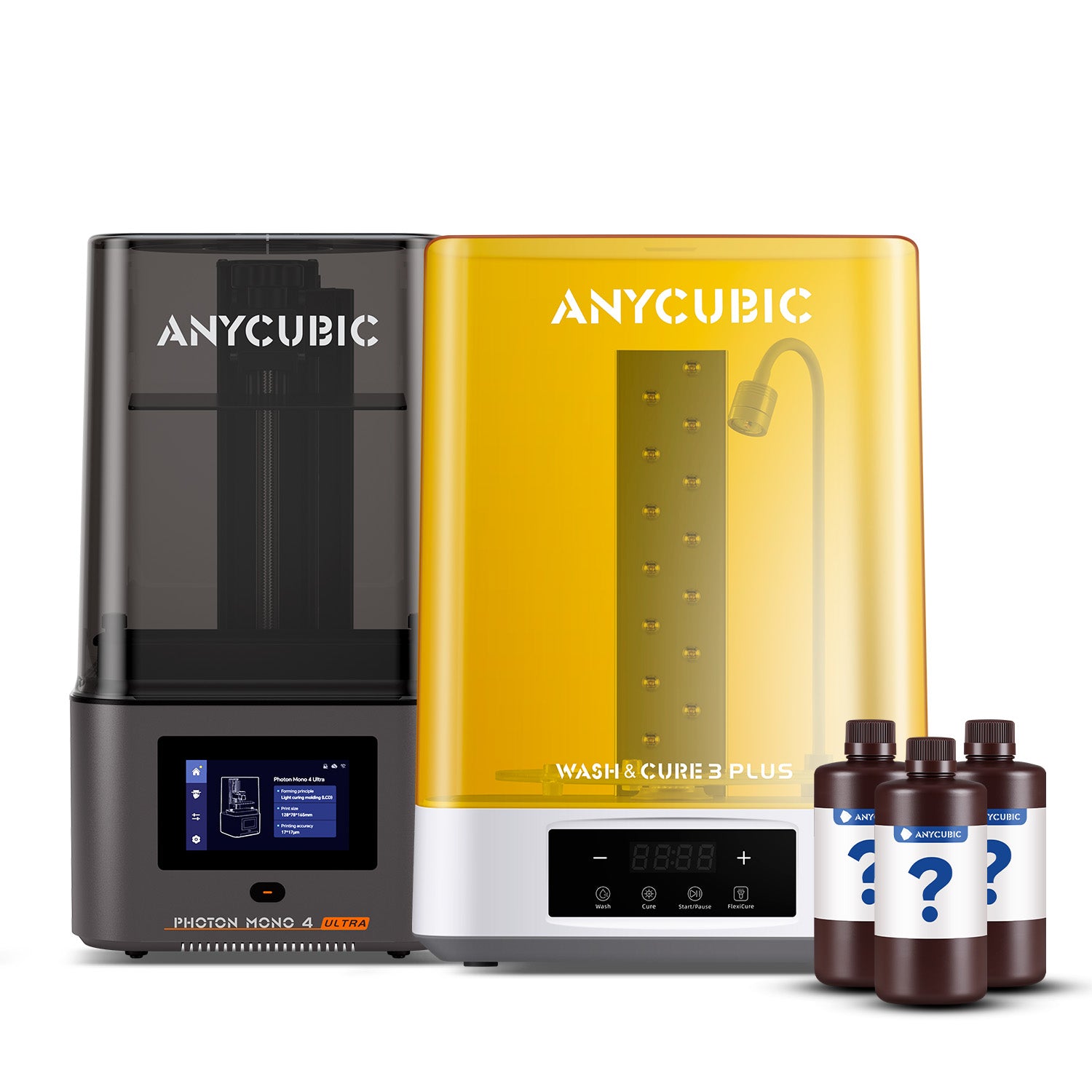

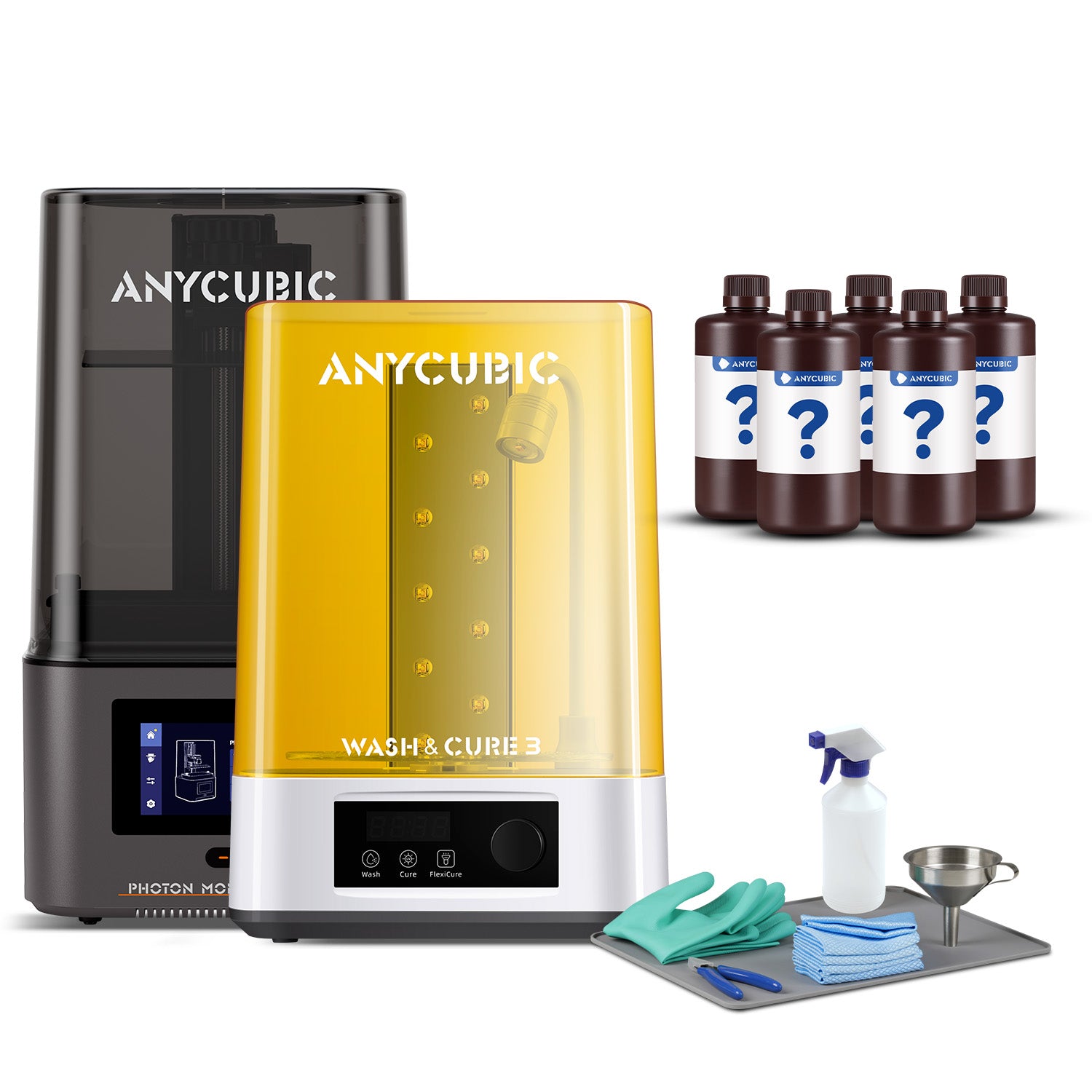

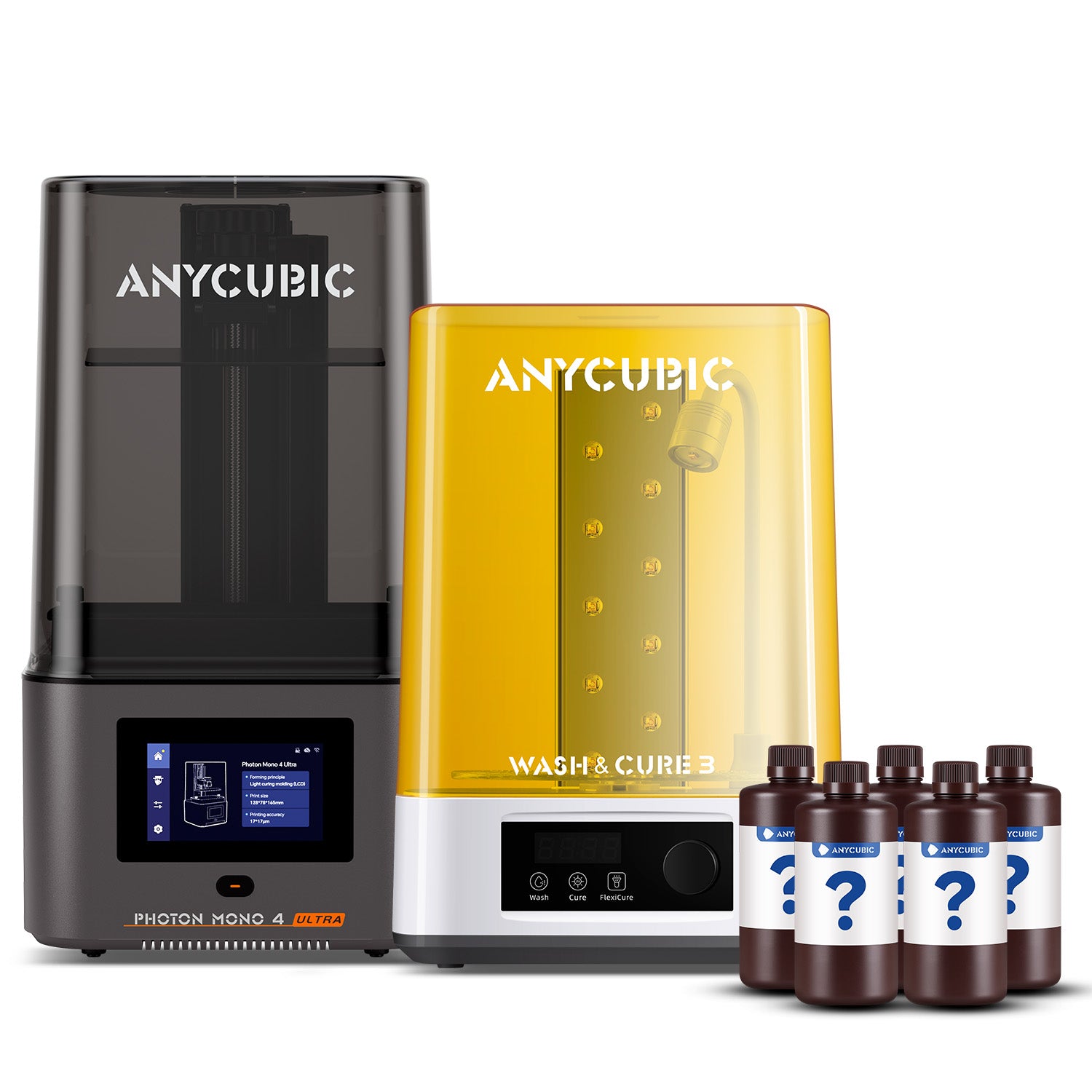

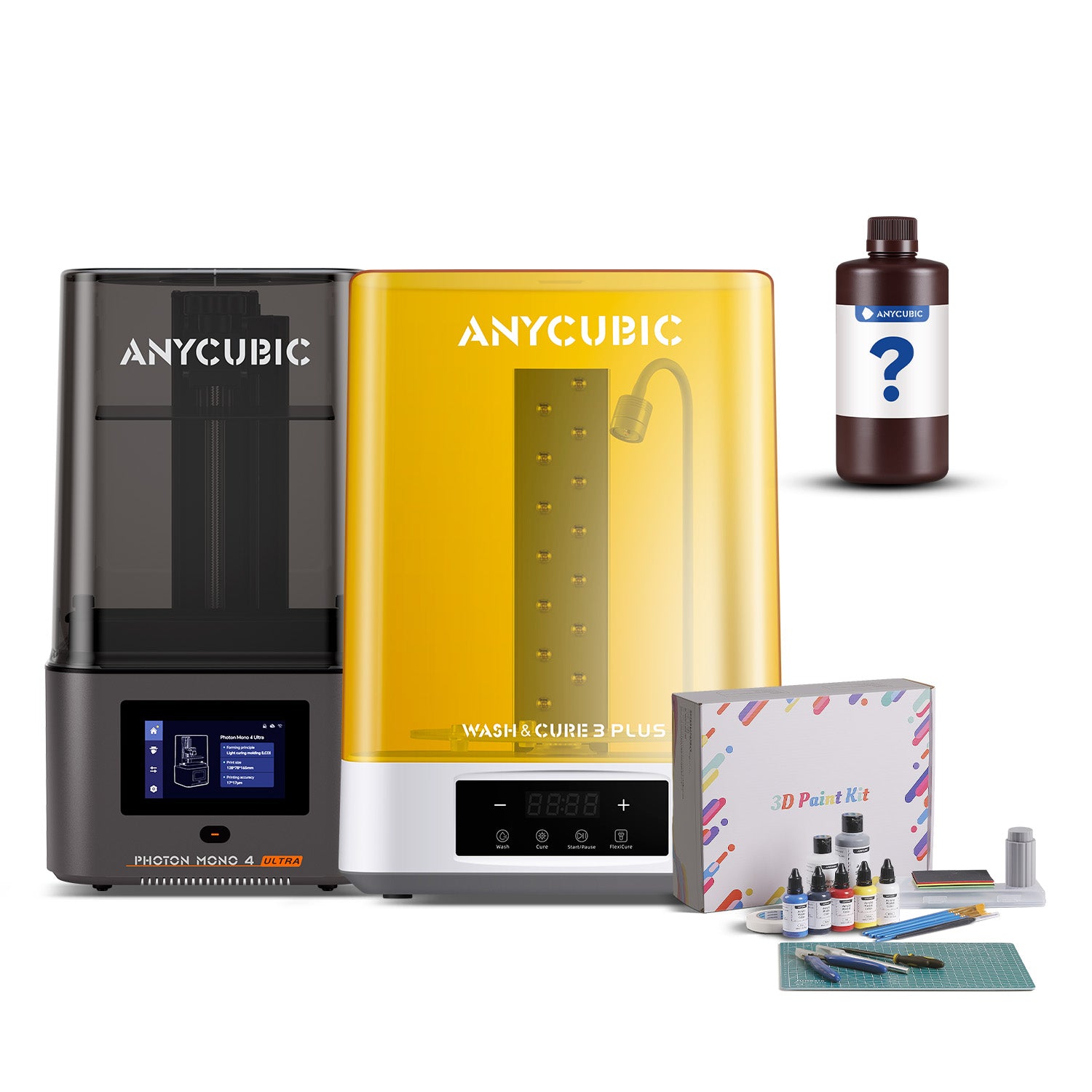

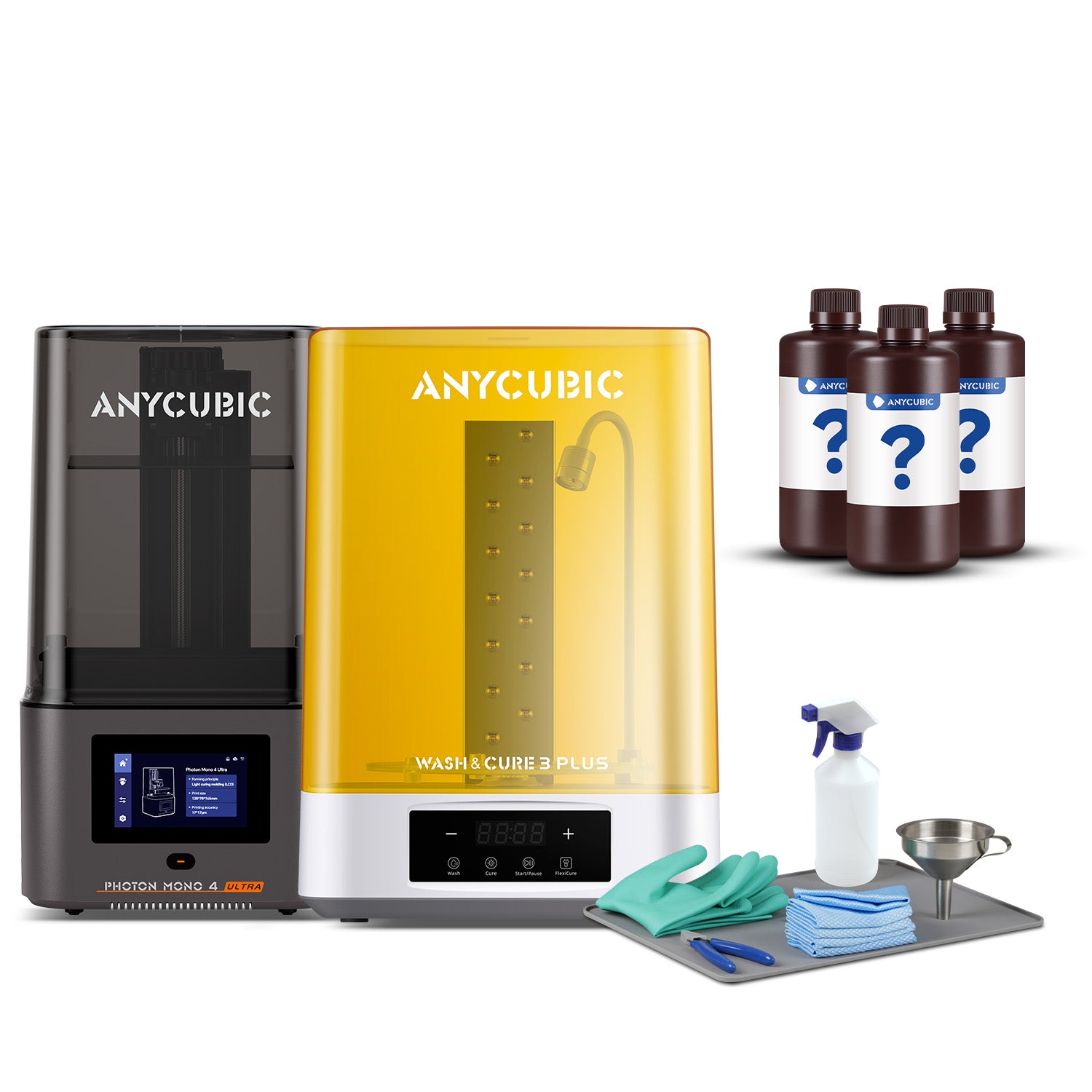

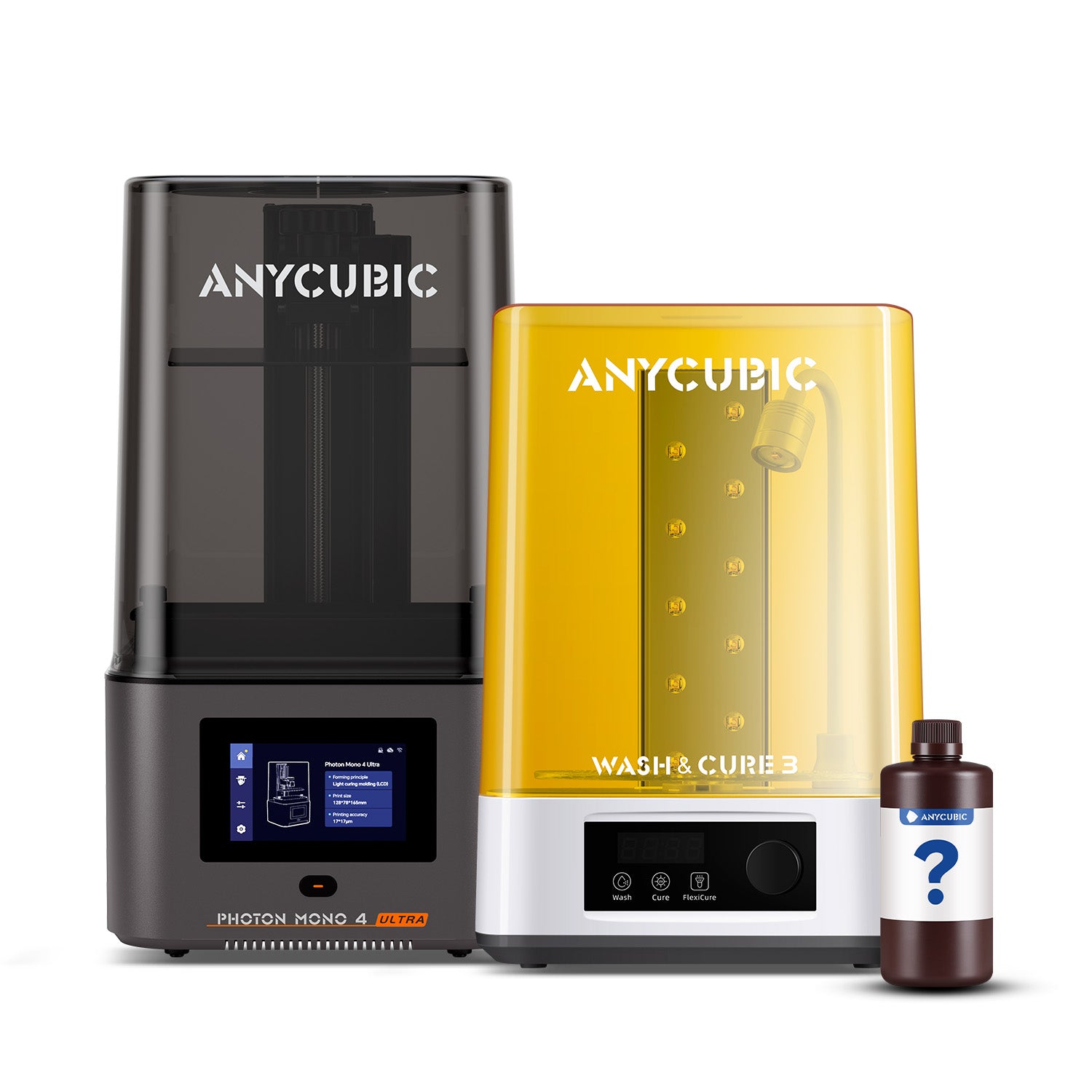

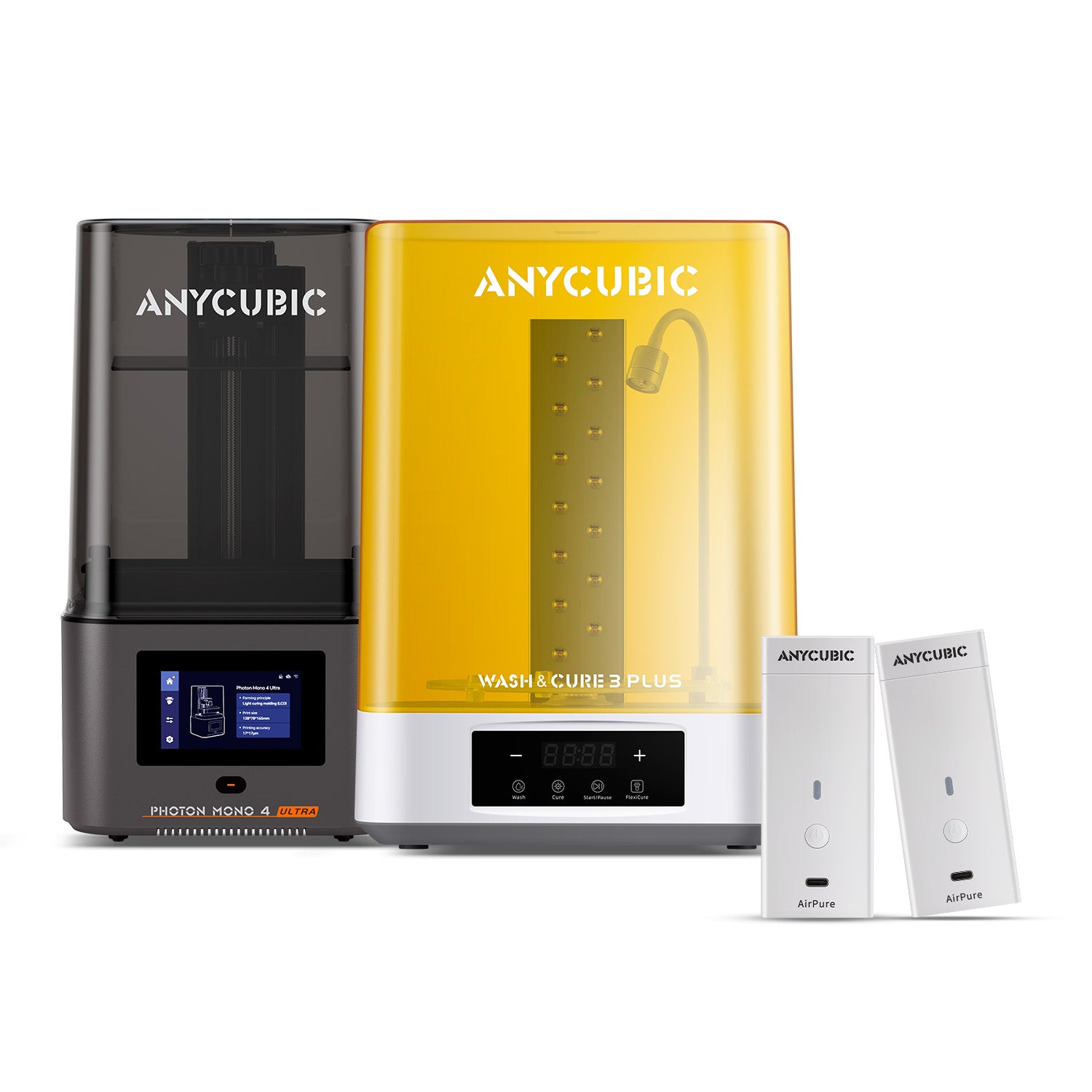

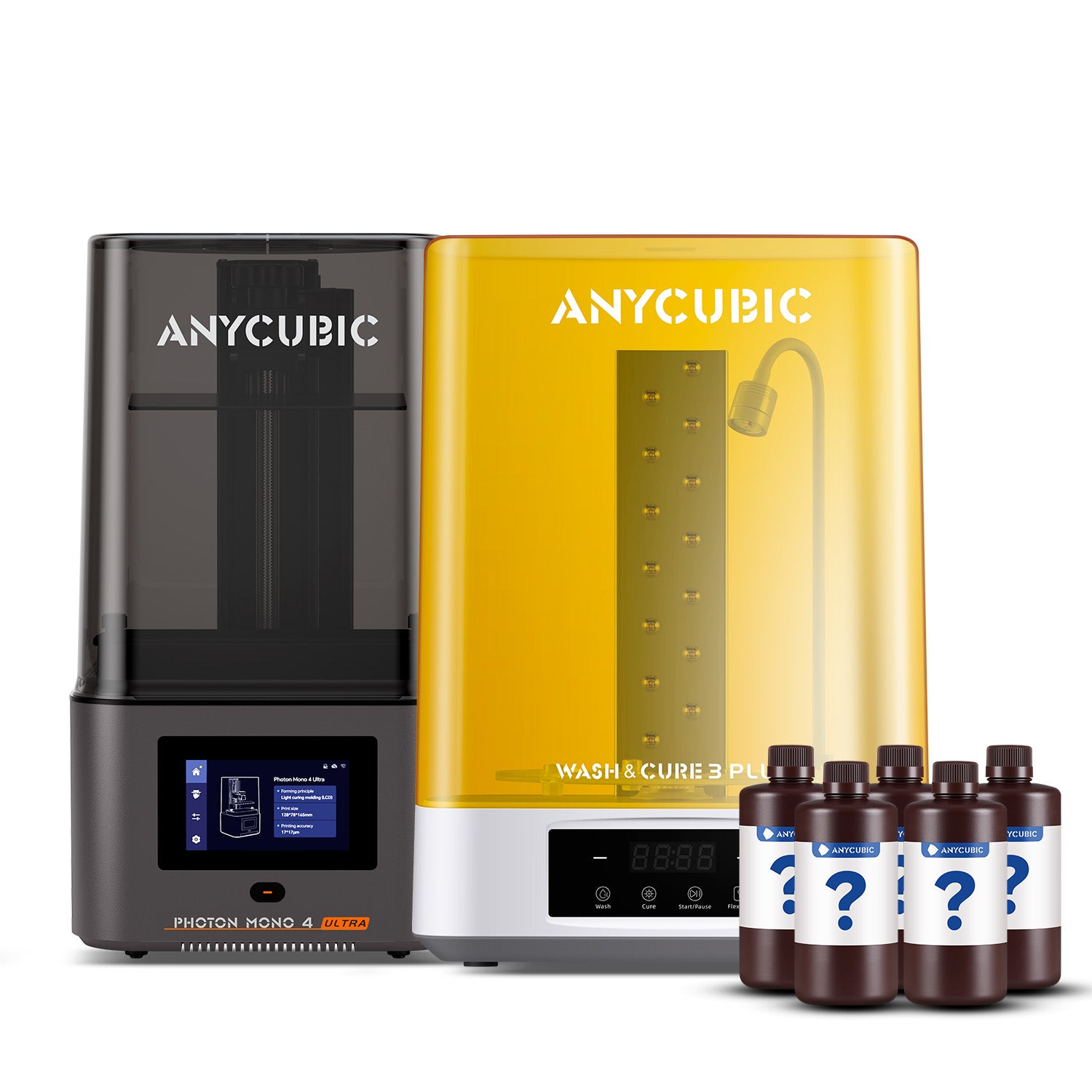

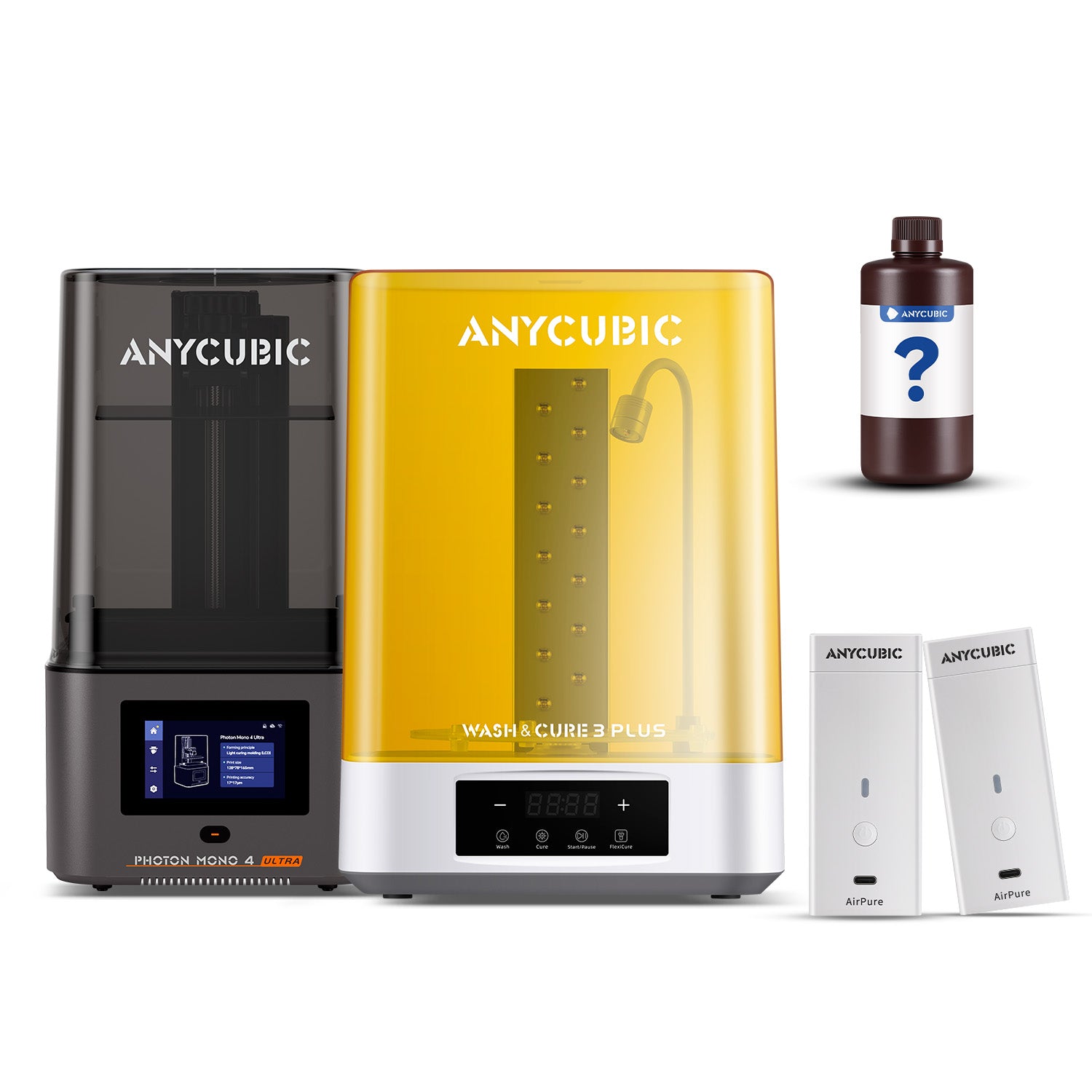

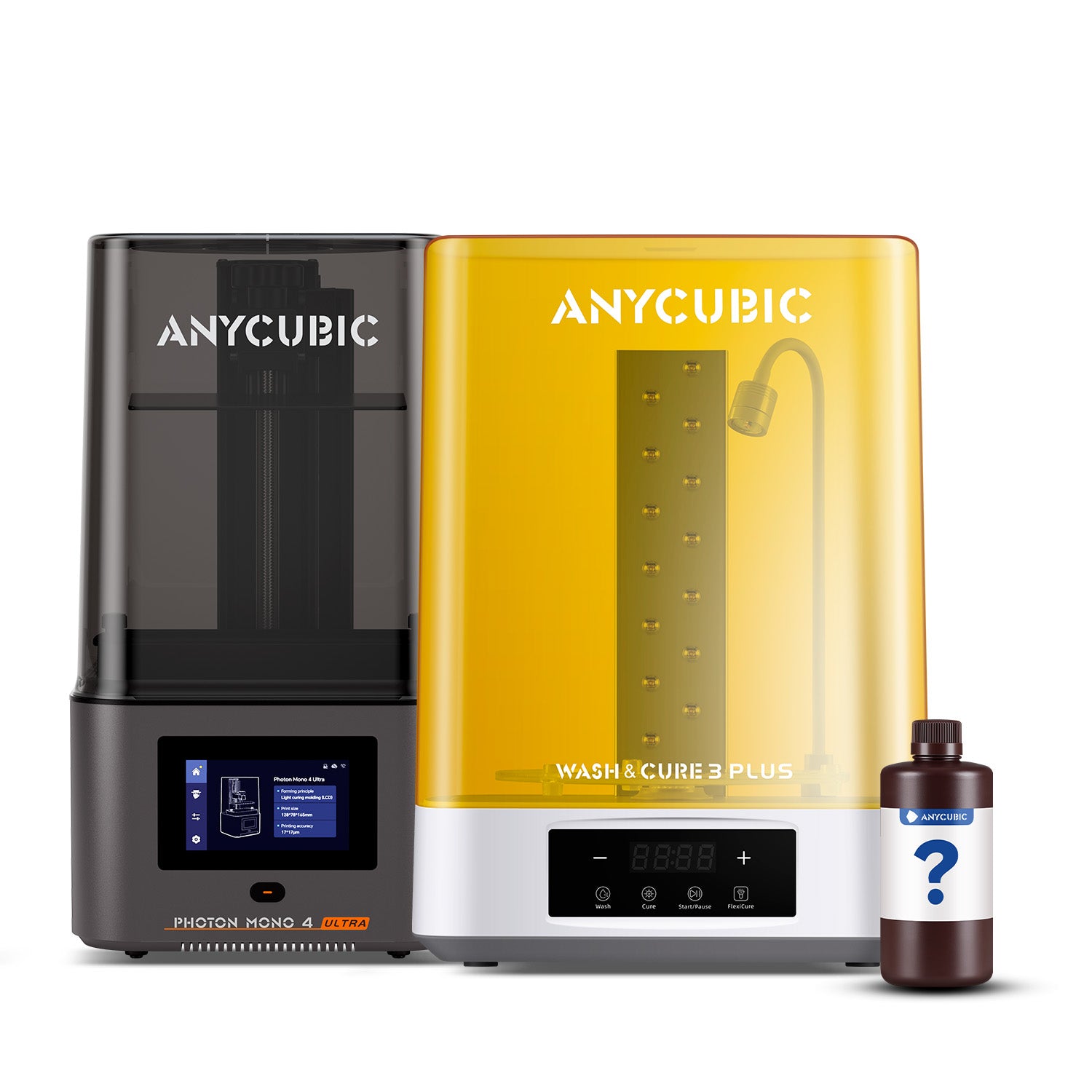

Include Wash&Cure Machine: None

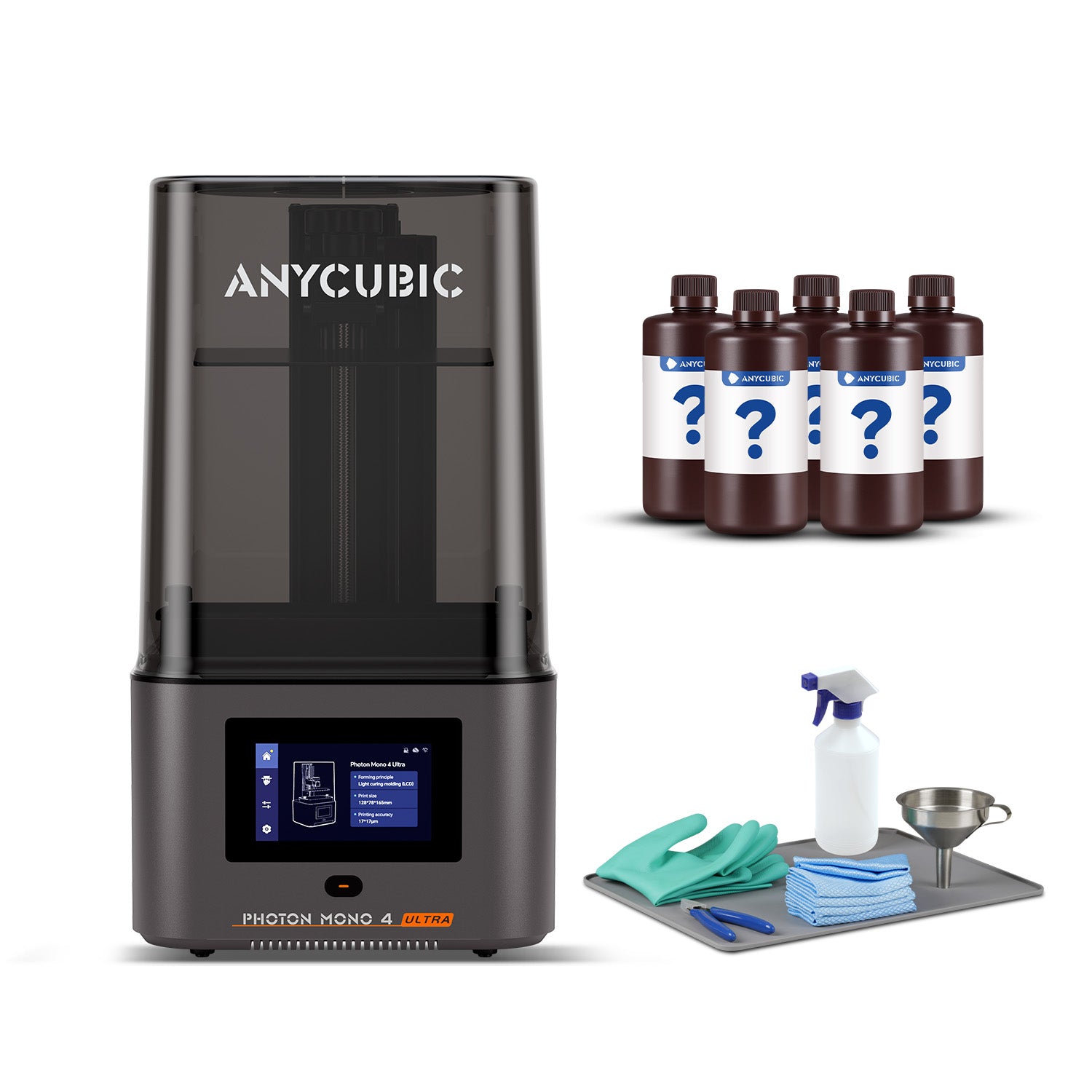

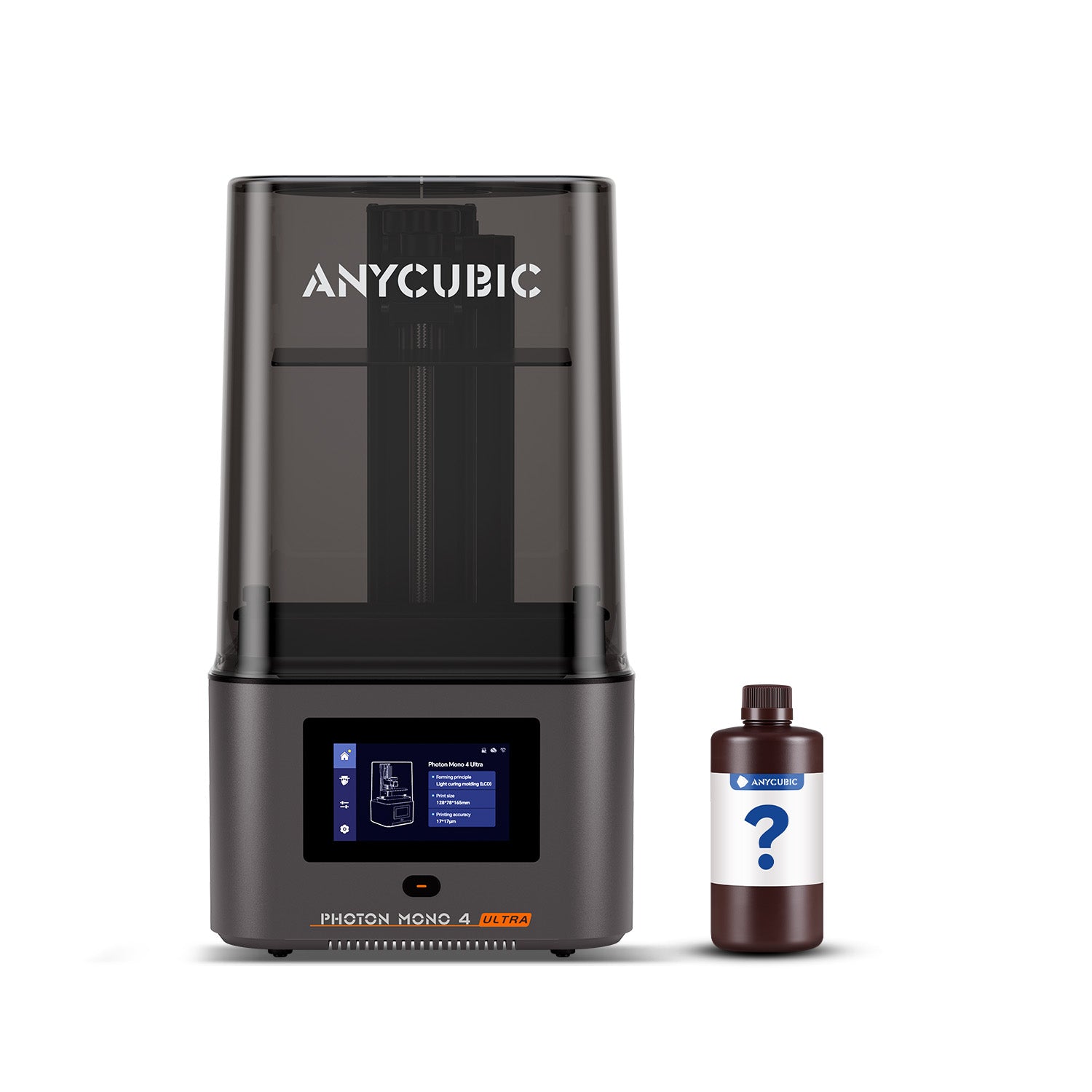

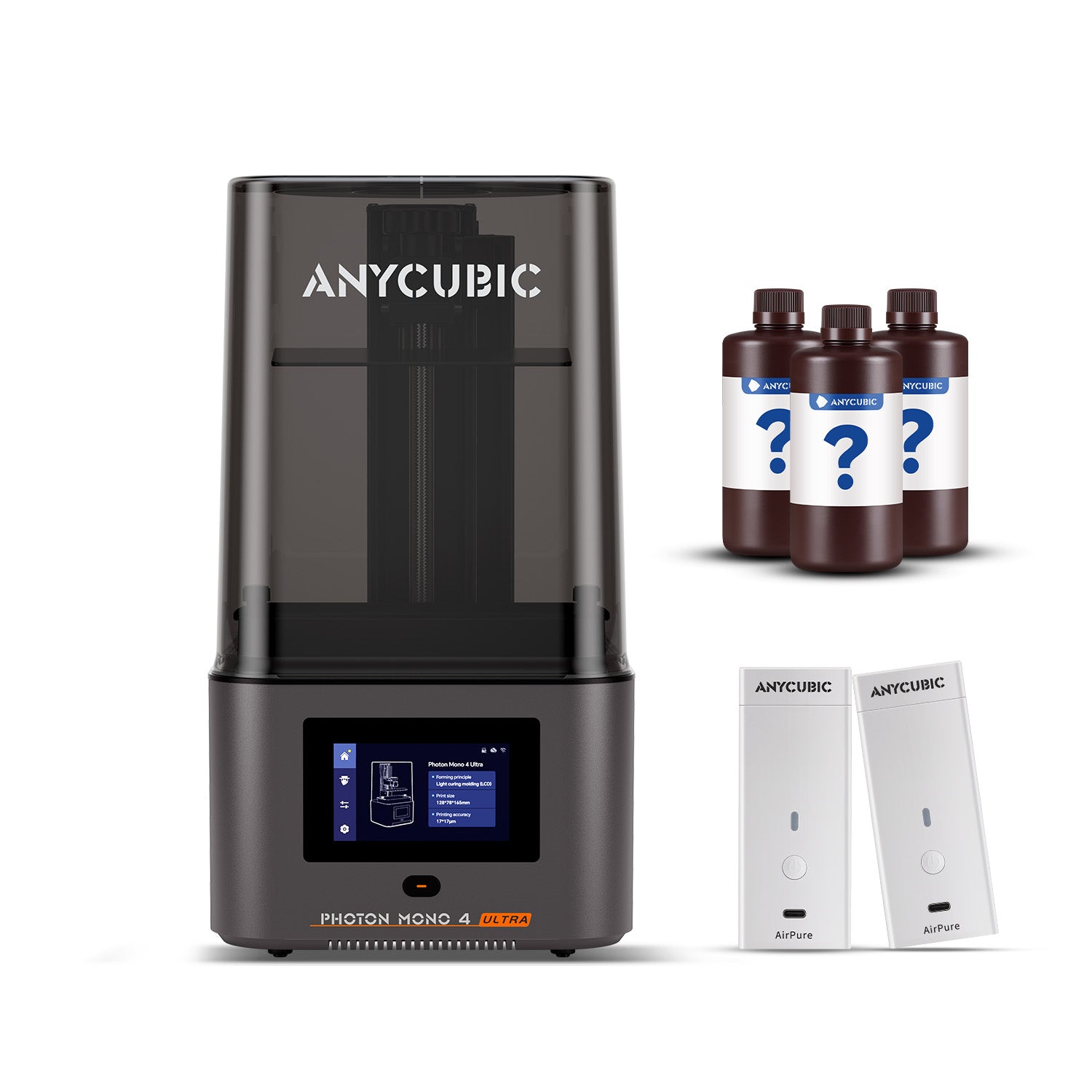

Include Resin: None

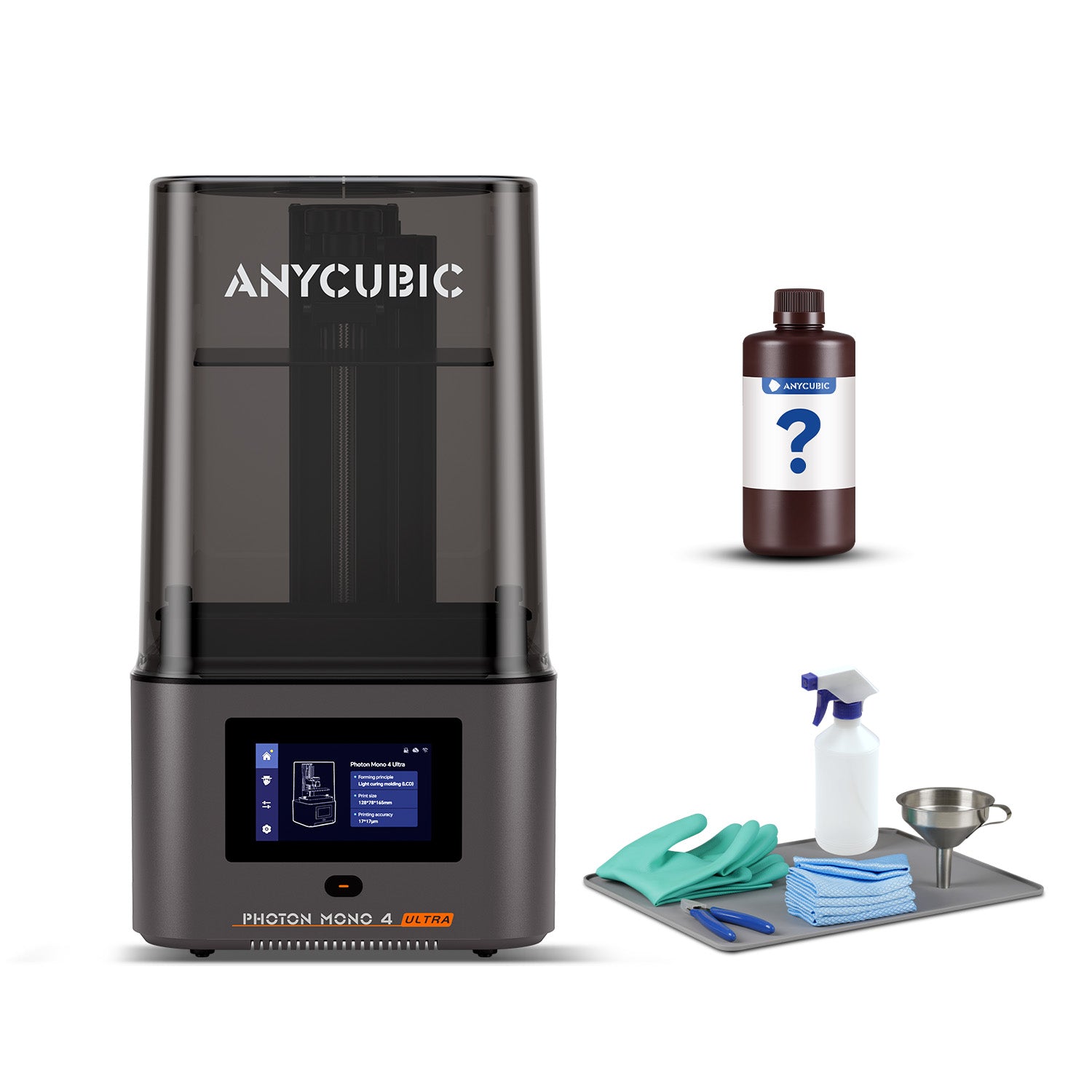

Included Accessories: None
🚚 Estimated Delivery Time: November 25th - December 5th

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

£229.00
£269.00 £229.00

Video

  • The Anycubic App

    Download the Anycubic App to directly access the Makeronline online model library on your smart phone, initiating print tasks through the cloud.

  • Anycubic Photon Workshop Magic

    Fully Automated Support Generation | Customizable Support Optimization| Smooth Layer Transitions | Remote operation

  • Interactive 3D Printing Ecosystem

    Offers models from 3000+ designers, enabling users to earn rewards by sharing work or joining contests.

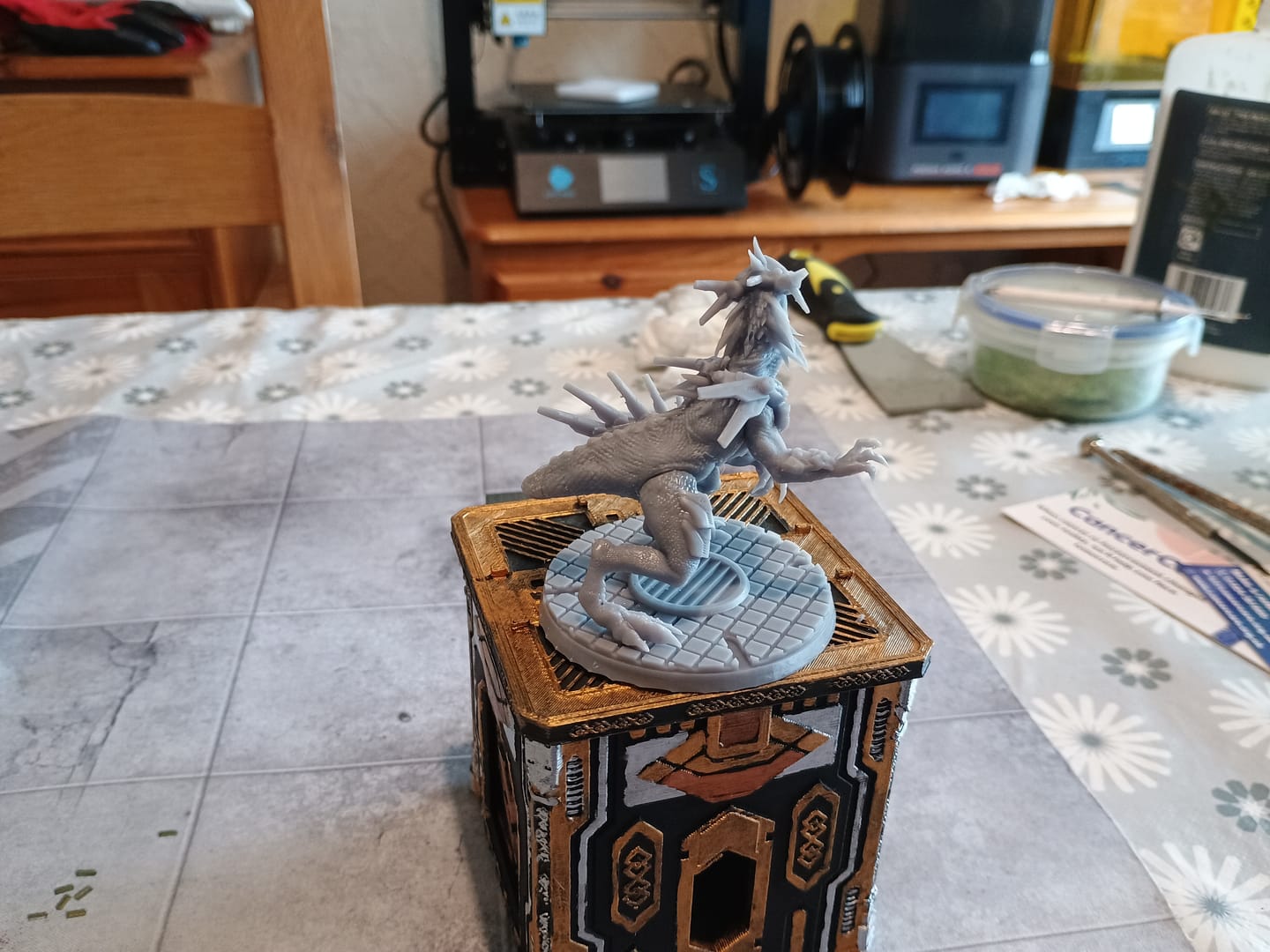

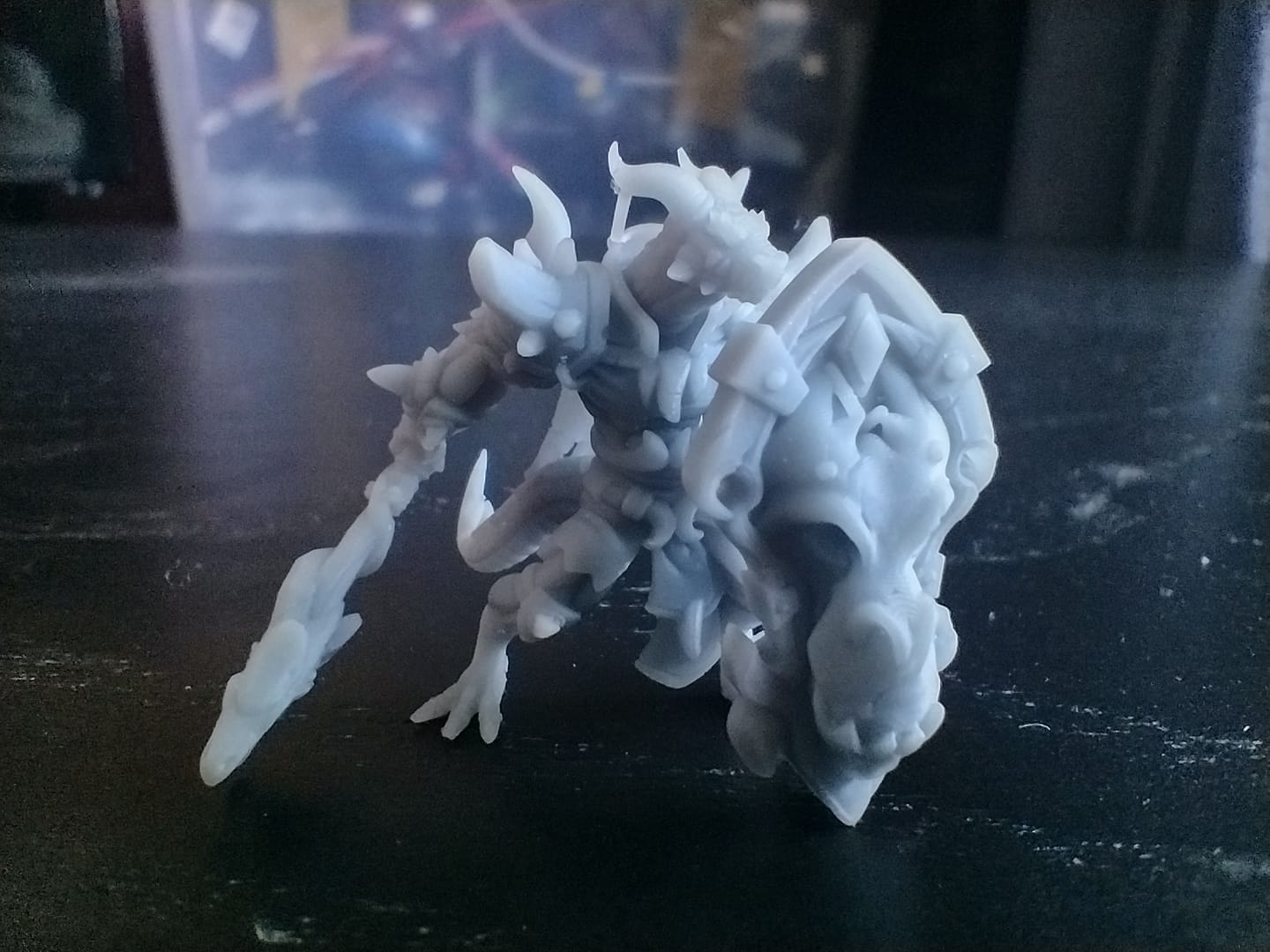

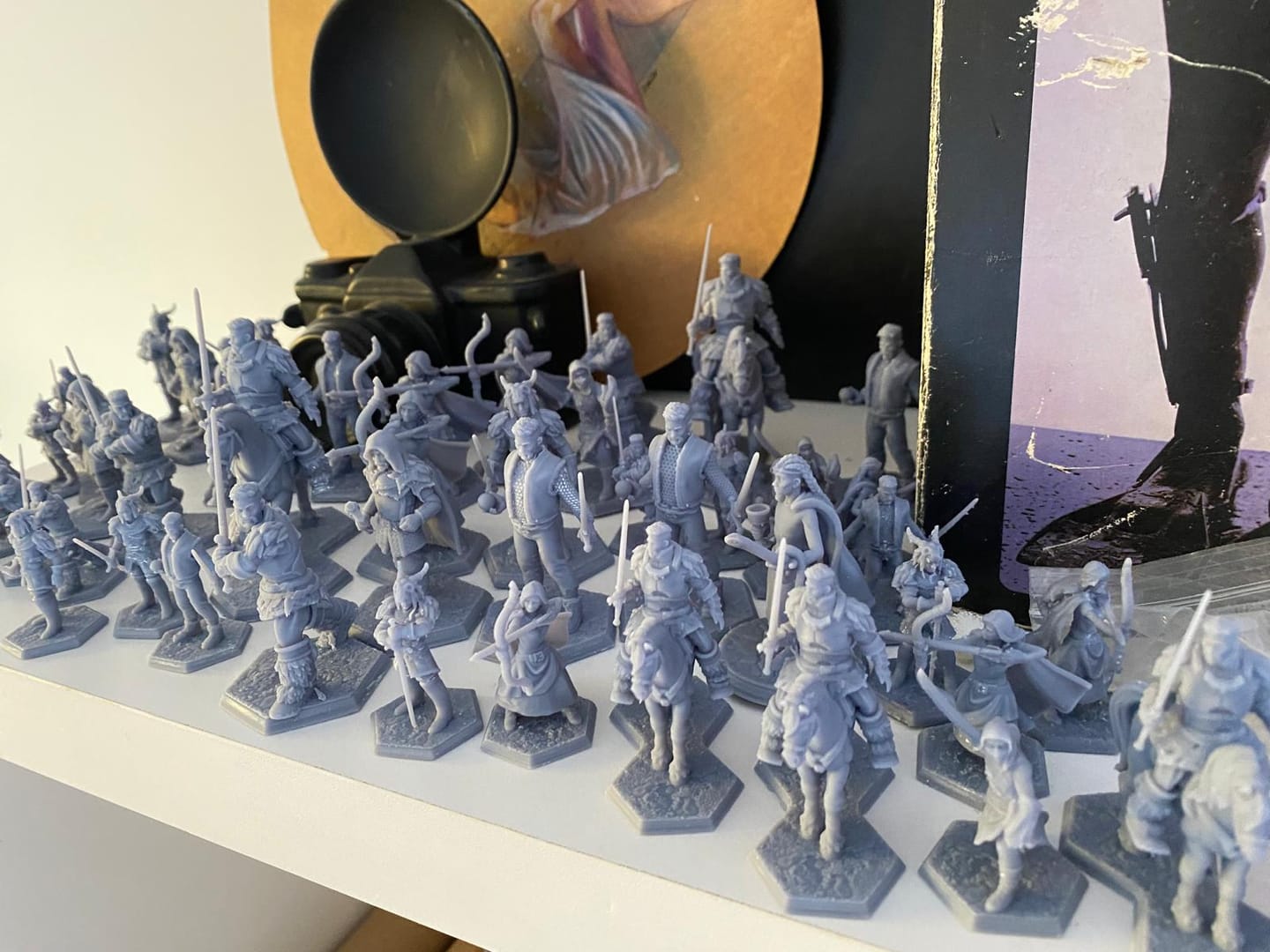

Sample Prints

  • High Speed Resin 2.0

    Enables the cured model to have stronger anti-bending and anti-breaking performance, effectively reducing cracking and damage.

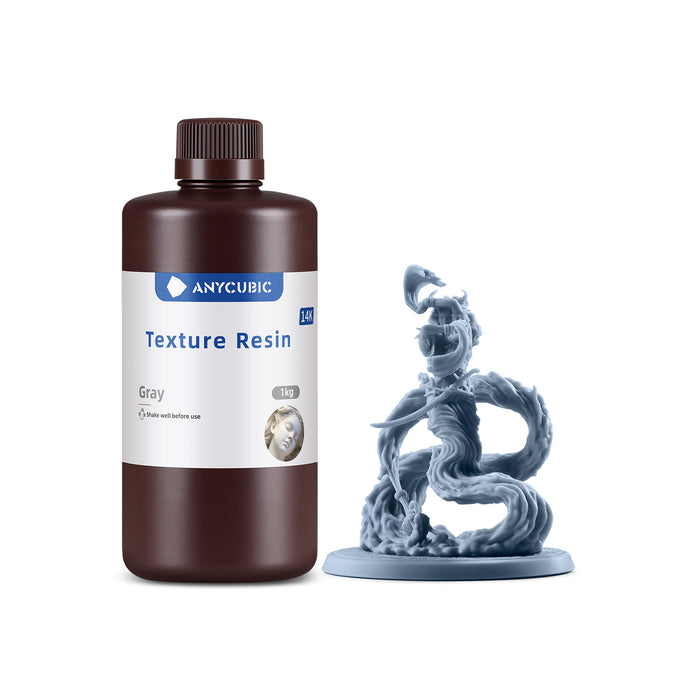

  • Texture Resin

    The Texture Resin gives ultra-indepth print details for miniatures and complex scene.

  • Bio Resin

    Low irritation, low odor, environmentally friendly and comfortable wearing experience.

Specification

Tech specs

  • Build volume

    153.4mm*87mm*165mm

  • Machine dimensions

    231mm*236mm*430mm

  • Printing speed

    Standard Resin 0.1mm layer height: 80mm/h peek speed; High Speed Resin 0.1mm layer height: 120mm/h peek speed

  • Machine leveling

    4-point manual leveling

  • Lcd screen size

    7-inch 10K Mono LCD

  • Light source

    COB light source+ Fresnel lens+Light uniformity algorithm

  • Xy resolution

    17*17μm

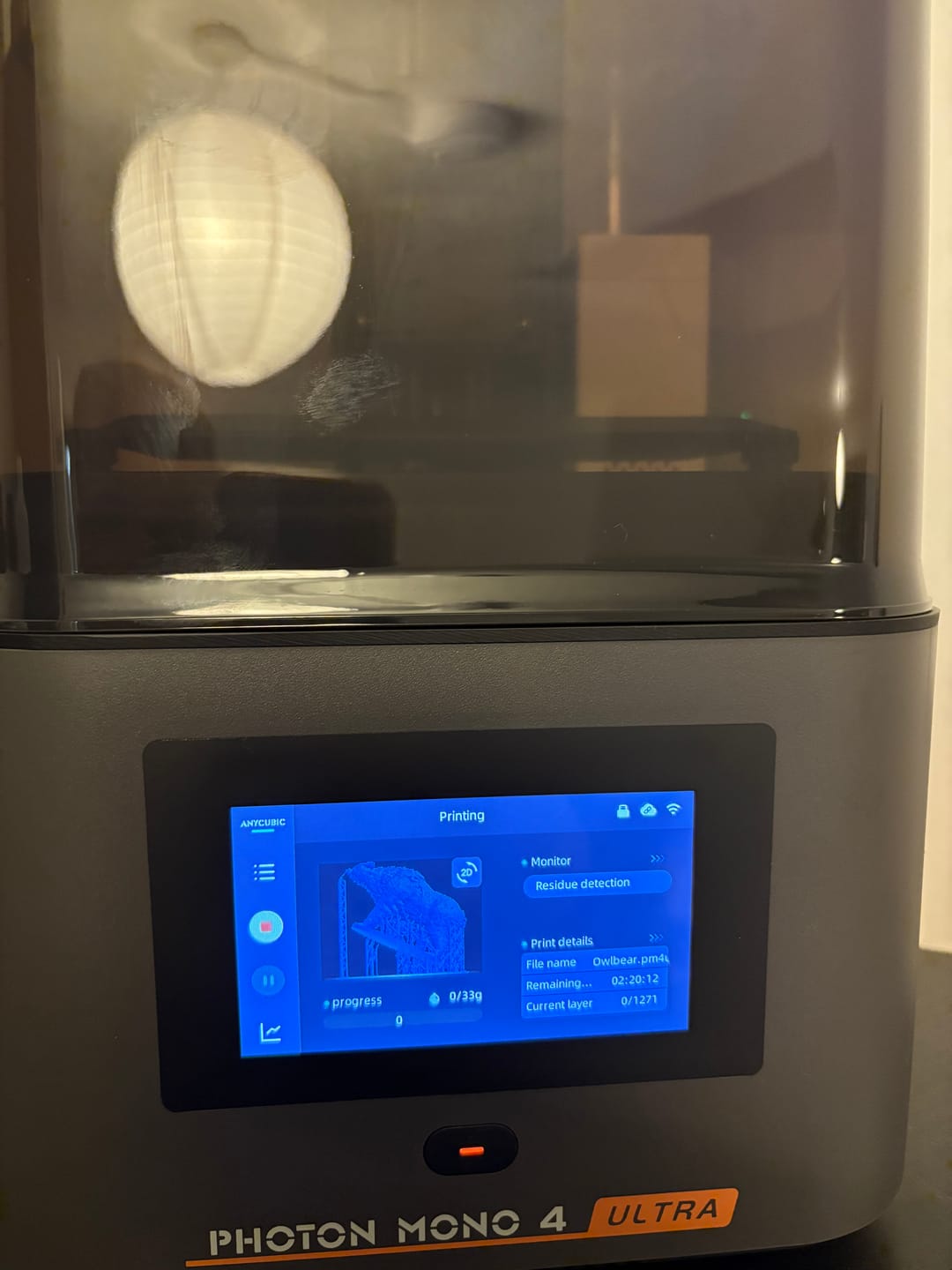

  • Operating screen

    4.3" TFT touch-control

  • Slicing software

    Photon Workshop

  • Material

    Supports most resins on the market (water-washable, standard, bio resin, plant-based, etc.)

  • File transfer

    USB & WiFi & LAN MODE (Q4)

  • Machine weight

    5KG

  • Light uniformity

    ≥90%

  • Release film

    ACF

  • Light intensity

    ≥3500μW /cm²

  • Layer height

    0.02-0.15mm

  • Package dimensions

    512mm*300mm*305mm

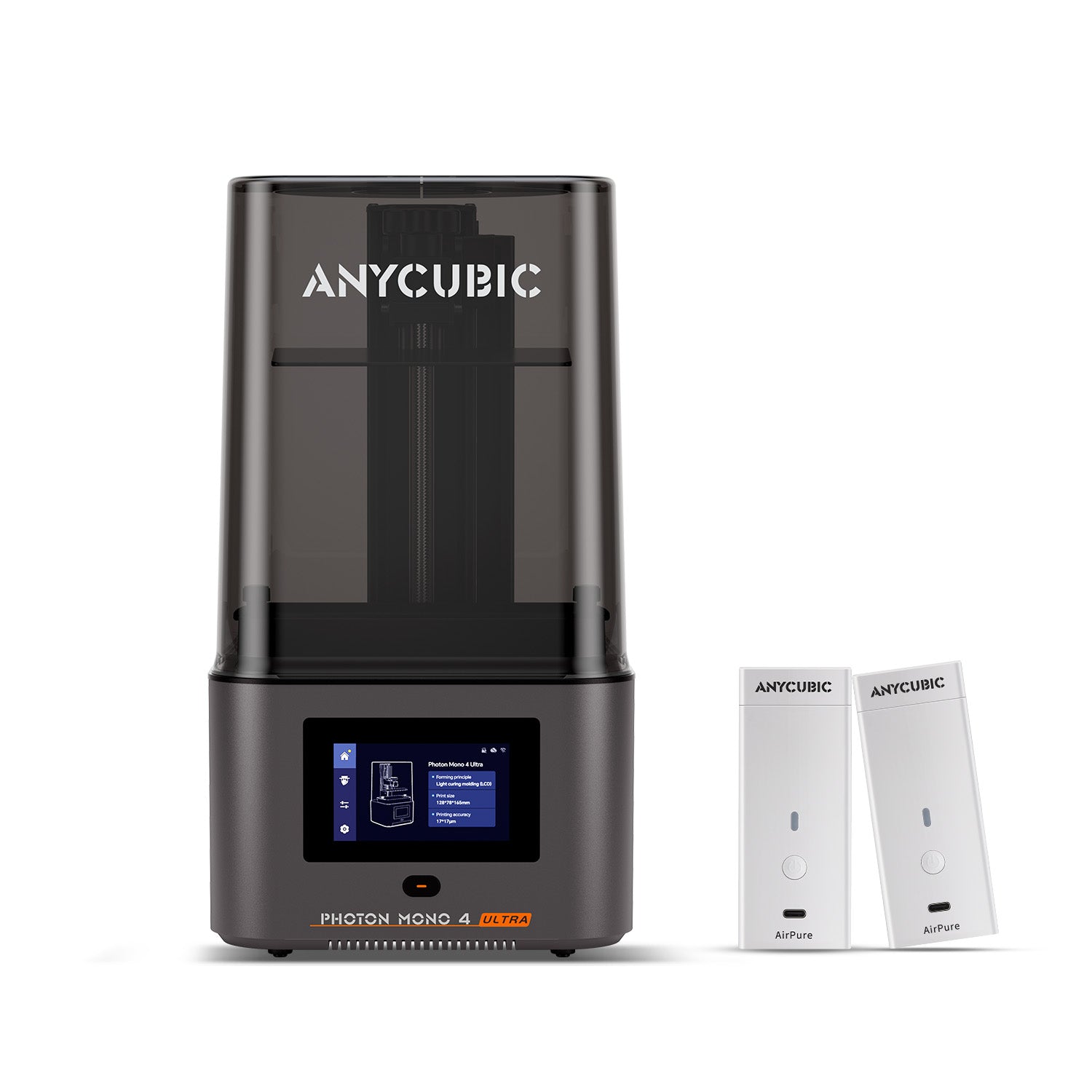

  • Air purifier

    USB

  • Anycubic app

    Support

  • Intelligence assisted printing system

    Support

Products Comparison

Picture Photon Mono 4 Photon Mono 4 Ultra
Printer Model Photon Mono 4 Ultra Photon Mono 4
Build Volume 153.4mm*87mm*165mm 153.4mm*87mm*165mm
Product Dimensions 231mm*236mm*430mm 230mm*235mm*391mm
Packaging Dimensions 512mm*300mm*305mm 480mm*300mm*300mm
Net Weight 5KG 4KG
Printing Speed Standard Resin 0.1mm Layer Thickness Peak speed 80mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed 120mm/h Standard Resin 0.1mm Layer Thickness Peak speed ≤50mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed ≤70mm/h
Layer Height 0.02-0.15mm 0.03-0.15mm
LCD Screen 7-inch Mono LCD 7-inch Mono LCD
Printing Resolution 10K 10K
X/Y Axis Resolution 17*17um 17*17um
Light Source COB light source+ Fresnel lens+Light uniformity algorithm Parallel matrix upgrade light source
Light Uniformity ≥90% 80-90%
Full-Stage Intelligent Assisted Printing System √ ×
Light Intensity ≥3500μW /cm² ~3000μW /cm²
Release Film ACF FEP
AirPure Optional(USB) Optional(Rechargeable)
Display Screen 4.3" TFT touch-control 2.8" TFT touch-control
Anycubic App √ ×
Machine leveling 4-point manual leveling 4-point manual leveling
Slicing Software Photon Workshop Photon Workshop
File Transfer USB & WiFi& LAN MODE(Q4) USB

In The Box

  • Photon Mono 4 Ultra

  • Print Platform * 1

  • Resin Vat * 1

  • Manual * 1

  • Sreen Protector Kit

  • Leveling paper

  • Glove

  • Funnels

  • Scrapers

  • Hex Key Set

  • USB Drive

  • Power Cord

FAQs

Q: How to get more information about Photon Mono 4 Ultra?

A: For more information on the Photon Mono 4 Ultra, please visit the Anycubic Wiki.

Q: How does the Light Uniformity Algorithm improve print quality?

A：The Light Uniformity Algorithm ensures uniform light exposure across all layers, with a uniformity rate of ≥90%. This reduces dimensional errors, delivering consistent and high-quality prints even on larger models.

Q: What advantages does the COB light source with Fresnel lens offer?

A: The advanced COB light source, combined with a Fresnel lens, ensures precise light distribution with an angle of only 3°. This eliminates stray light interference and provides uniform illumination, improving print detail and accuracy.

Q: How does the ACF film enhance print performance?

The new ACF film reduces surface texture, allowing for better light penetration and smoother resin release. This results in faster print times and higher print success rates, reducing the chance of layer separation.

Q: What is the power consumption of Photon Mono 4 Ultra?

A: The overall rated power of the machine is 66W.

Q: What speed improvements does the Photon Mono 4 Ultra offer?

With Anycubic's High Speed Resin 2.0, the Photon Mono 4 Ultra can reach a printing speed of up to 120mm/h at 0.1mm layer height, a 60% speed increase over its predecessor. Standard resin can print at a maximum of 80mm/h.

Q: How does the printer detect and prevent failed prints?

The Photon Mono 4 Ultra features failed print detection that monitors anomalies like cracks, detachment, or layer separation. When issues are detected, the printer pauses and notifies the user, helping prevent wasted resin and time.

Q: What kind of models can I print with the Photon Mono 4 Ultra?

You can print highly detailed models, miniatures, and complex designs with ease. The combination of 10K resolution and precise optical adjustments ensures models with intricate details and smooth surfaces.

Q: How does the Photon Mono 4 Ultra handle resin monitoring?

You can print highly detailed models, miniatures, and complex designs with ease. The combination of 10K resolution and precise optical adjustments ensures models with intricate details and smooth surfaces.

Q: Does the Photon Mono 4 Ultra support third-party software?

1. Adapt to the official slicing software, which supports vector slicing;
2. Compatible with Chitu, Tangoo and Lychee slicing software, slicing mode aligned with WorkShop, vector format turned off.
