Regular price
£42.99
Sale price
£42.99
Regular price

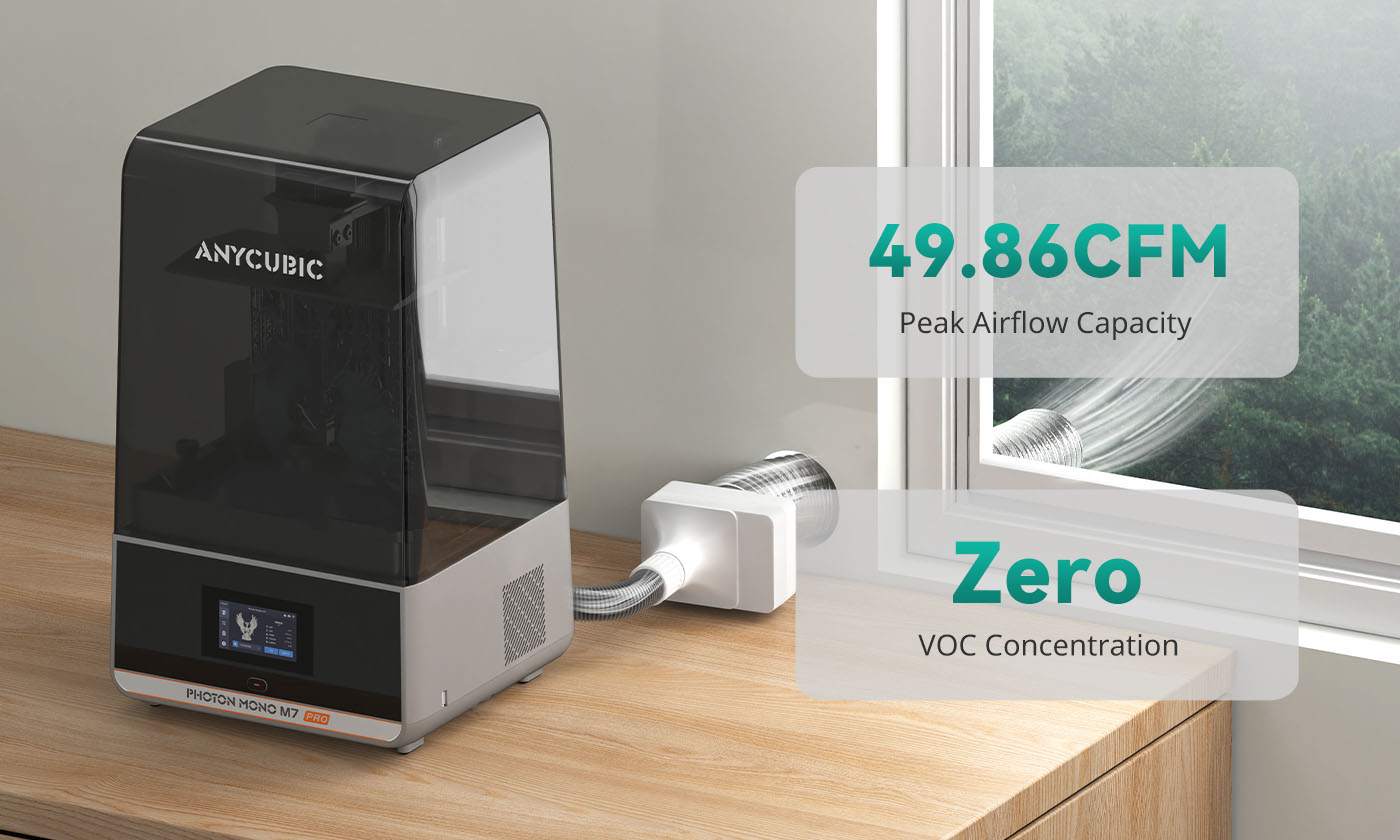

Around-the-clock Ventilation
The ventilation system connects the printer and the external environment. Upon activation, it operates continuously toremove gases from the chamber.
Compatible with Mainstream 3D Printers

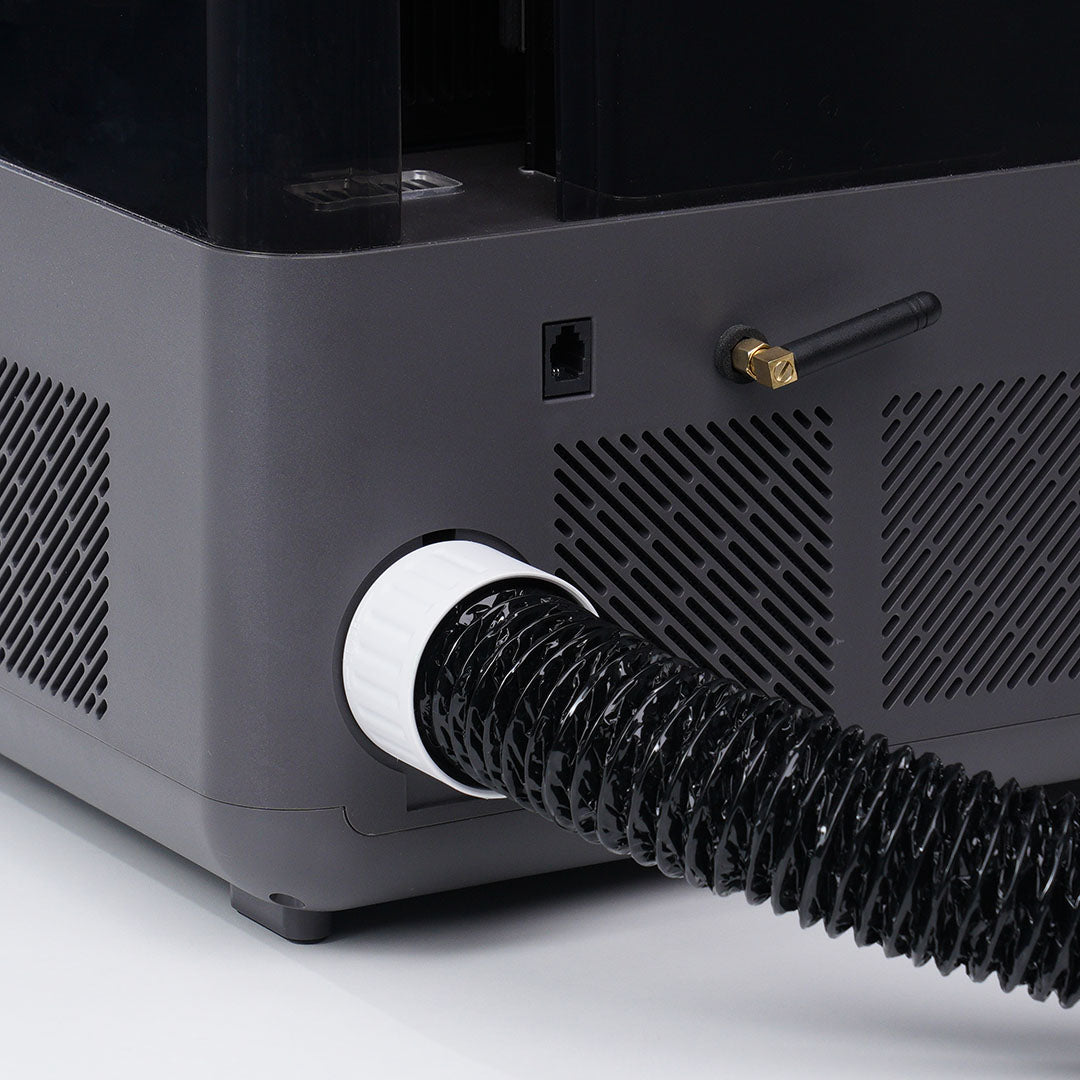

M7 Series
Direct connection.

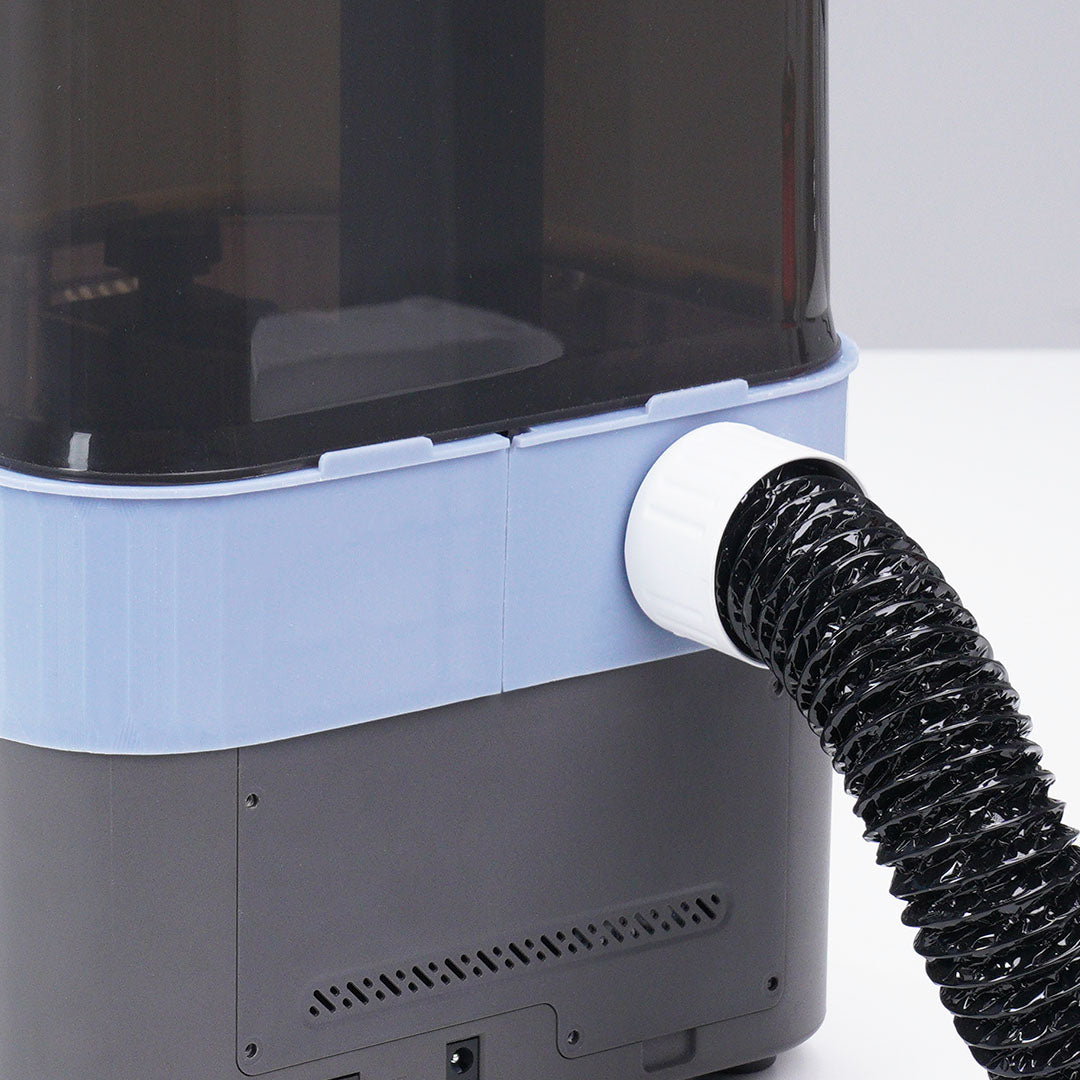

Mono 4 & Mono M5s Series
Requires a raised enclosure adapter. (Adapter needs to be printed.)
Resin Printers With Pre-drilled Holes
External hole adapter. (Adapter needs to be printed.)

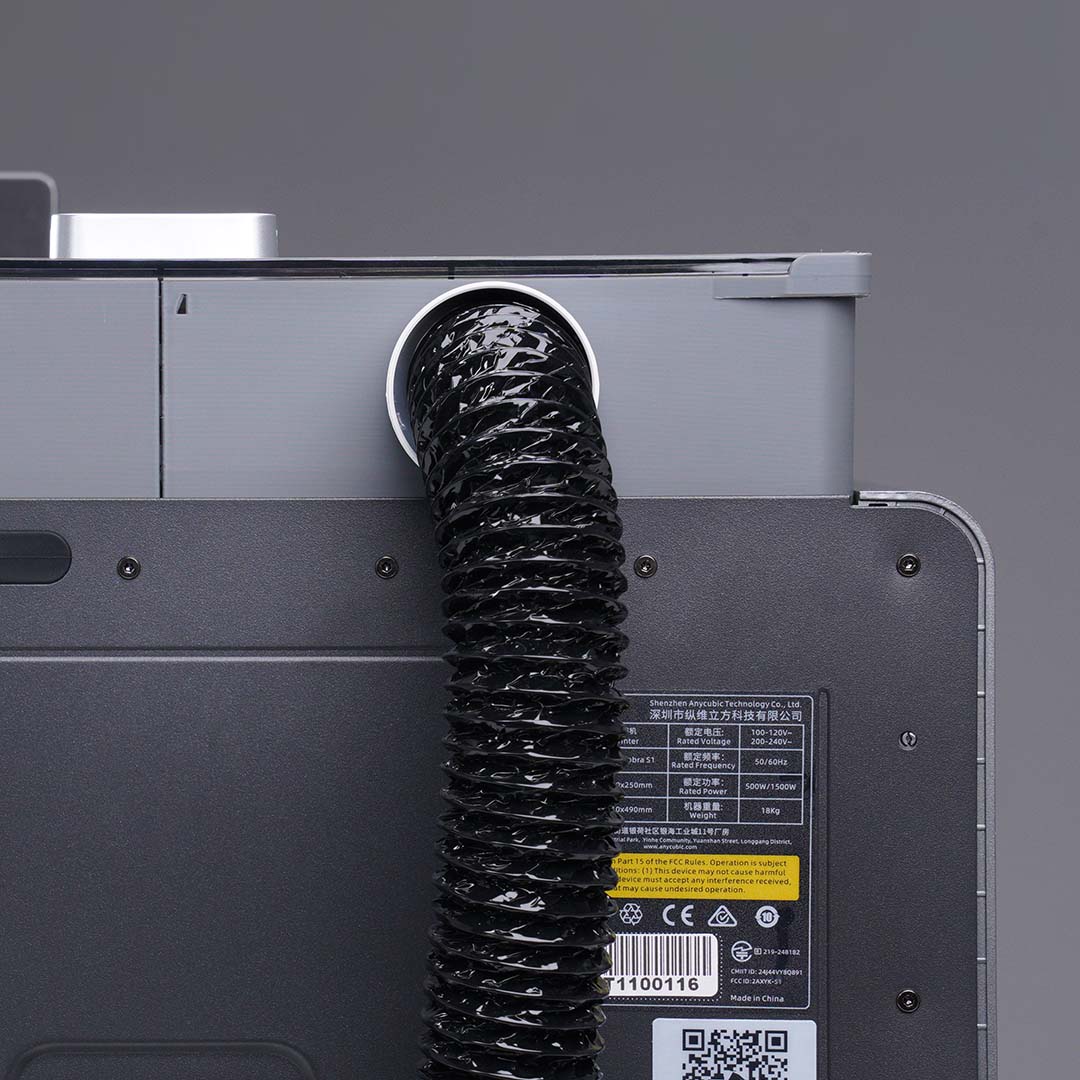

Fully-Enclosed FDM Printers
Requires a raised enclosure connection. (Adapter needs to be printed.)
https://wiki.anycubic.com/zh/air-pure-2/assembly to print it. Then, install the adapter to your printer.

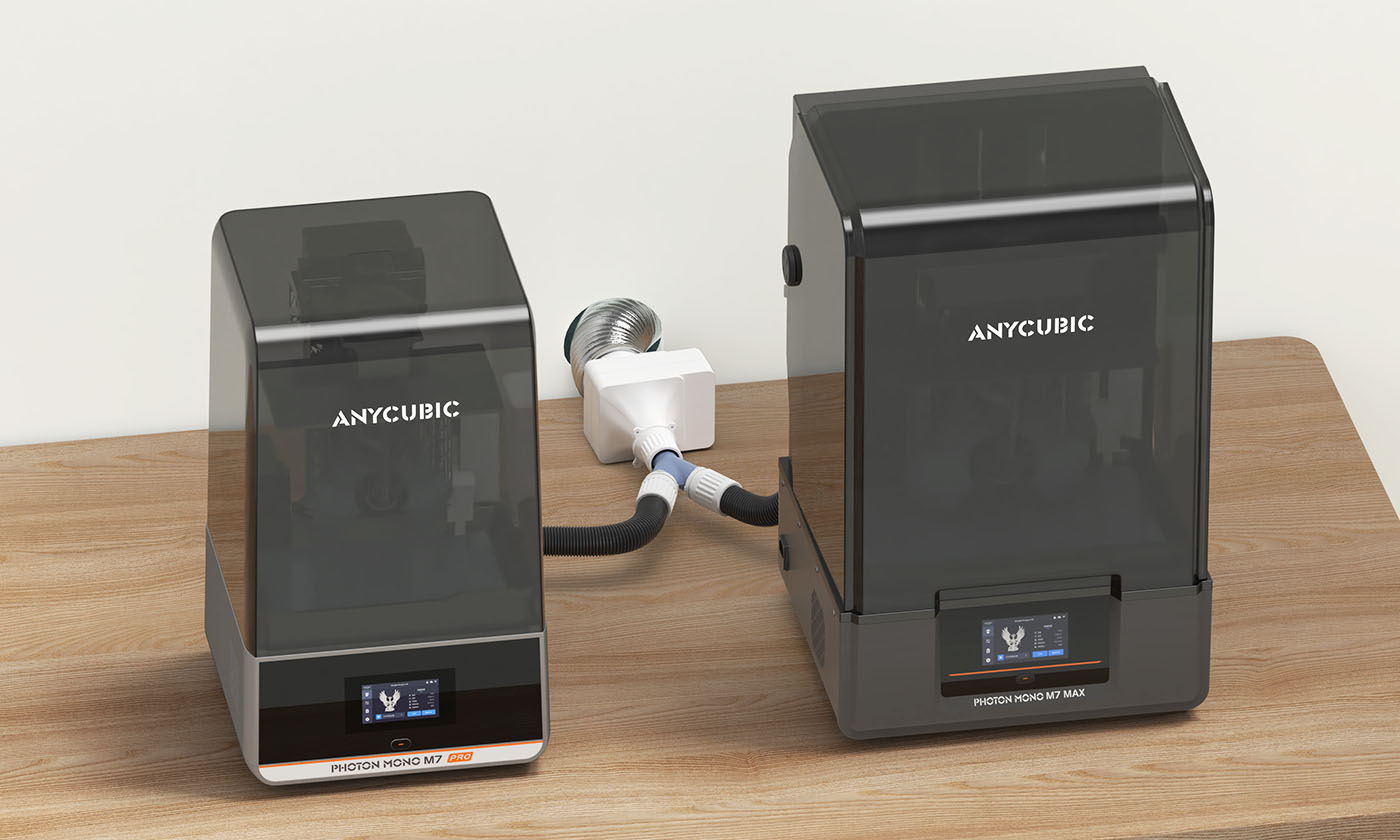

Connected to 2 Printers at Once
Compatible for single or dual-printer operation.
*Requires a 3D-printed Y-shaped connector and an additional air intake tube.
Installation for Different Types of Windows

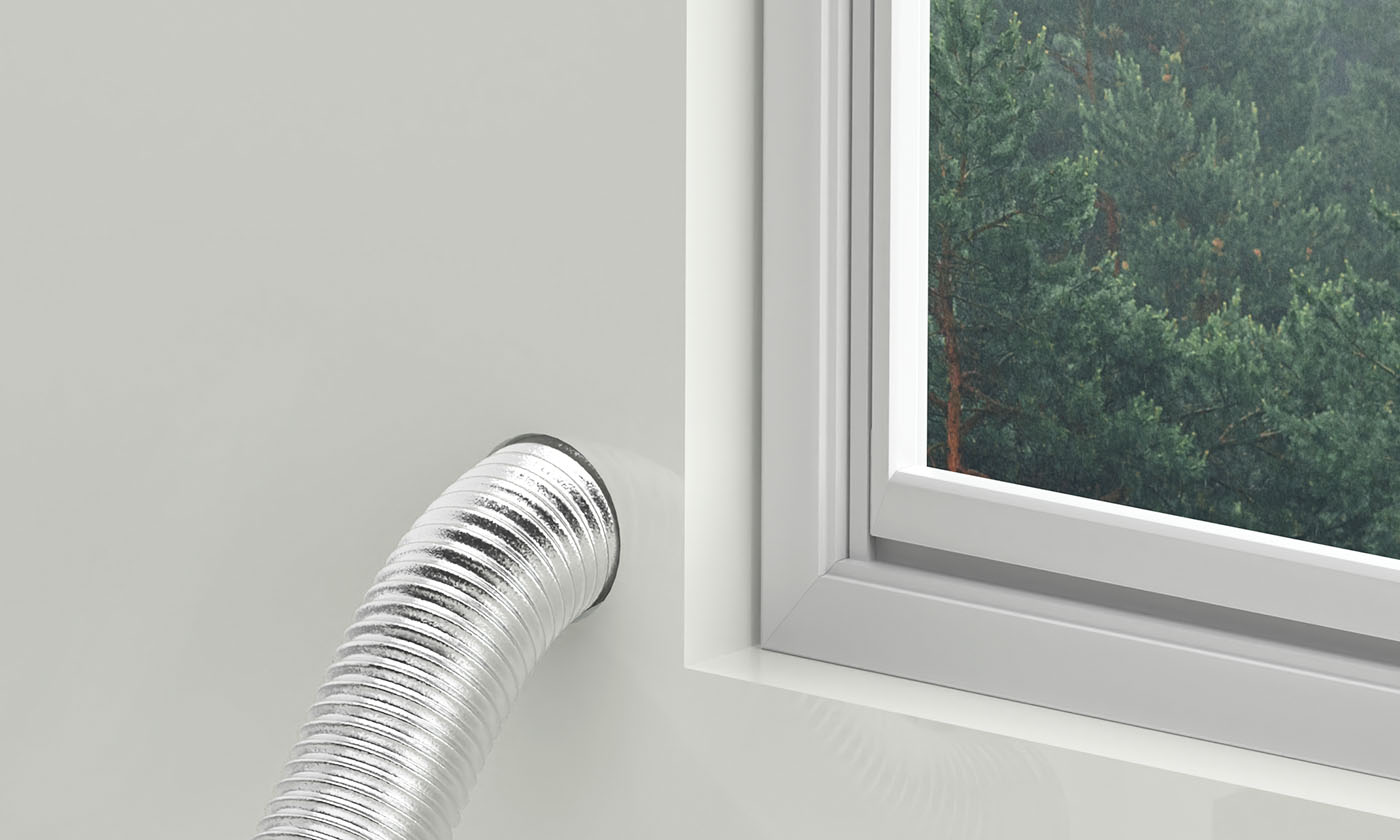

For Ventilation Hole
Attach one end of the ventilation system to the printer and the other end to an outdoor vent.

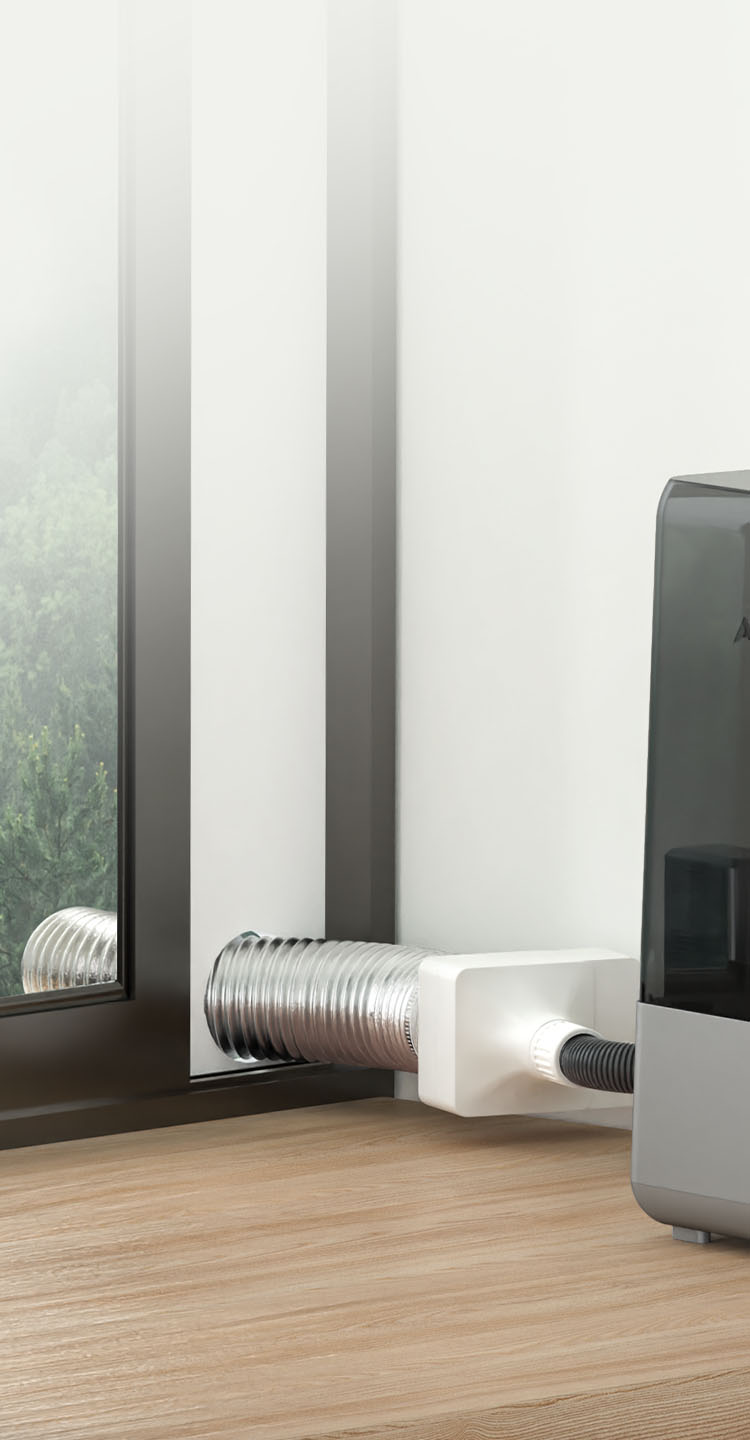

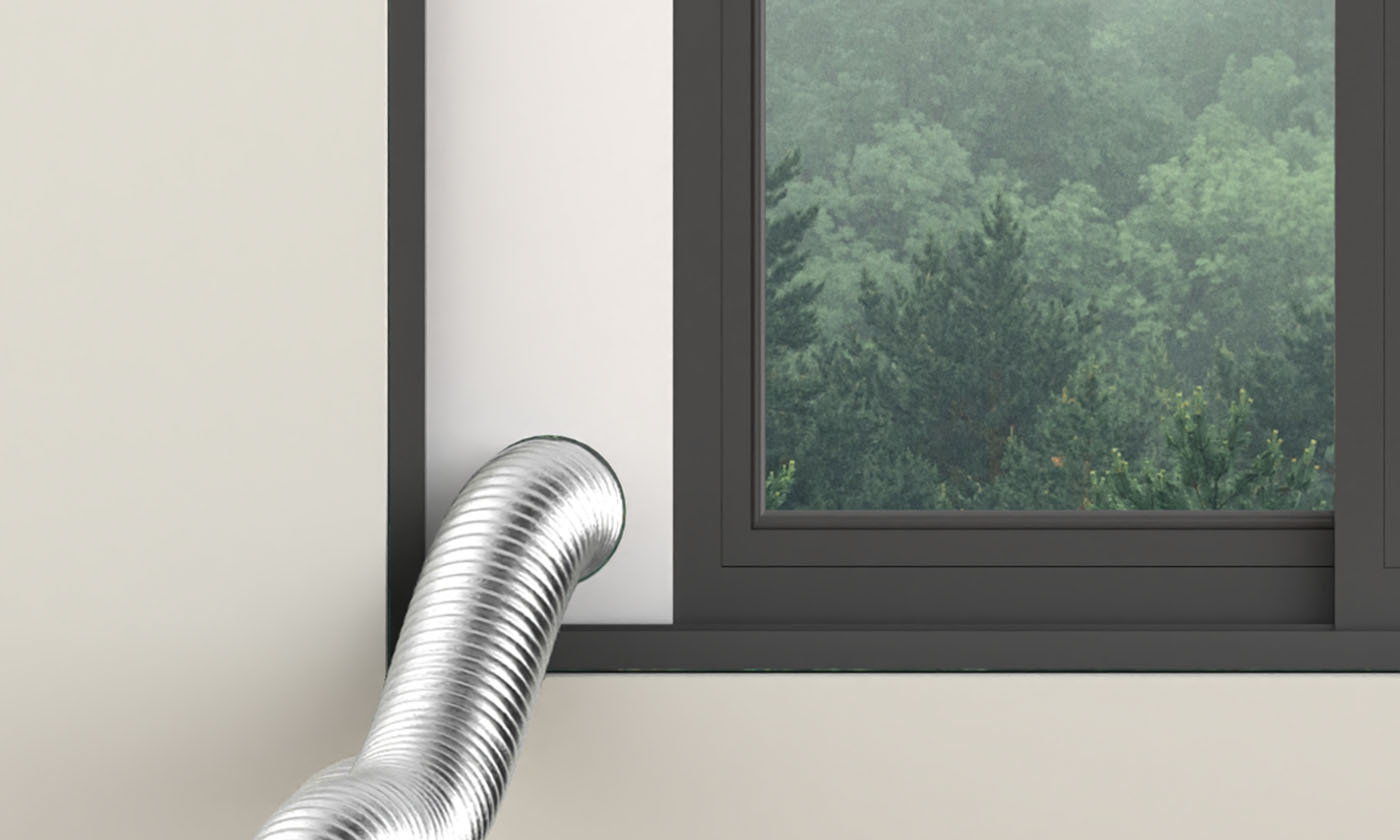

For Sliding Windows
Attach one end of the ventilation system to the printer and the otherend to the window opening via an adapter. (A printable adapter file is included.)

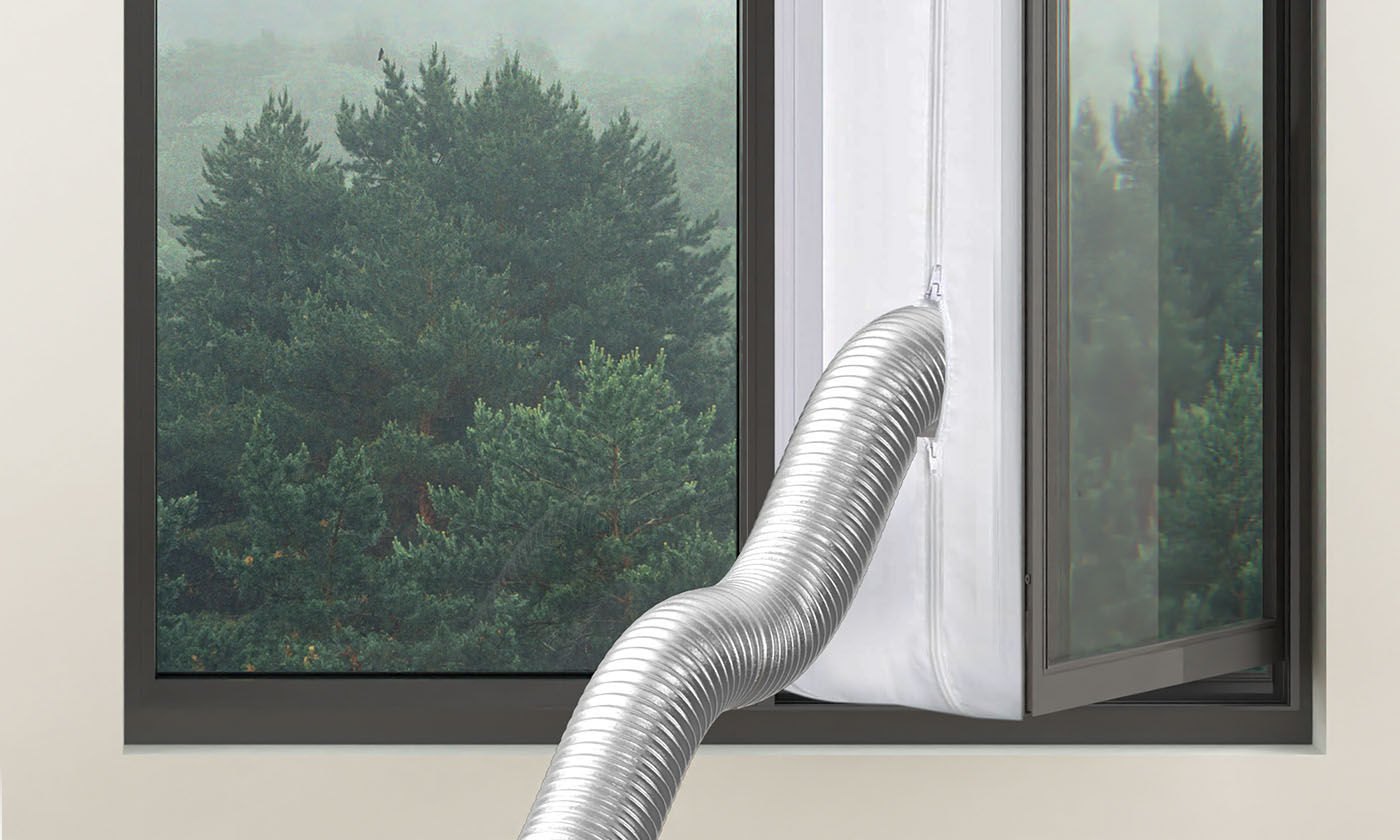

For Casement Windows
Install hook-and-loop strips (e.g., Velcro) on the window frame and window, attach a window seal, and connect one end of the ventilation pipe to the window seal opening. (Hook and loops straps and window seal kit need to be purchased separately.)
Product Specifications
Rated Voltage 100-240V, 50/60Hz
Power Output 12V/1A
Fan Speed 3800(±10%)RPM
Operating Environment Temperature: 8°C to 40°C/Humidity: 20% to 90%
Noise Level 45±3 dB
Product List
Main Part
Exhaust Hose
Inlet Hose
Hose Clamp
Power Adaptor
User Manual
