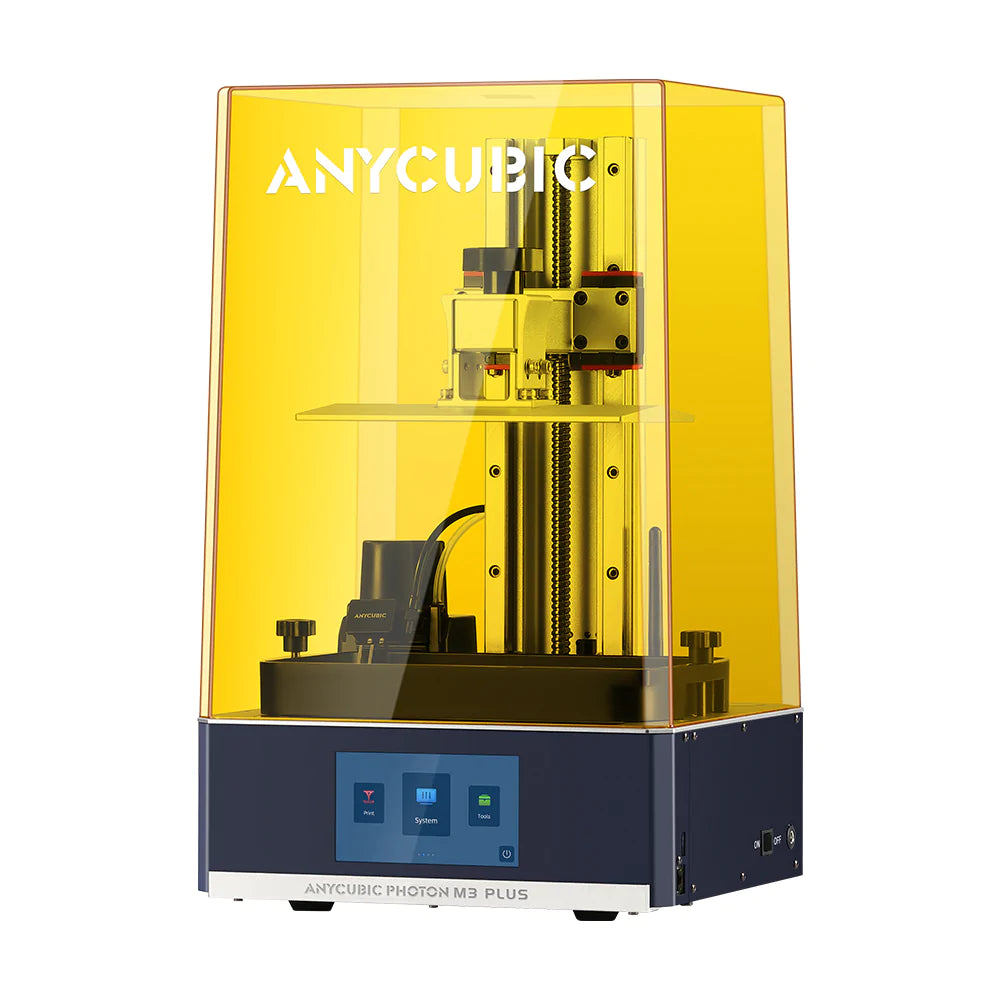

Anycubic Photon M3 Plus
Regular price
£759.00 GBP
Regular price
Sale price
£759.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Regular price
£759.00 GBP
Regular price
Sale price
£759.00 GBP
Product Description
- 6K Monochrome Screen
- 34μm accuracy.
- Anycubic LighTurbo
- Strong light power.
- Anycubic Cloud
- One touch printing.
- Smart Resin Filling
- Rest without worries.
- Technical Specifications
- ● Exposure screen: 9.25 inch monochrome screen
- ● Printing volume: 5.9 liters / 199.1 ounces
- ● Print size: 245 x 197 x 122 mm / 9.6 x 7.8 x 4.8 inches (HW)
- ● Printing platform: Laser engraved aluminum alloy platform
- ● Light source: Parallel matrix light source (40 LED beads)
- ● Machine leveling: 4-point manual leveling
- ● Printing accuracy: 6K (5,760 x 3,600 pixels)
- ● Printing speed: ≤100 mm/hour
- ● Control panel: 5-inch resistive touch screen
- ● Data input: USB-A 2.0 & 3.0 interface
- ● Power supply: On/Off switch
- ● Rated power: 144W
- ● Machine dimensions: 475 x 360 x 290 mm (HW)
- ● Machine weight: ~12kg
- Well-defined Details
- Equipped with a 9.25’’ 6K exposure screen, the printer provides a large print size of 245*197*122mm and high accuracy of 34μm. The high-precision Z-axis ball screw combined to deliver fine details.
- Anycubic Cloud
- Support "USB-A 2.0 / LAN / WAN" and USB-A 3.0 / LAN/WAN control mode. No matter file transfer or printing, you can realize that just by one touch on Anycubic Cloud.

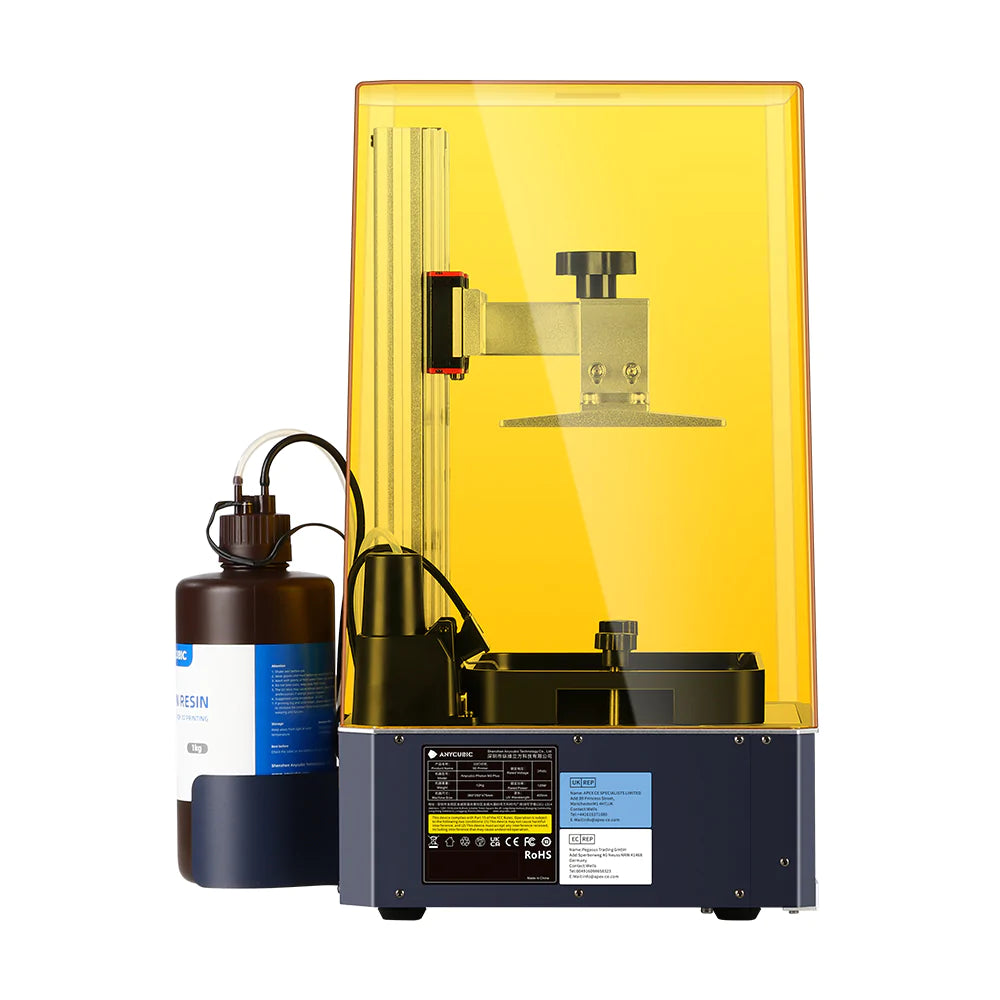

- Smart Resin Filling
- The new automatic feeding function automatically feeds the resin vat when resin is insufficient and stop when resin is enough.
- Foundation Is the Key
- The laser engraving pattern after repeated designs and tests greatly increases the adhesion at the bottom of the platform and improves the printing success rate.
- Speed Up Your Experience
- The self-developed Anycubic LighTurbo features matrix-arranged LCD beads, which provide strong light power, making high-speed printing possible.
- Sharpen Your Prints
- The screen contrast ratio is as high as 350:1, 75% higher than that of competitive products (200:1), greatly improving printing details.
- Every Minute Counts
- The maximum printing speed can reach up to 100mm / h. It takes only 1.2 hours to print a 120 mm high model, saving 1.8 hours compared with 3 hours of competitive products.
- Protect What Matters
- An extra anti-scratch film is included in the printer to protect the valuable 9.25-inch 6K screen and make the printing more relaxed.
- Large Touch Screen
- The printer is equipped with a 5-inch LCD touch screen, which is very sensitive to response and brighter in color, offering better using experience.
Parts List
User manual
Funnel
Tool set
Scraper
Resin vat
Platform
Power cord
WIFI
Mask
Glove
Screws
USB memory
Screen protector
Levelling paper
Auto-feed unit
| Machine Weight | 7kg | 11kg | 21kg |
| Machine Size | 425*269*256mm | 475*290*360mm | 596*400*408mm |
| LCD Resolution | 4098x2560px (4k+） | 5760x3600px (6k) | 6480x3600px (7k) |
| LCD Size | 7.6" monochrome | 9.25’’ monochrome | 13.6’’ monochrome |
| XY Resolution | 40 microns | 34 microns | 46 microns |
| Z axis Accuracy | 10 microns | 10 microns | 10 microns |
| Build volume | 180*164*102mm(2.99L) | 245*197*122mm(5.9L) | 300*298*164mm(14.7L) |
| Max.Printing Speed | 50mm/h | 100 mm/h | 60mm/h |
-
- Anycubic Photon M3
- 7,6" 4K+ LCD
- Build volume [LxBxH]: 163 x 102 x 180 mm
- Material: 405nm UV Resin
- Printing speed: 50mm/h
-
- Anycubic Photon M3 Plus
- 9,25" 6K LCD
- Build volume [LxBxH]: 197 x 122 x 245 mm
- Material: 405nm UV Resin
- Printing speed: 100mm/h
-
- Anycubic Photon M3 Max
- 13,6" 7K LCD
- Build volume [LxBxH]: 425 x 269 x 256 mm
- Material: 405nm UV Resin
- Printing speed: 60mm/h
