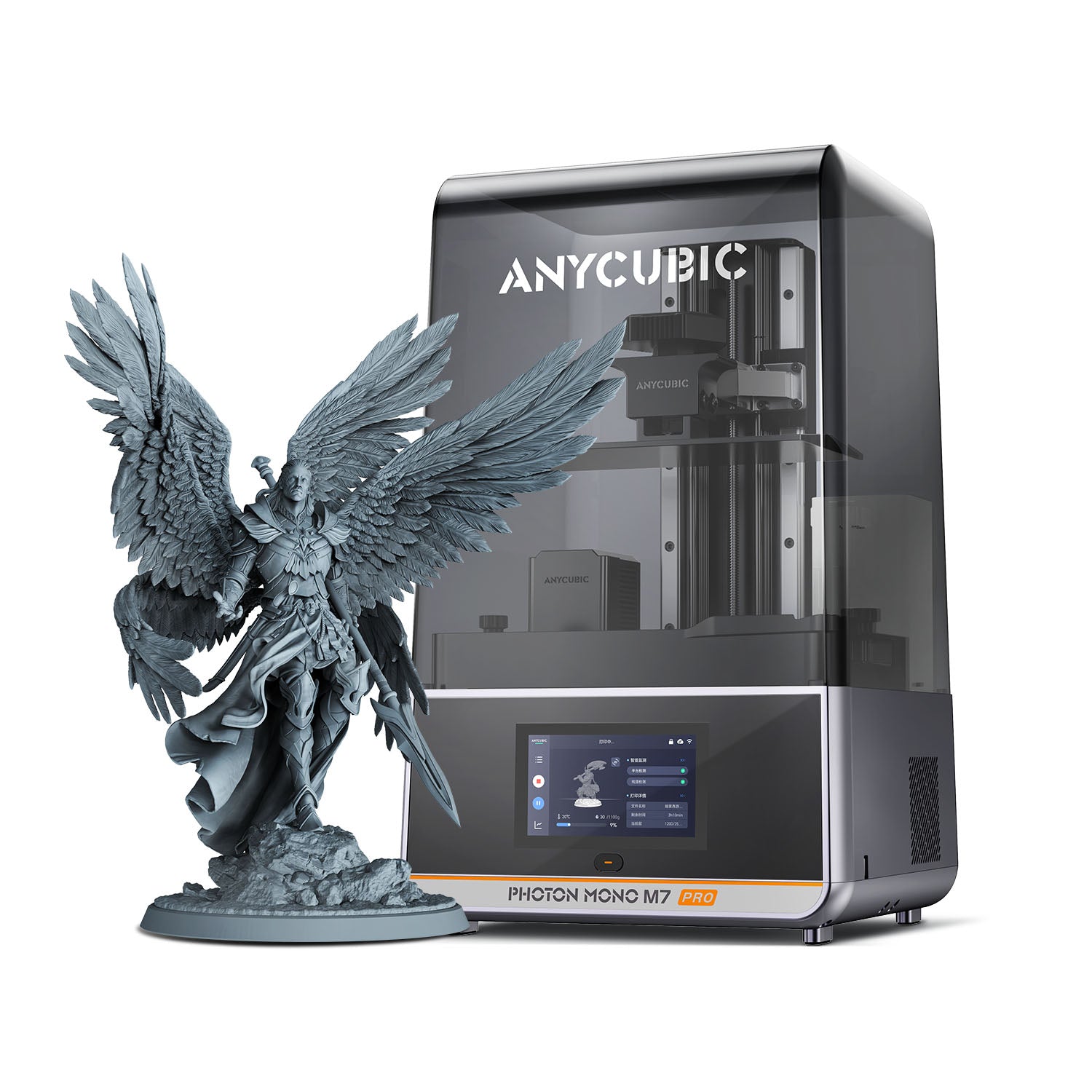

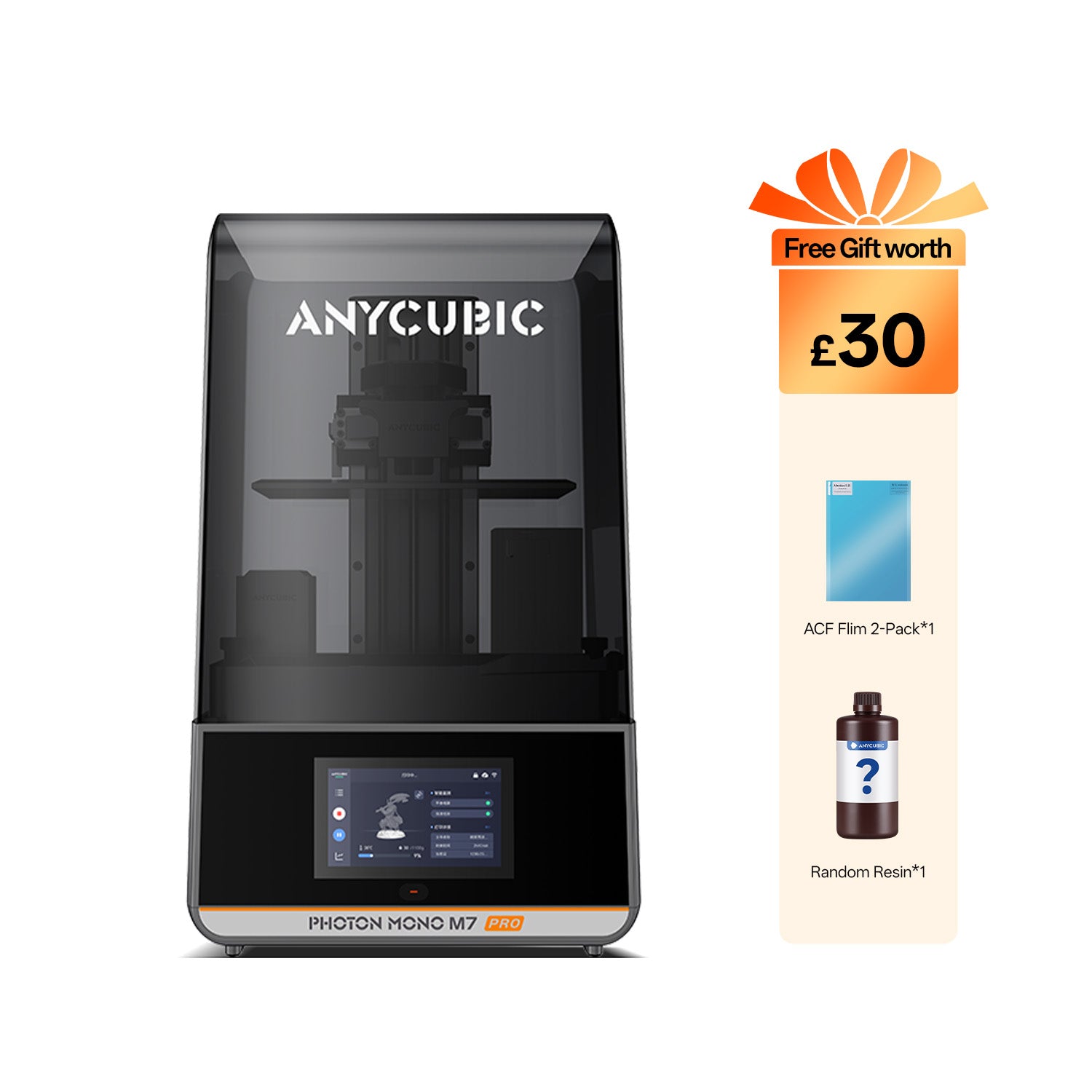

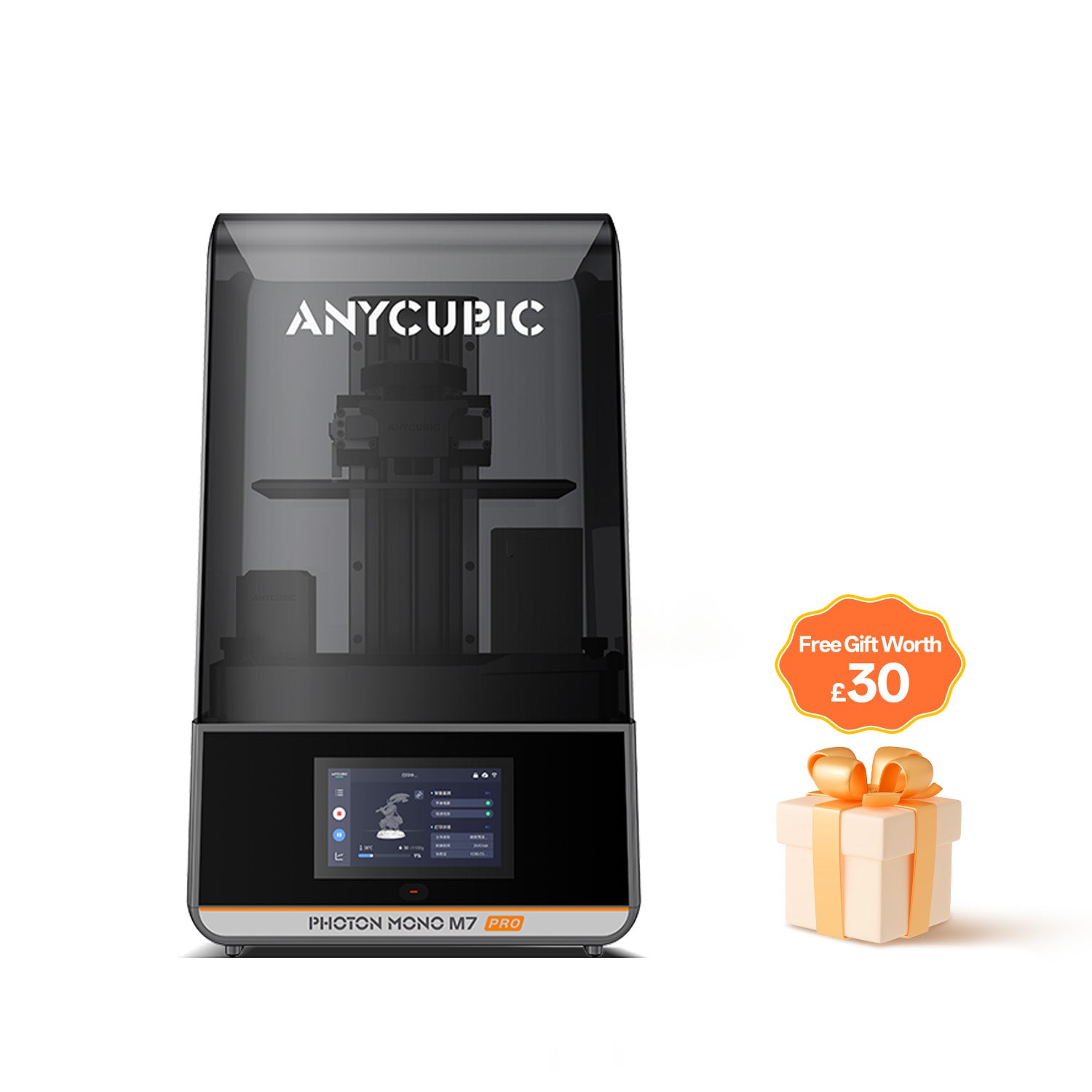

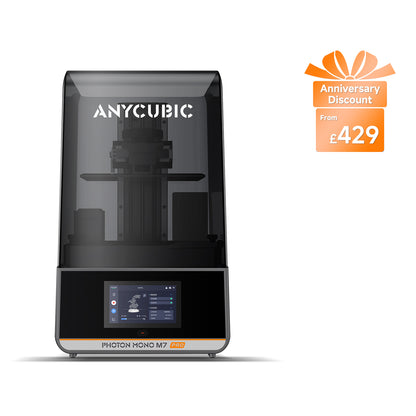

Anycubic Photon Mono M7 Pro

£459.00
£619.00 £459.00
-26%
Shipping calculated at checkout.

Product Features
● 170mm/h with High-speed Resin
● 10.1'', 14K (13320 * 5120) High-Precision Optical System

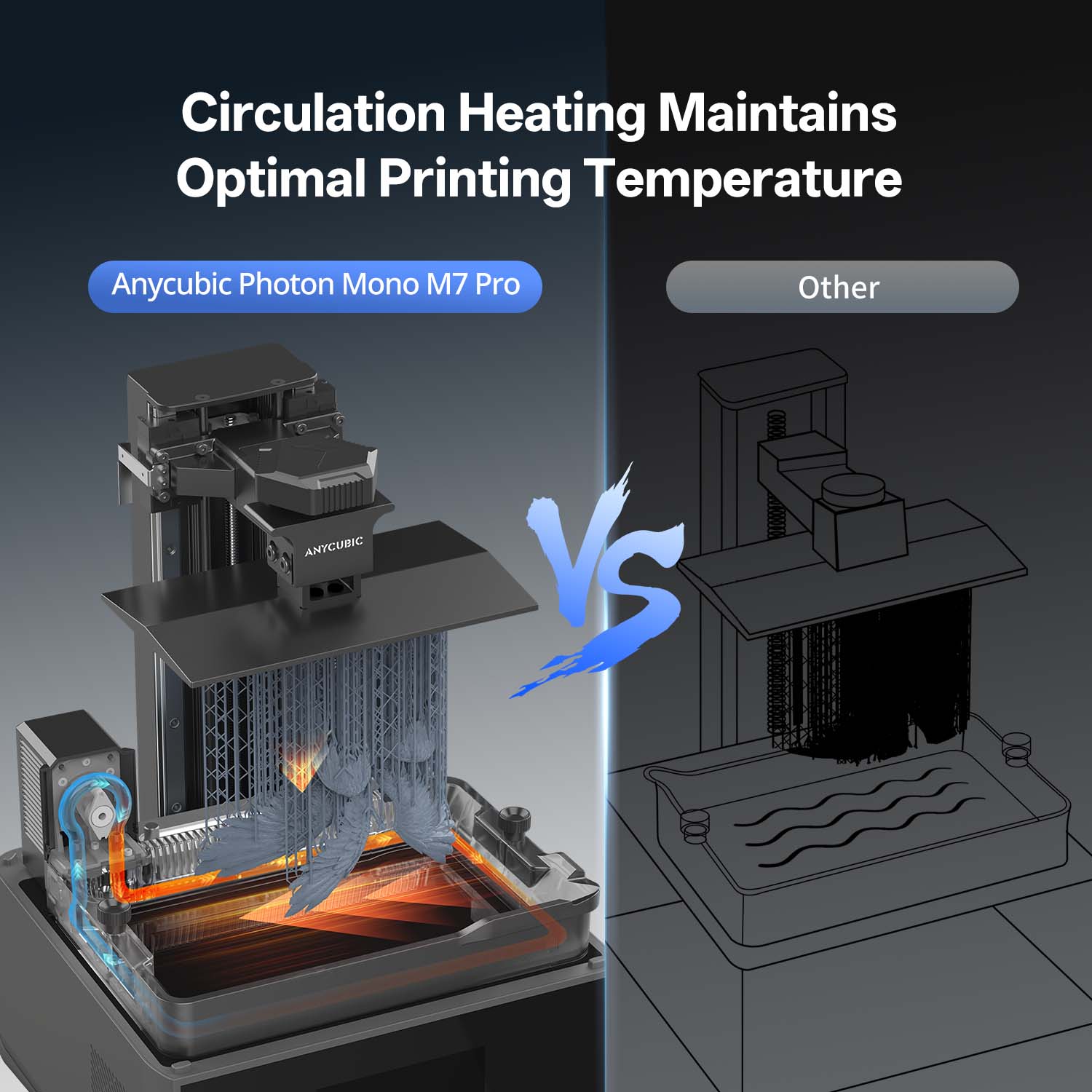

● Auto-Adaptive Technology Control Heating

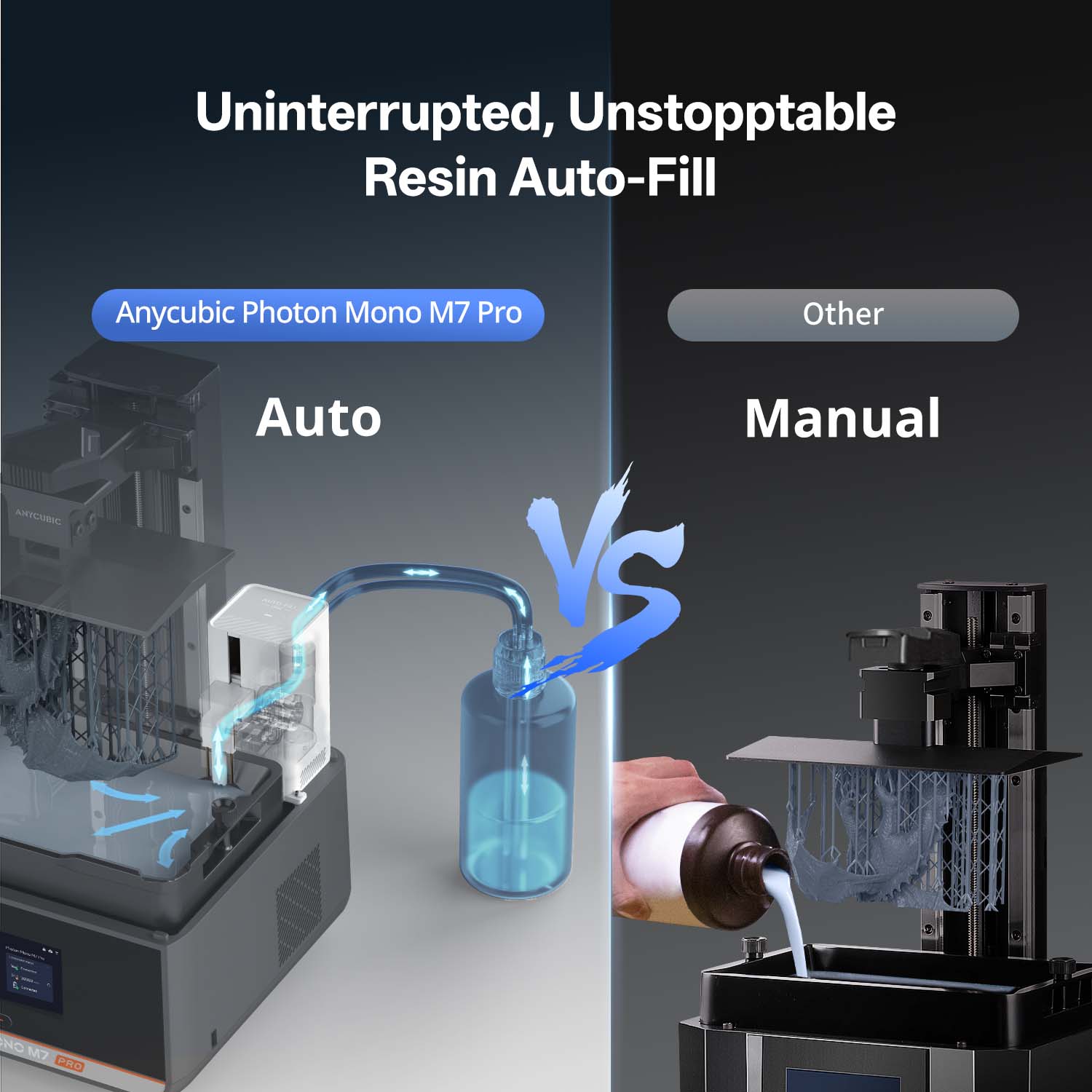

● Auto Resin Refill, Withdrawal
● Intelligent Workflow-Assist Printing
● LighTurbo3.0 (COB+Fresnel Lens)
🎁 Price: From £459 for Black Friday Sale
⚡ Wash & Cure 3 Plus Limited Time 20% Off: Original Price £159, Bundle Price £127!
🎁Plus Free AirPure *2pcs (limit to first 600 orders)
Include Wash&Cure Machine: None
Include High Speed Resin: None
Included Accessories: None
🚚 Ships in 24 hours

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

£459.00
£619.00 £459.00

Video

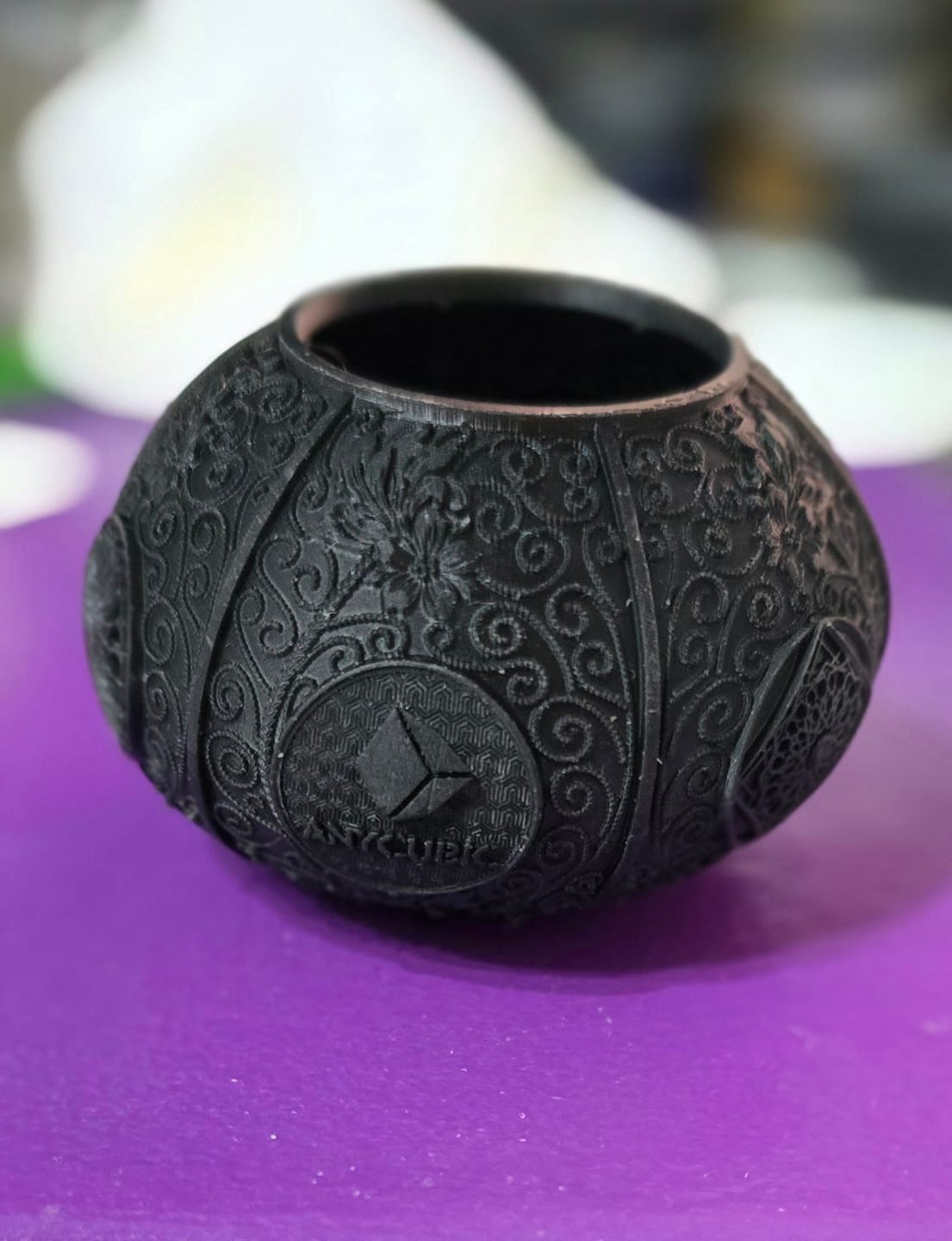

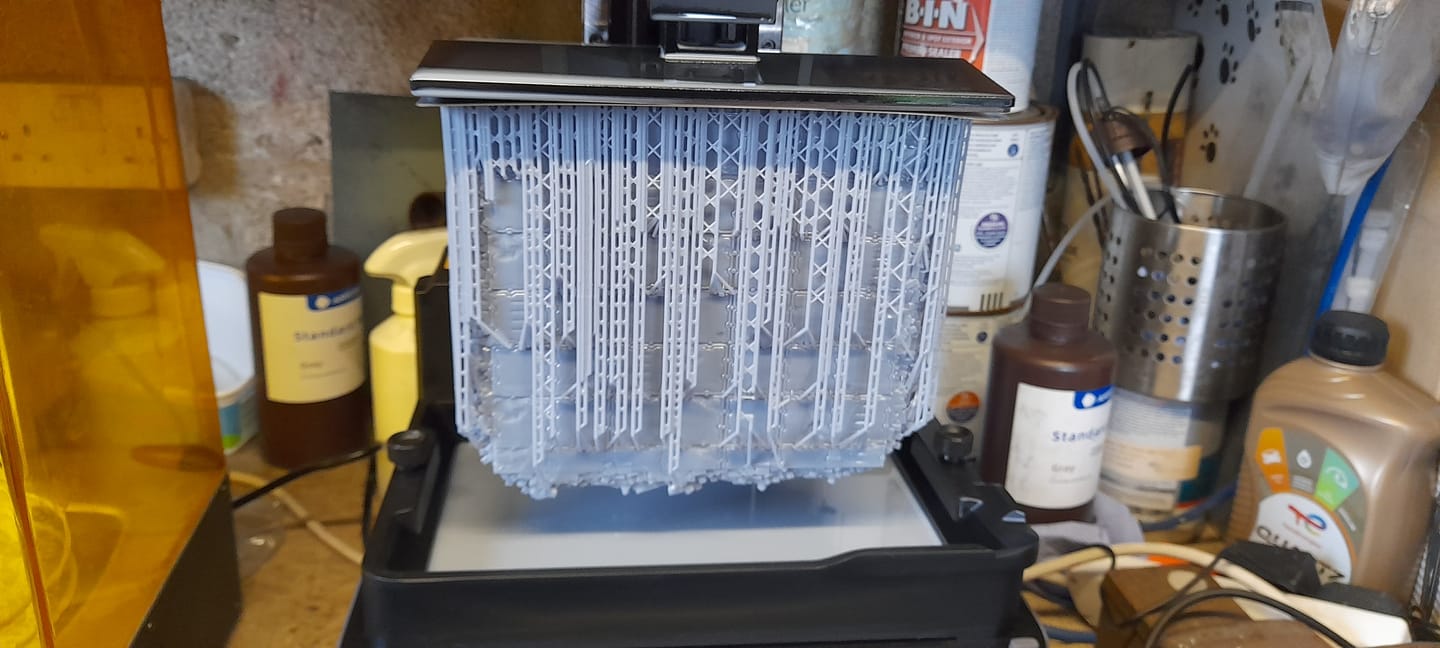

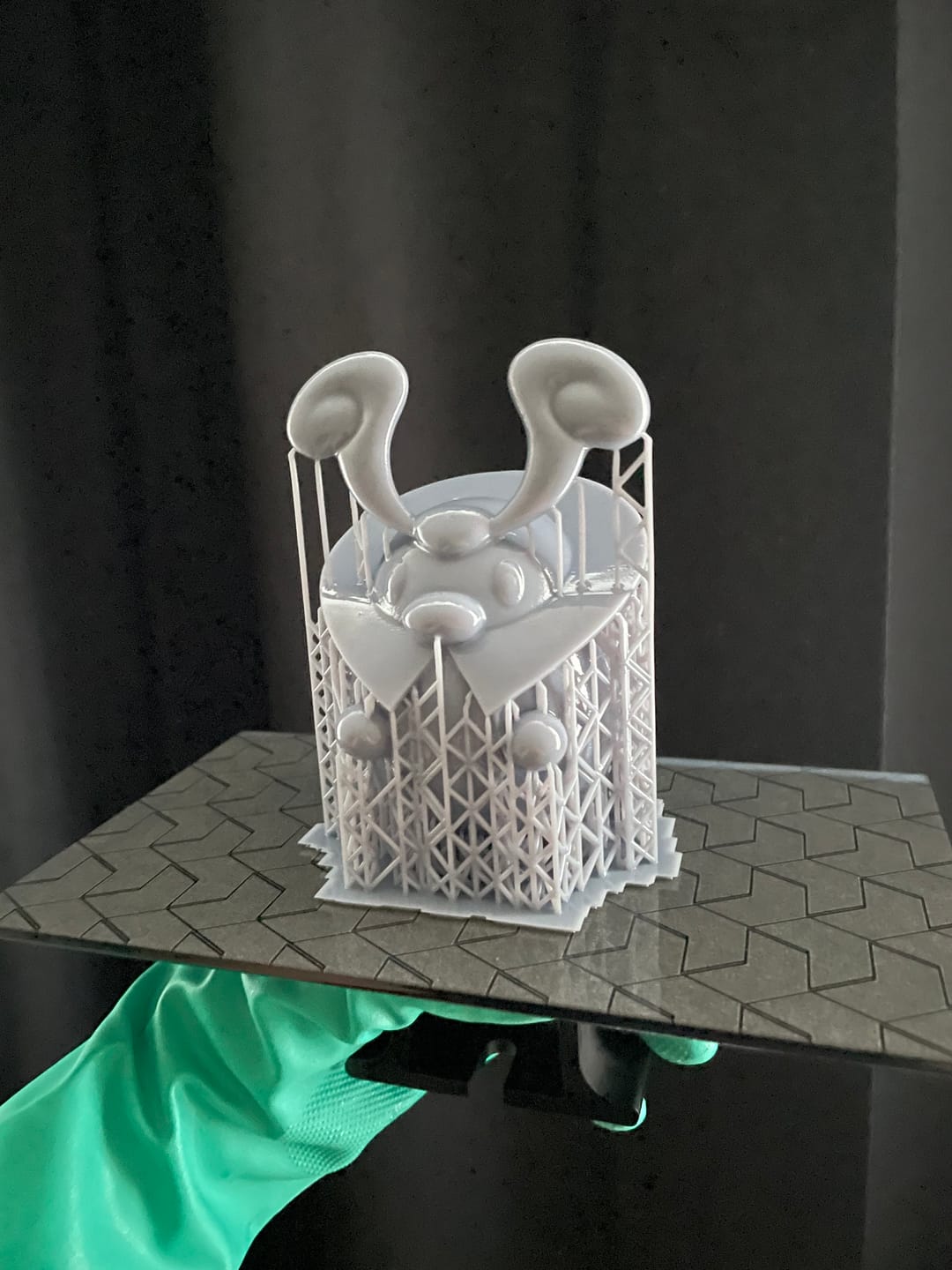

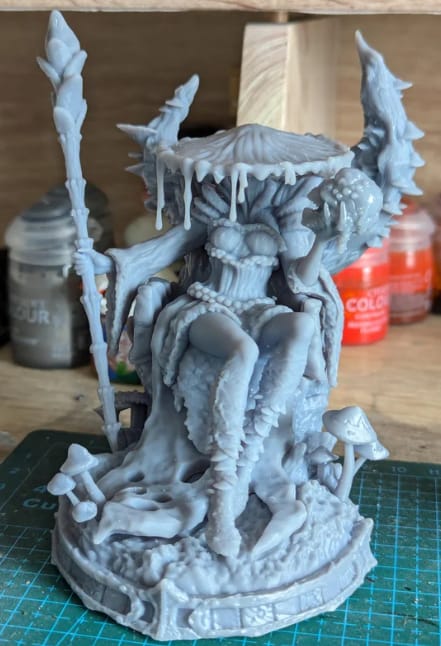

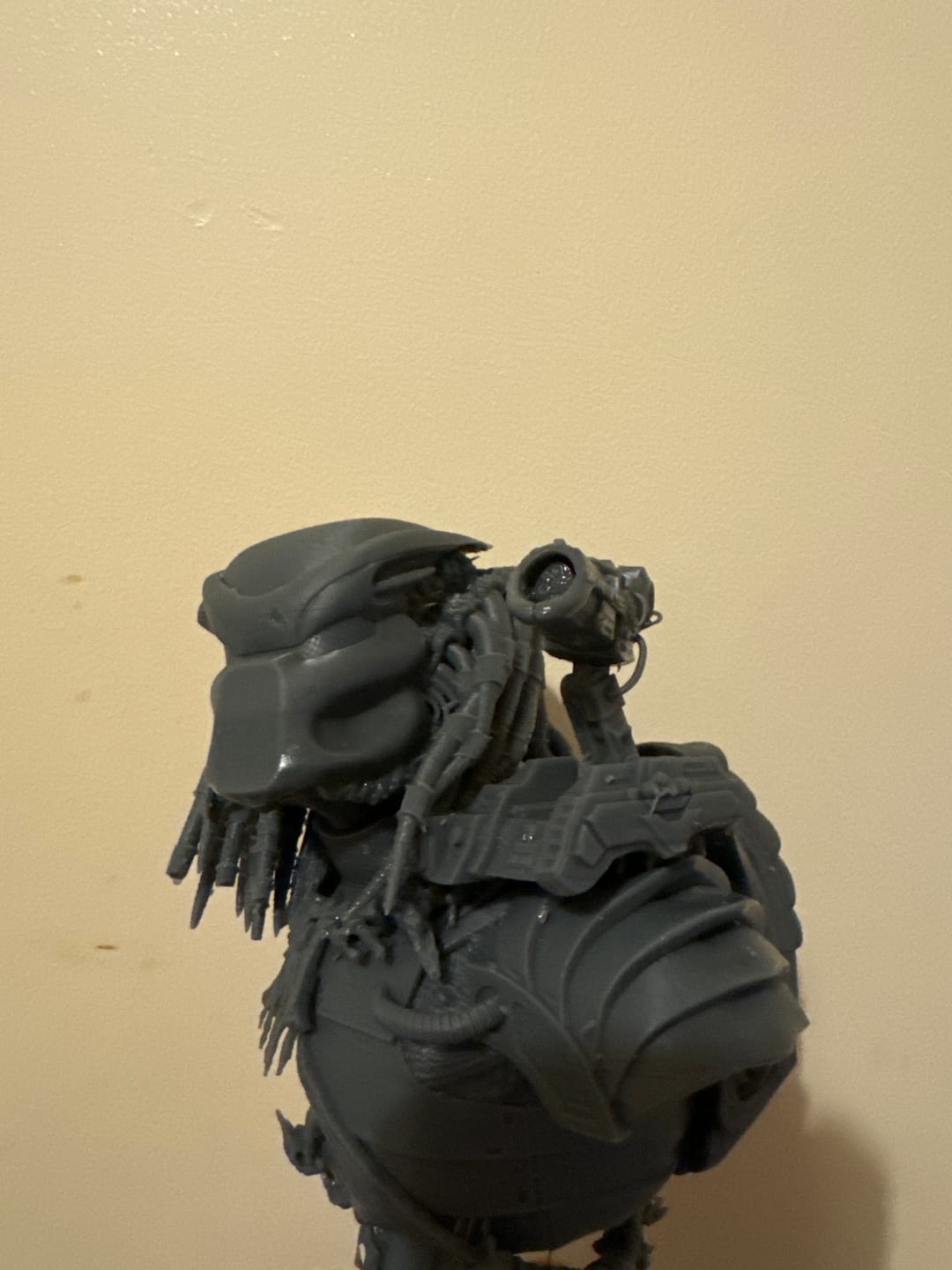

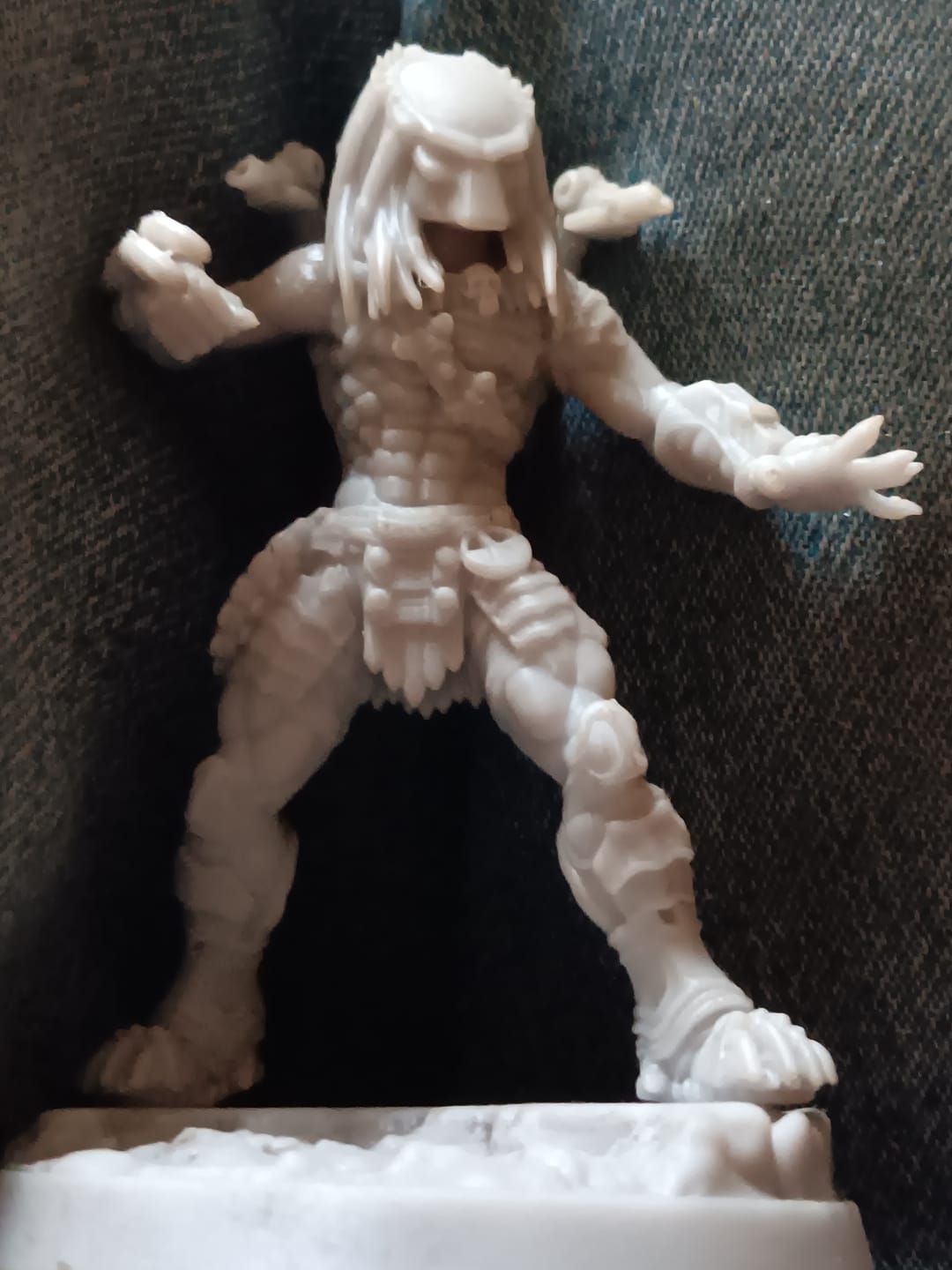

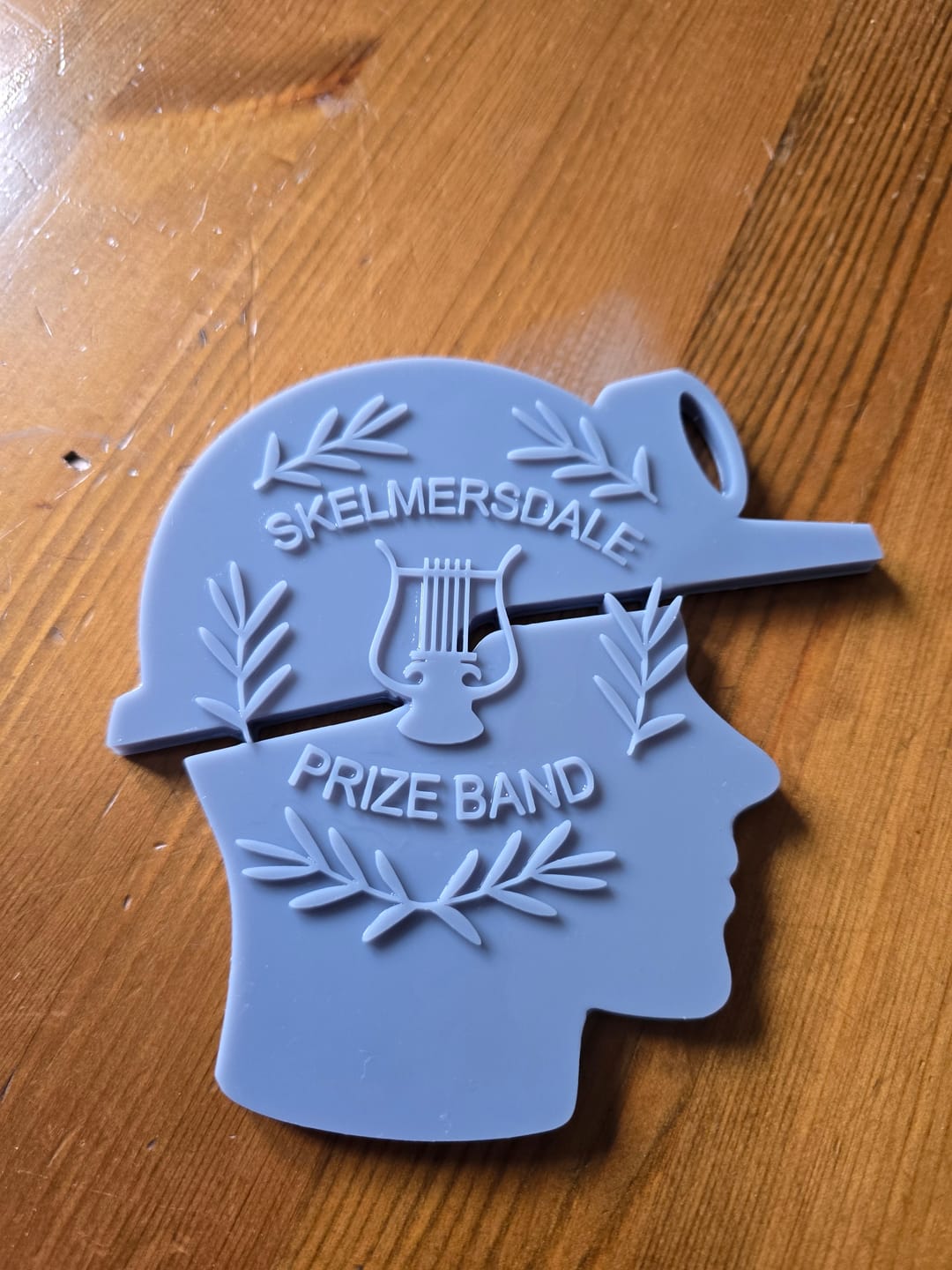

Sample Prints

Specification

Tech specs

  • Build volume

    6.5L

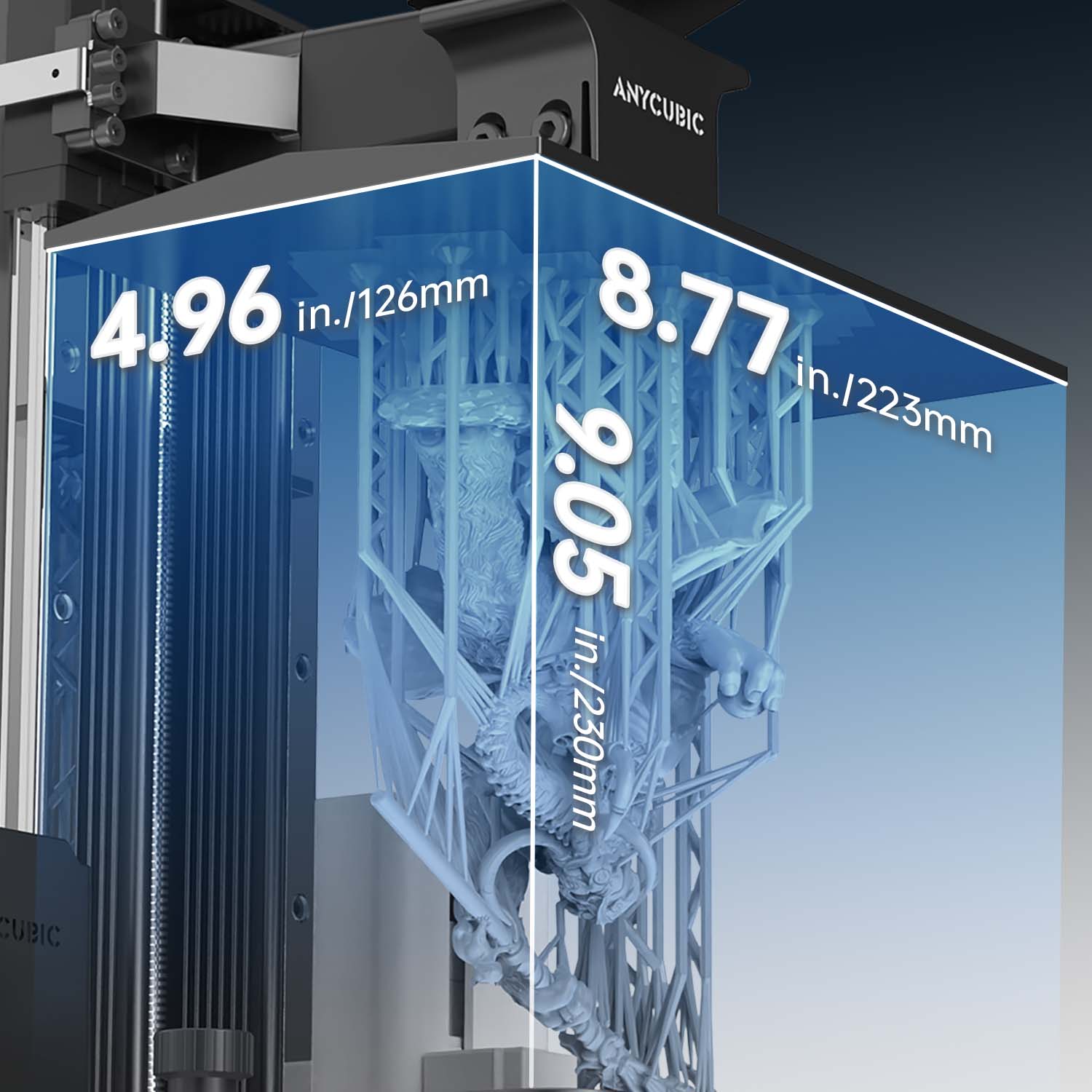

  • Printing volume

    223*126*230mm

  • Printing speed

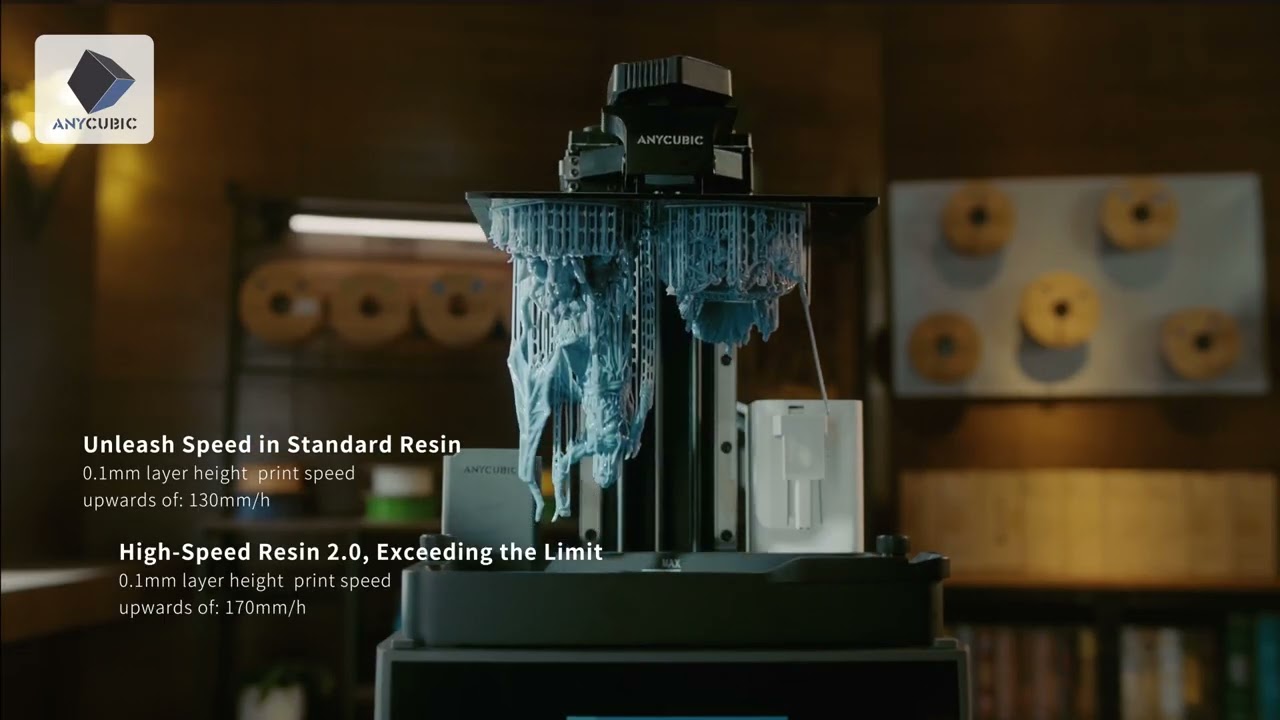

    130mm/hrs, 0.1mm Layer Height Print Speed With Standand Resin; 170mm/hrs, 0.1mm Layer Height Print Speed With High Speed Resin

  • Machine leveling

    Leveling-free

  • Z axis

    TypeT (Transport Ball Screw)

  • Lcd screen size

    10.1", 14K (13320 * 5120)

  • Light source

    LighTurbo 3.0 (COB+Fresnel Lens)

  • Build platform

    Laser-carved Plate

  • Operating screen

    4.3" IPS Touch-control

  • Slicing software

    Anycubic Slicing, CHITU,Tango (CHITU and Tango can be supported around the end of May)

  • Material

    Compatible with kinds of resin (high speed, water-washable, standard, ABS-ike, plant-based, etc.)

  • Machine dimensions

    312x315x520mm

  • Machine weight

    12.8KG

Products Comparison

Picture Photon Mono M7 Photon Mono M7 Pro
Printer Model Photon Mono M7 Pro Photon Mono M7
Build Volume 223*126*230mm 223*126*230mm
Product Dimensions 312*315*520mm 312*315*520mm
Packaging Dimensions 620*395*395mm 620*395*395mm
Net Weight 12.8KG 12KG
Printing Speed Standard Resin 0.1mm layer height: 130mm/h peek speed | High Speed Resin 0.1mm layer height: 170mm/h peek speed Standard Resin 0.1mm layer height: 90mm/h peek speed | High Speed Resin 0.1mm layer height: 150mm/h peek speed
Layer Height ≥0.01mm ≥0.01mm
LCD Screen 10.1-inch Mono LCD 10.1-inch Mono LCD
Printing Resolution 14K 14K
X/Y Axis Resolution 16.8*24.8μm 16.8*24.8μm
Light Source COB light source+ Fresnel lens+Light uniformity algorithm COB light source+ Fresnel lens+Light uniformity algorithm
Light Uniformity ＞90% ＞90%
Light Intensity 5500±10%μW/cm² 4500±10%μW/cm²
Release Film Improved ACF film Improved ACF film
Dynamic temperature control resin vat √ ×
Resin Auto-Fill Unit √ ×
AirPure Optional Optional
Display Screen 4.3-inch colored control screen 4.3-inch colored control screen
Machine leveling Leveling-free Leveling-free
Slicing Software Photon Workshop Photon Workshop
File Transfer USB & WiFi & Anycubic App USB & WiFi & Anycubic App

In The Box

  • Photon Mono M7 Pro

  • Print platform

  • Resin vat

  • Scraper*2

  • Screen protector kit

  • USB drive *1

  • Power cord

  • Protective equipment

  • Funnel*5

  • Instruction manual

  • Hex key set

  • Leveling paper

  • Auto-fill unit

  • WiFi antenna

FAQs

Q: What is the hottest temperature that the heater can heat the resin to? Is the temperature control adjustable?

A: It is adjustable.The default temperature is 25 centigrade, and can be set at 20-40 centigrade.

Q: Can the auto fill unit be used while the cover is on?

A:Yes it can be used while the cover is on.

Q: Do i need to buy high speed resin for the fast prints? Or this can print fast with the normal resin?

A: Photon Mono M7 Pro can support both High Speed Resin and Standard Resins. The print speed is different. Max Speed 130mm/hr, 0.1mm Layer With Standand Resin; Max Speed170mm/hr, 0.1mm Layer With High Speed Resin.

Q: What hardware is required when using a printer to clean and cure printed parts?

A: To clean and cure printed parts using a printer, you will need Cleaning Kit and Wash & Cure Machine.

Q: How about finding out what resins this machine can support and where to find the resin settings for this 3D printer?

A: For information on resin settings, please visit: Resin Settings for Anycubic 3D Printers.

Q: Where can I download the Wireless Speaker Kit Model?

A: You can download model here. For more details, please check Wireless Speaker Kit.
