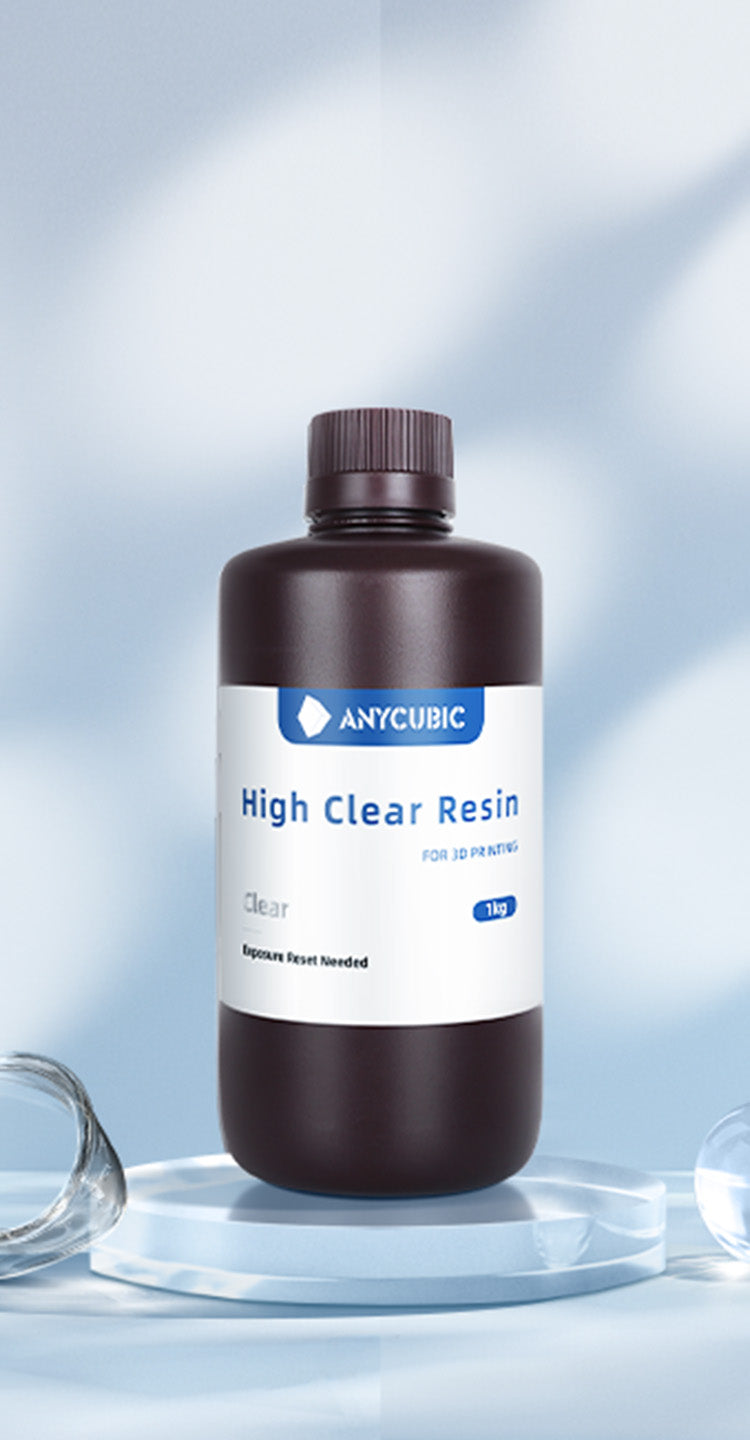

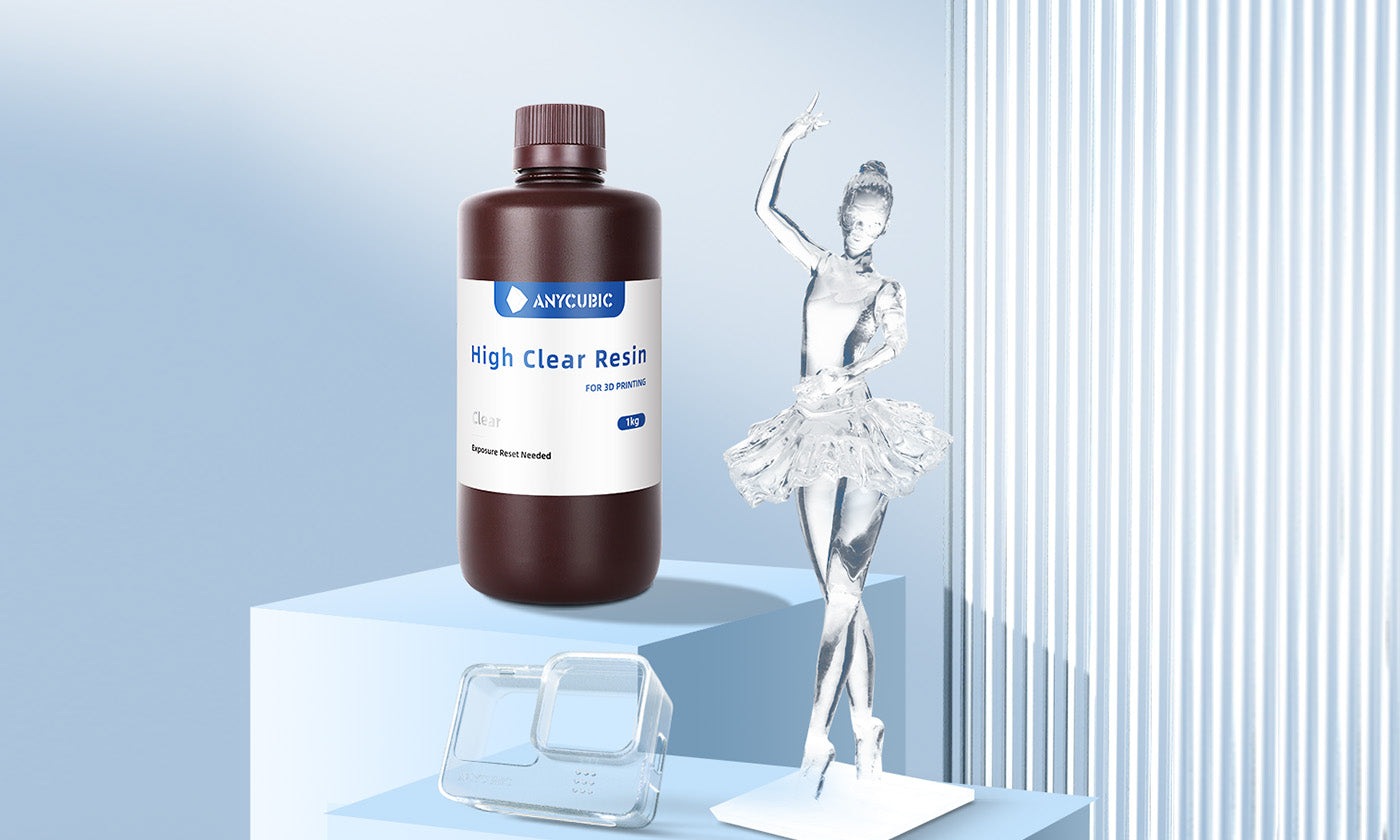

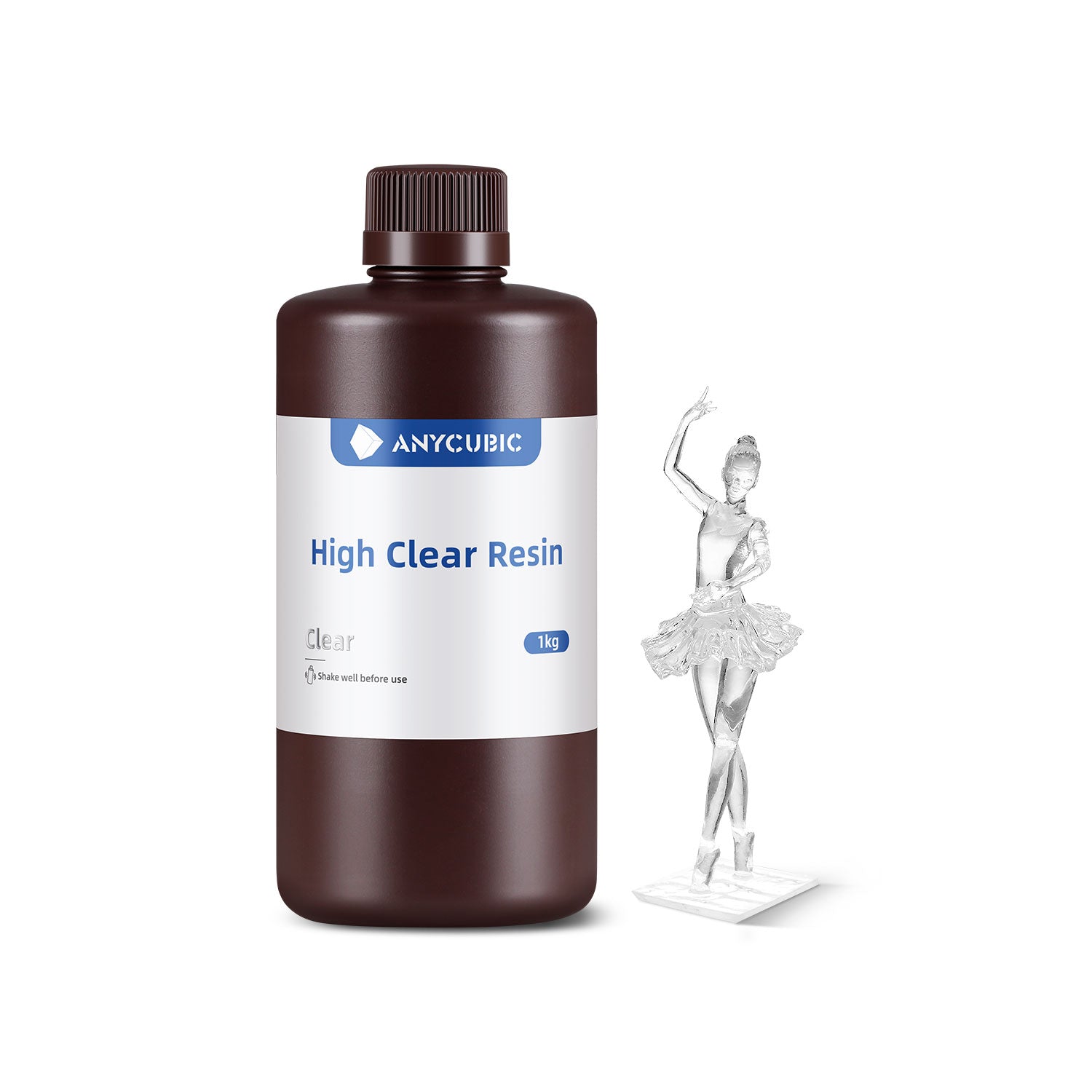

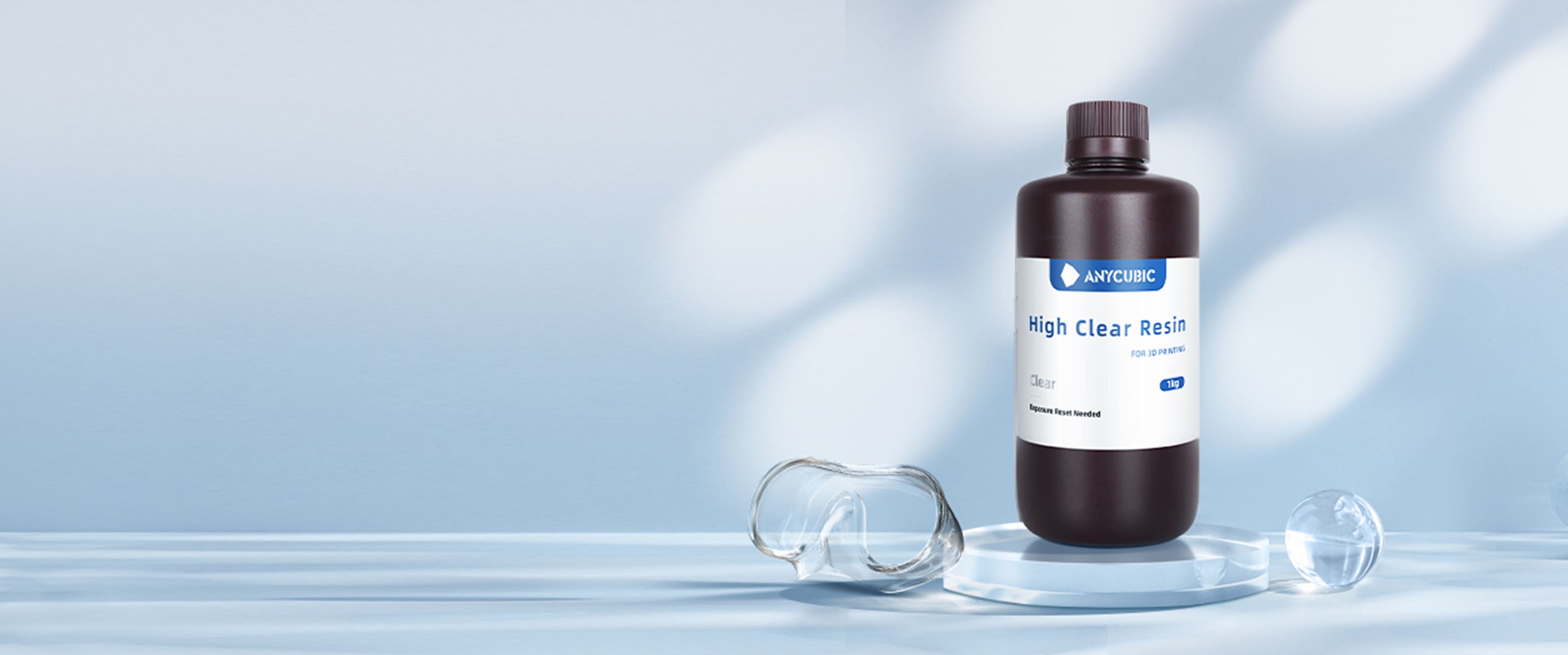

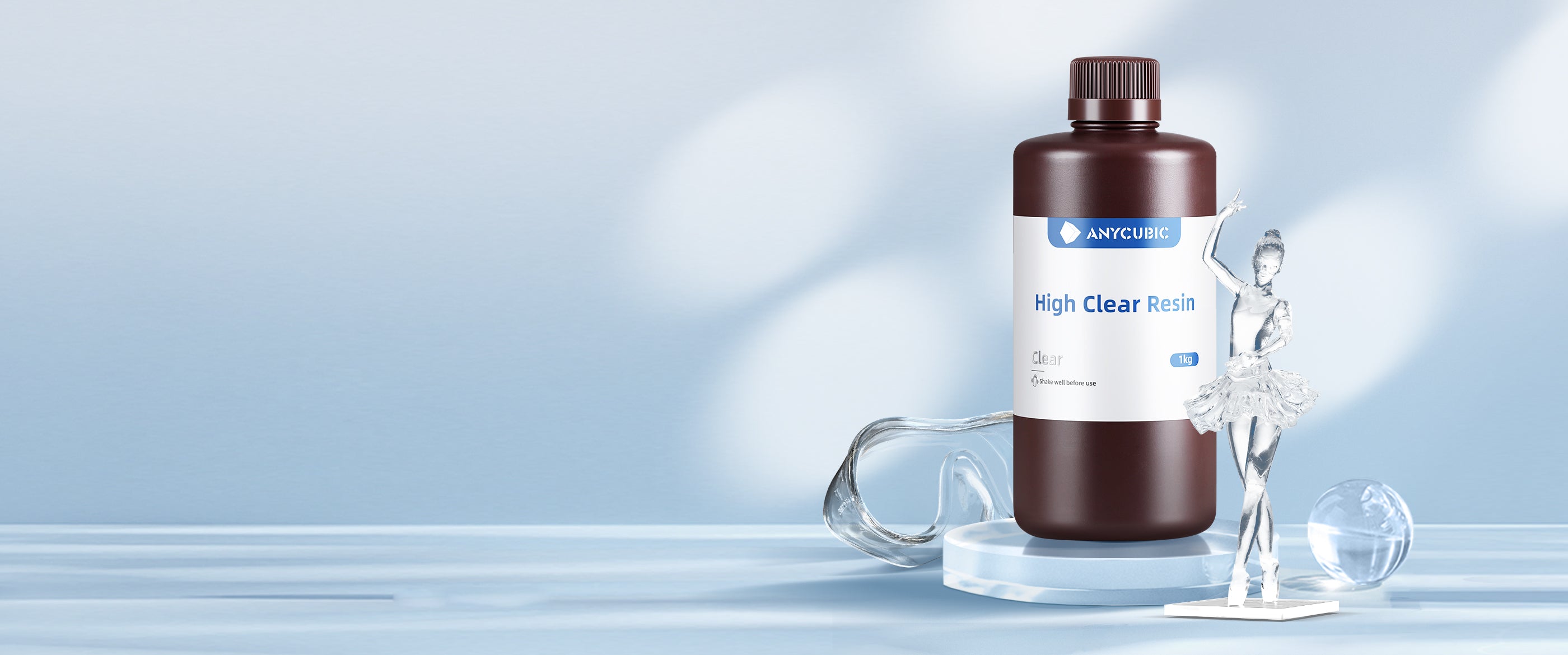

High Clear Resin

Regular price £32.99
Regular price Sale price £32.99
Shipping calculated at checkout.

Product Features

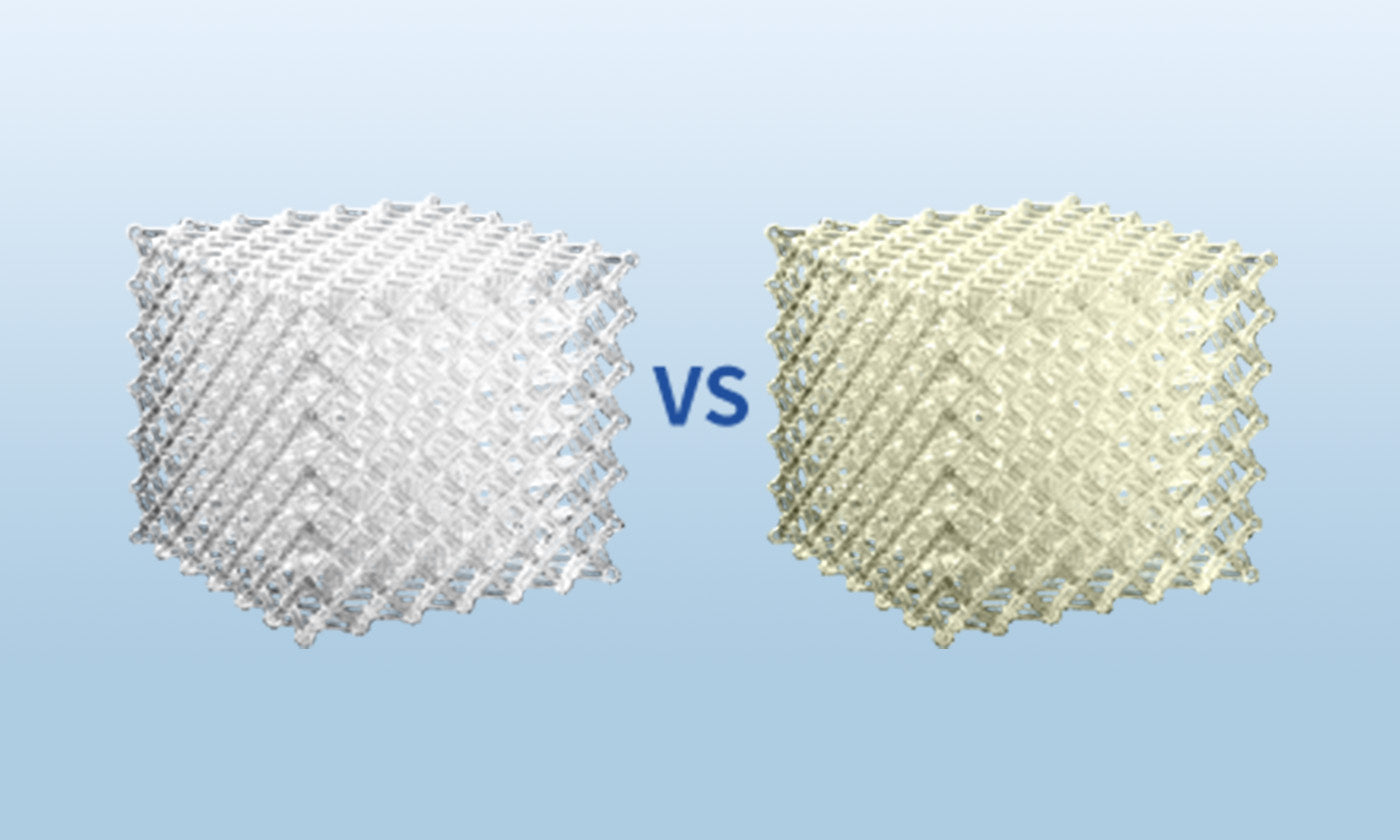

● Resist Yellowing

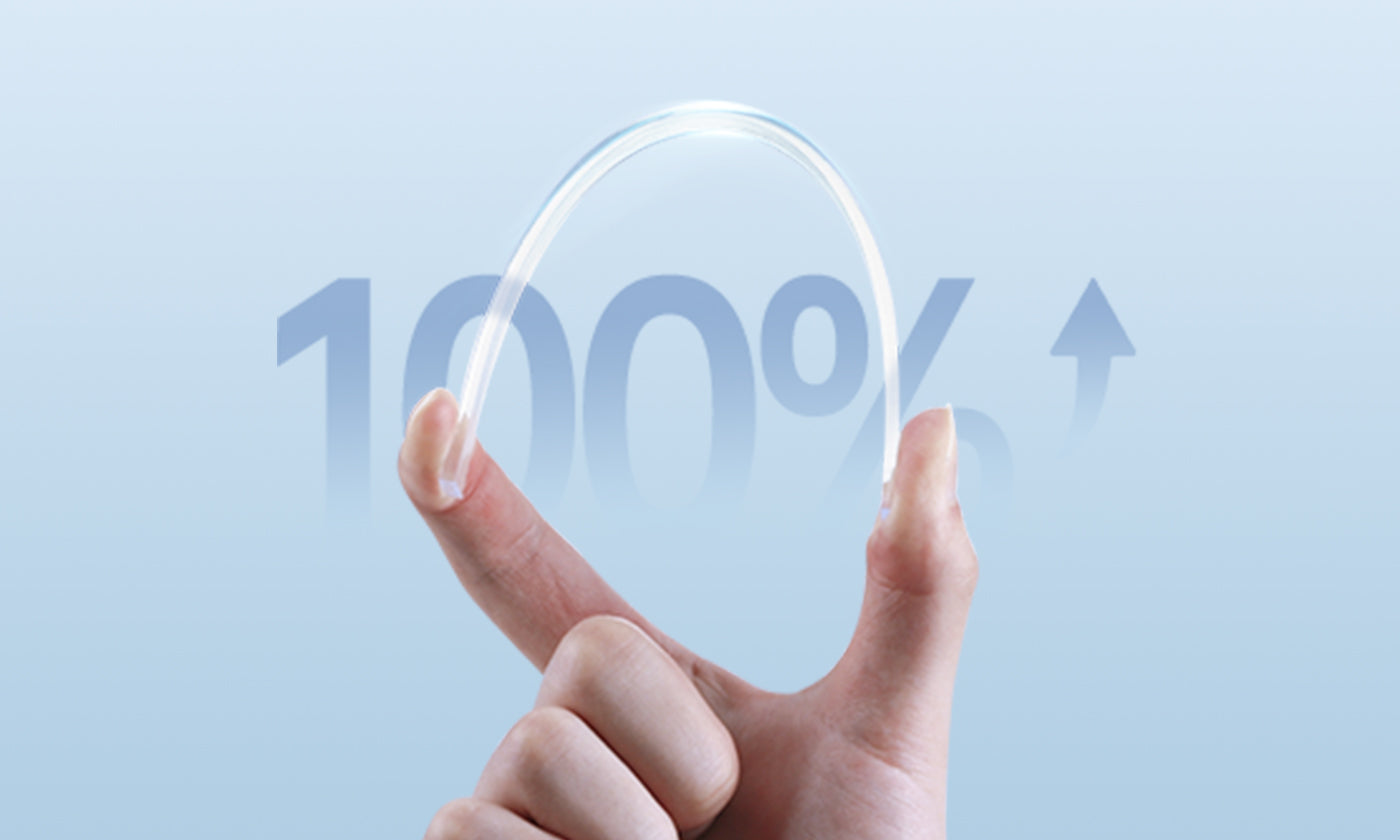

● Tough and Resilient
● Light Odor and Safe
🎁 Get More, Pay Less: Buy 3kg for a Discount!
🔥 Purchase 3kg for a special price of £24.9/kg
Size: 1KG
COLOR: Clear
SHIPPING TO: UK

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

Regular price £32.99
Regular price Sale price £32.99

Resin Parameters

UV wavelength 365-405nm Elongation at break 14.6%
Density 1.05-1.25g/cm³ Molding shrinkage 3.72-4.24%
Viscosity 266 cP·mPa·s Flexural strength 30.3 MPa
Yellowing resisting time >30 Minutes Hardness 78D
Flexural modulus >798 MPa Tensile strength 28.1 MPa
Resin wash Alcohol Conservation period 12 Months

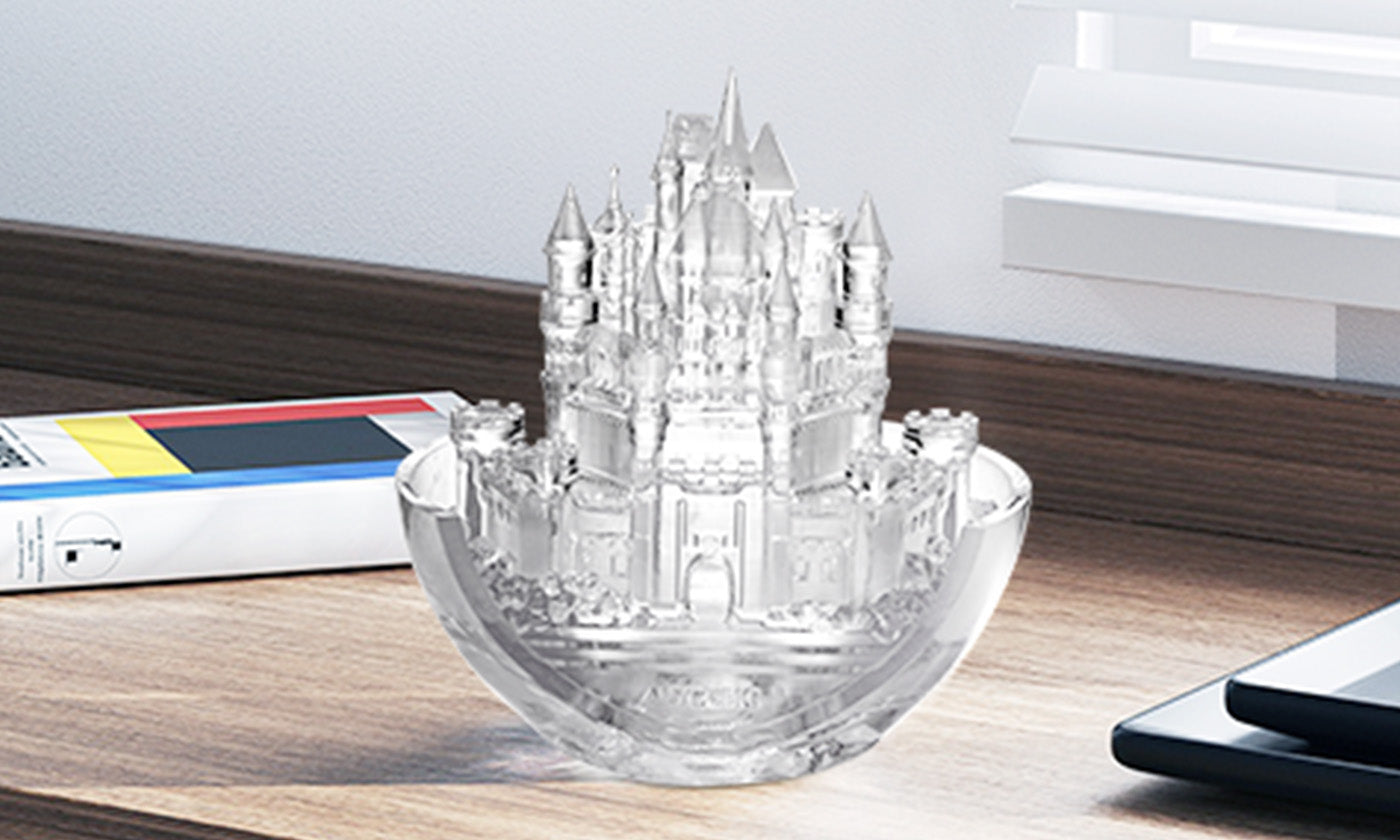

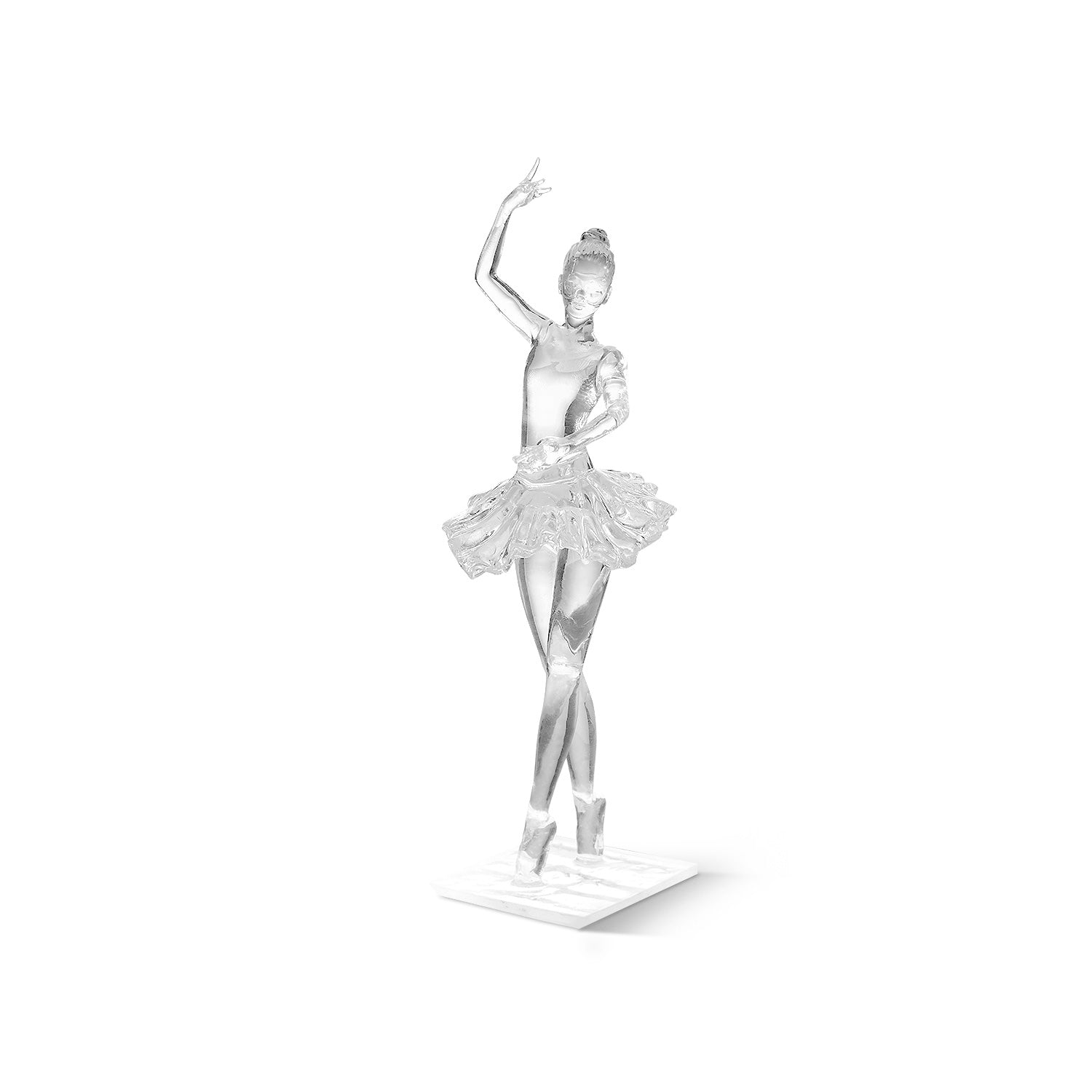

Model Print

Recommended Printing Parameters

Printer Model Layer Thickness Exposure Time Light-Off Time Bottom Exposure Time Bottom Layer Anti-Aliasing Level Z Lift Distance Z Lift Speed Z Retract Speed
Photon Mono M7 Pro 0.05mm 4s 2s 25s 4 1 8mm 6mm/s 6mm/s
Photon Mono M5s Pro (Normal printing mode) 0.05mm 4s 0.5s 35s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5s Pro (Fast printing mode) 0.1mm 4.5s 0.5s 35s 5 1 5mm 20mm/s 20mm/s
Photon Mono M5s (Normal printing mode) 0.05mm 5s 0.5s 35s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5s (Fast printing mode) 0.1mm 6s 0.5s 40s 4 1 5mm 20mm/s 20mm/s
Photon Mono M5 0.05mm 5s 0.5s 35s 5 1 8mm 6mm/s 6mm/s
Photon M3 Max 0.05mm 4.5s 2.5s 30s 6 1 10mm 2mm/s 3mm/s
Photon Mono X 6Ks 0.05mm 4s 0.5s 20s 5 1 8mm 2mm/s 3mm/s
Photon Mono X2 0.05mm 4s 0.5s 25s 5 1 8mm 2mm/s 3mm/s
Photon Mono 2 0.05mm 4.5s 1s 25s 5 1 6mm 4mm/s 6mm/s
Photon D2 0.05mm 4.5s 1s 35s 4 4 5mm 2mm/s 2mm/s
Photon M3 Plus 0.05mm 4s 0.5s 28s 4 1 6mm 6mm/s 6mm/s
Photon M3 0.05mm 4s 0.5s 25s 4 1 6mm 3mm/s 4mm/s

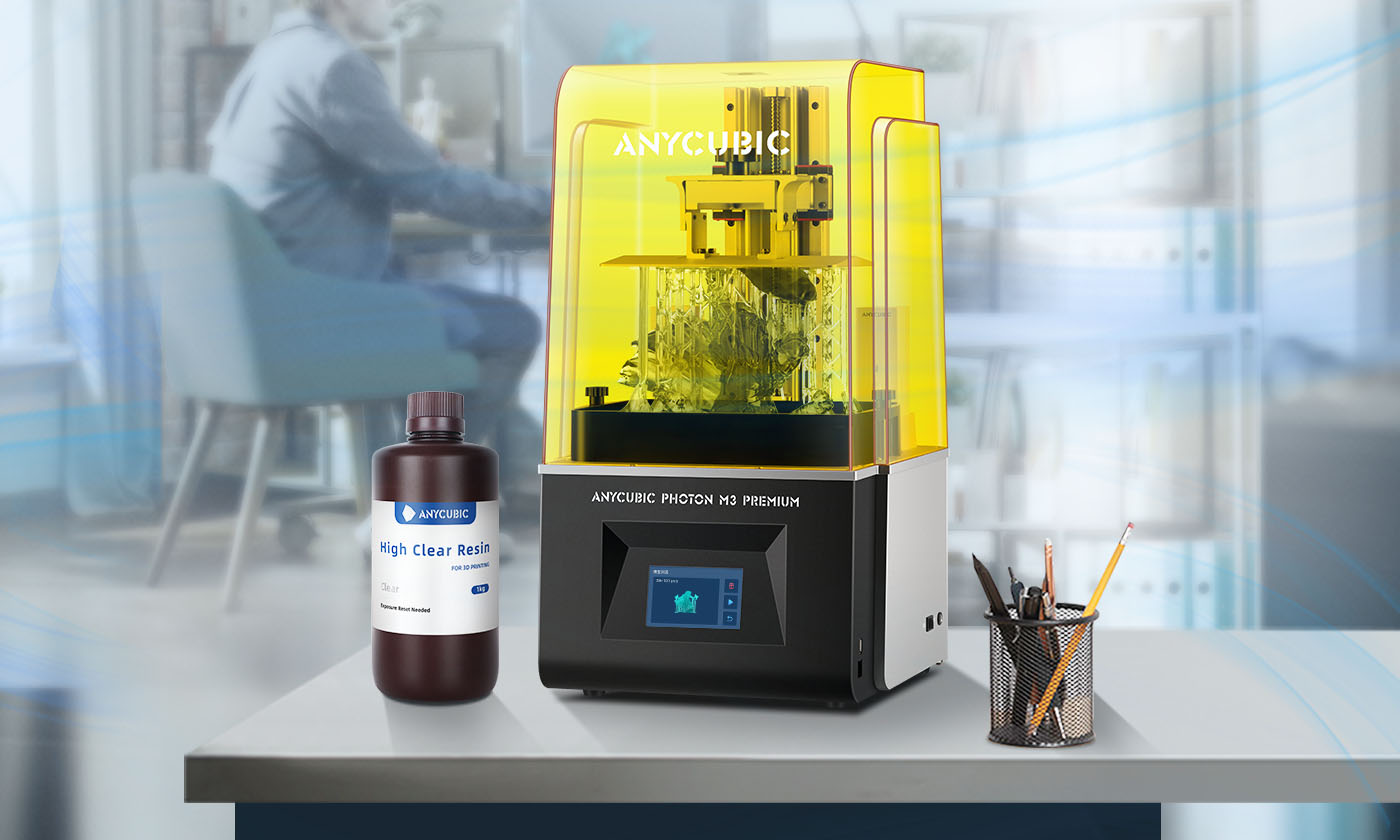

Photon M3 Premium 0.05mm 4s 0.5s 25s 3 1 8mm 6mm/s 6mm/s
Photon Ultra / / / / / / / / /
Photon Mono X 0.05mm 4s 0.5s 28s 4 1 8mm 2mm/s 3mm/s
Photon Mono 4K 0.05mm 4s 0.5s 40s 6 1 6mm 4mm/s 6mm/s
Photon Mono X 6K 0.05mm 4s 0.5s 28s 6 1 8mm 2mm/s 3mm/s
Photon Mono SQ / / / / / / / / /
Photon Mono SE / / / / / / / / /
Photon Mono 0.05mm 4s 0.5s 40s 6 1 6mm 4mm/s 6mm/s
Photon S 0.05mm 12s 1s 60s 6 1 6mm 3mm/s 3mm/s

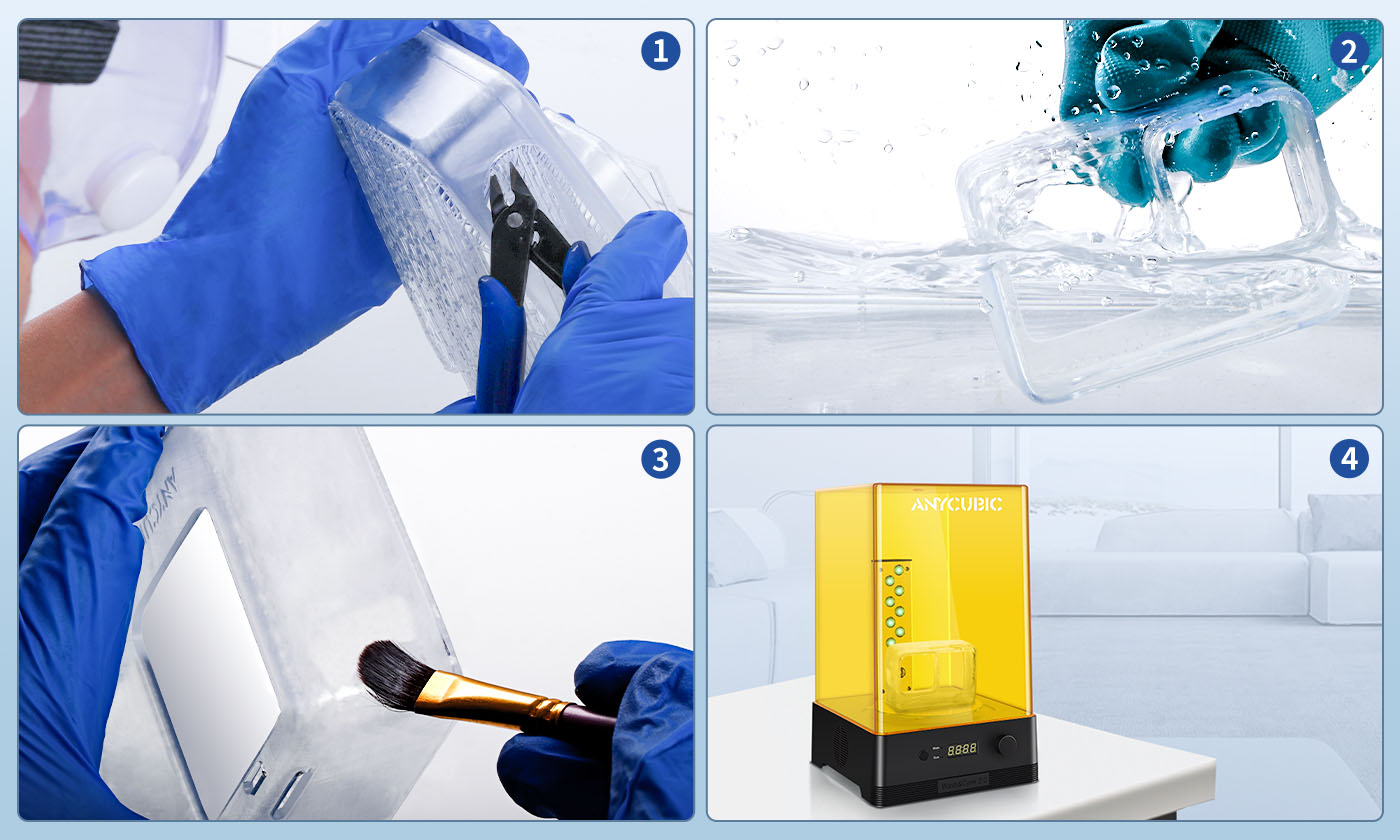

Model Varnishing

  • Model support removal

  • Alcohol wash

  • Apply High Transparency Resin/varnish

  • Cure for 2 minutes

Instructions for Use

(1) Before use:
Shake the liquid resin before use; Clean the resin tank and the molding platform to keep the bottom of the resin tank in lighttransmission.

(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements; Select the correct print parameters and settings for printing.

(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonalpliers, tweezers, containers, gloves; ethanol(≥95%), lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then takenout and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C. Proper processing, such as removing support, polishing, coloring, etc.

Precautions

  1. The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light to avoid high temperature or sunlight.
  2. Suggested operating temperature is 18-35'c, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).
  3. If the resin pigment settles, it can be used after stirring or shaking.
  4. In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
  5. To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
  6. To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
    (1) The intensity of mercury lamp or LeD light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
    (2)The exposure time in the sun (summer) is around 1 hour;
    (3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
    (4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive material.

Ps: Material properties willvary depending on the molding equipment, post-curing method and testing equipment. For safetyinformationplease refer to the MSDS of this product. lf you encounter any problems while using, please feel free to contact us.
