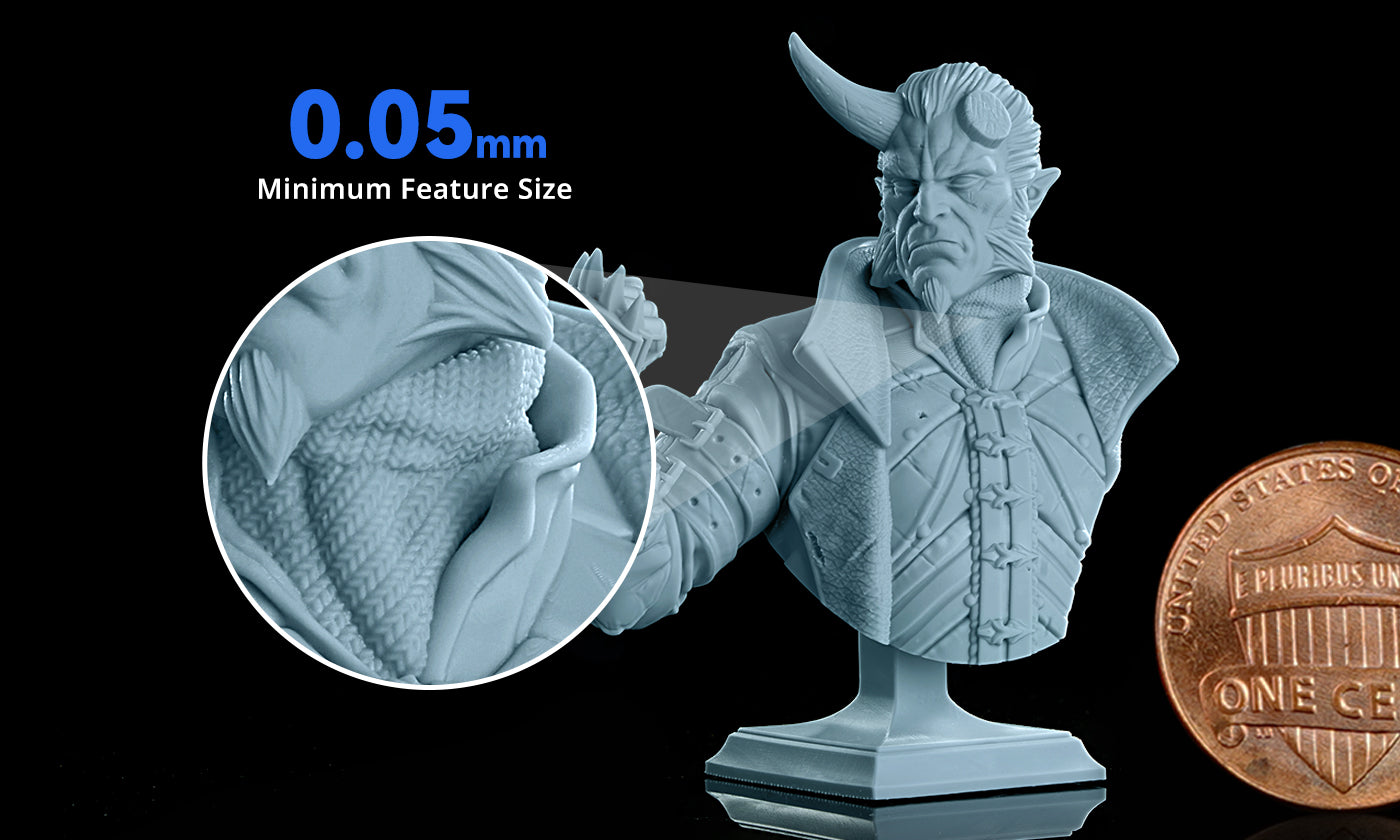

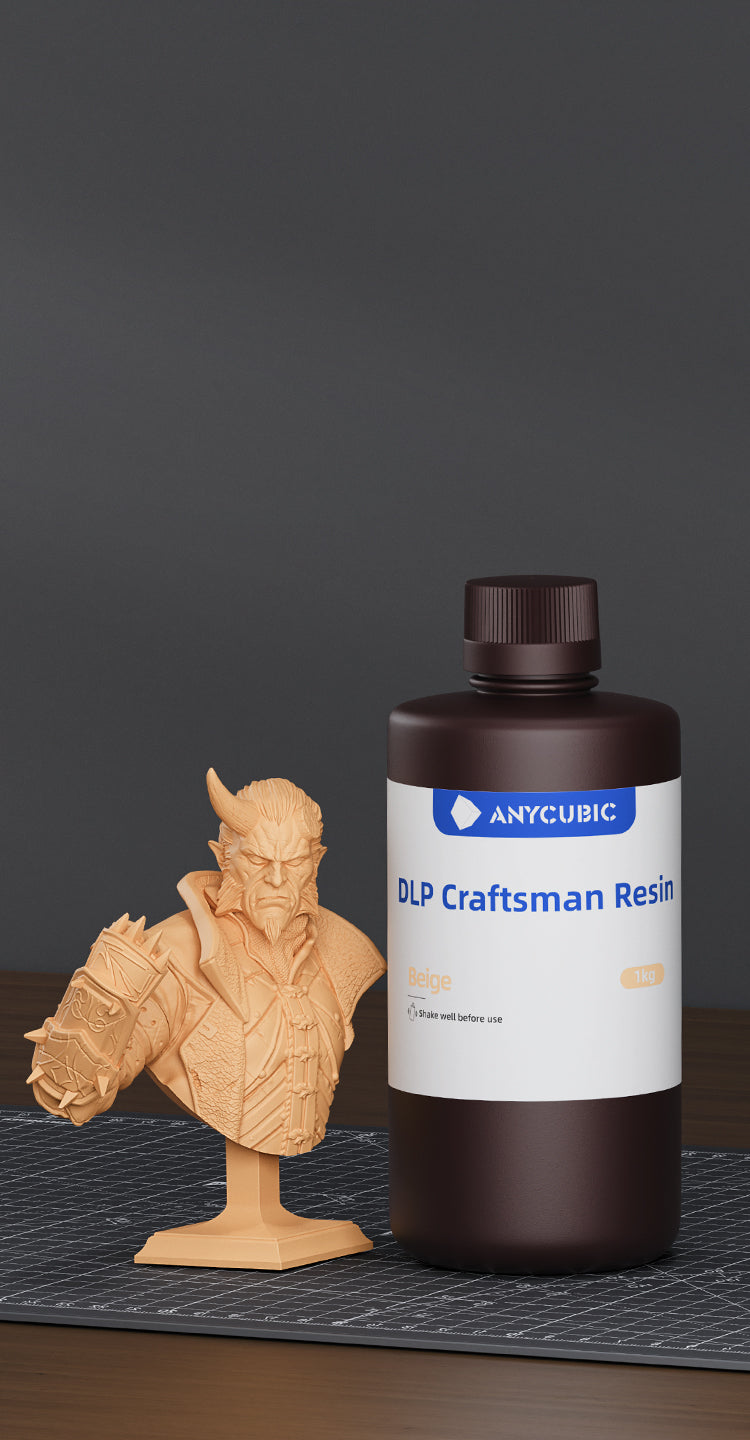

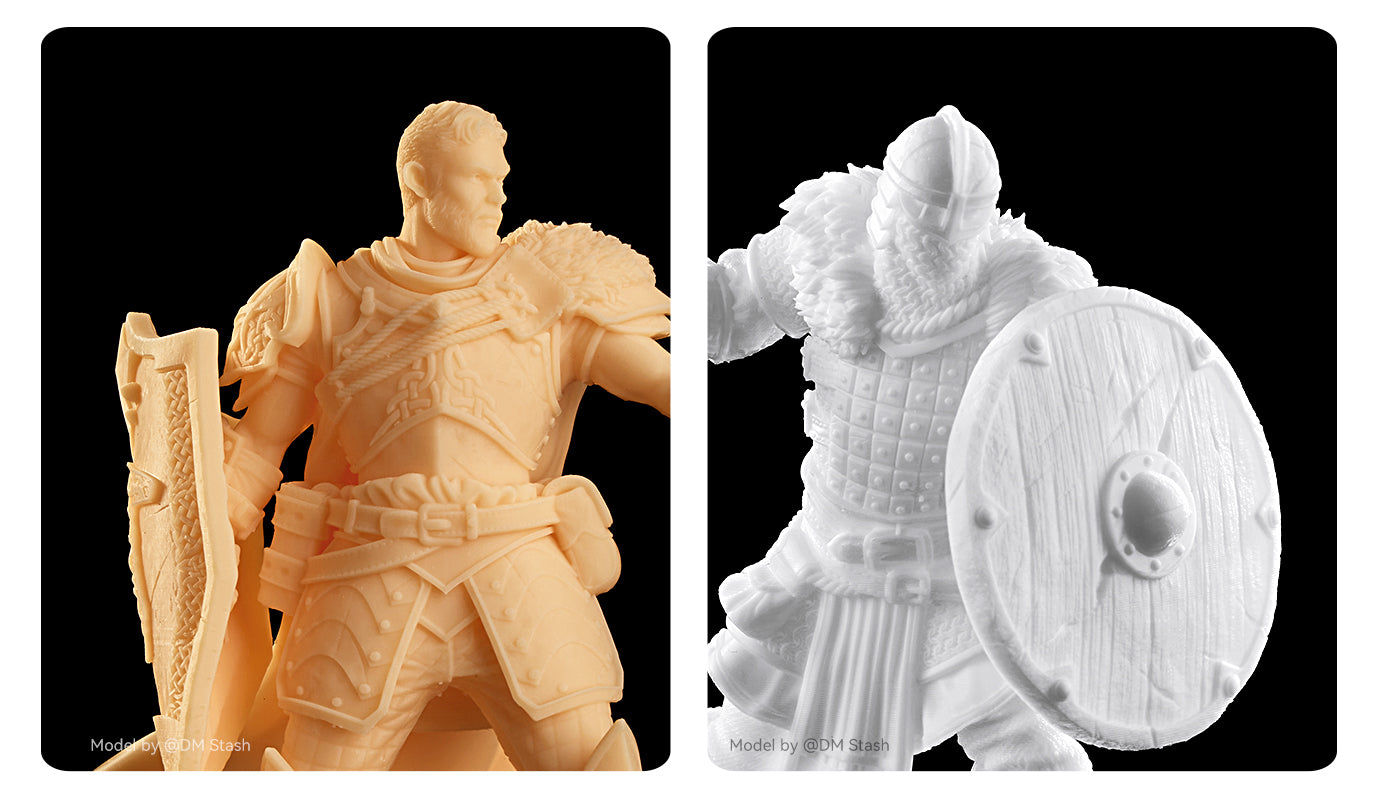

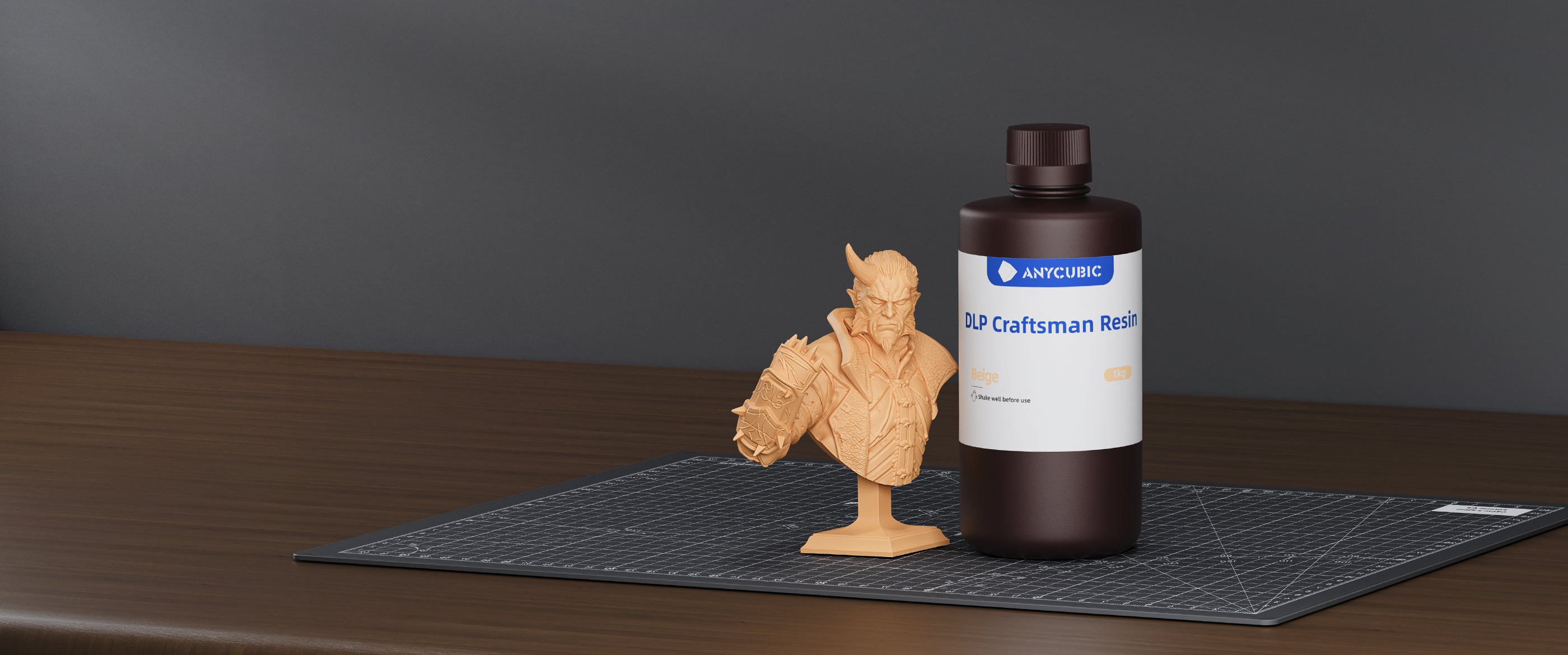

High Precision, Sharp Details
Anycubic DLP Craftsman Resin accurately reproduces ultra-fine structures down to 0.05mm, clearly capturing intricate clothing folds, complex muscle lines, and accessory textures. It's ideal for detailed figurines, patterned jewelry designs, or dental restoration models.

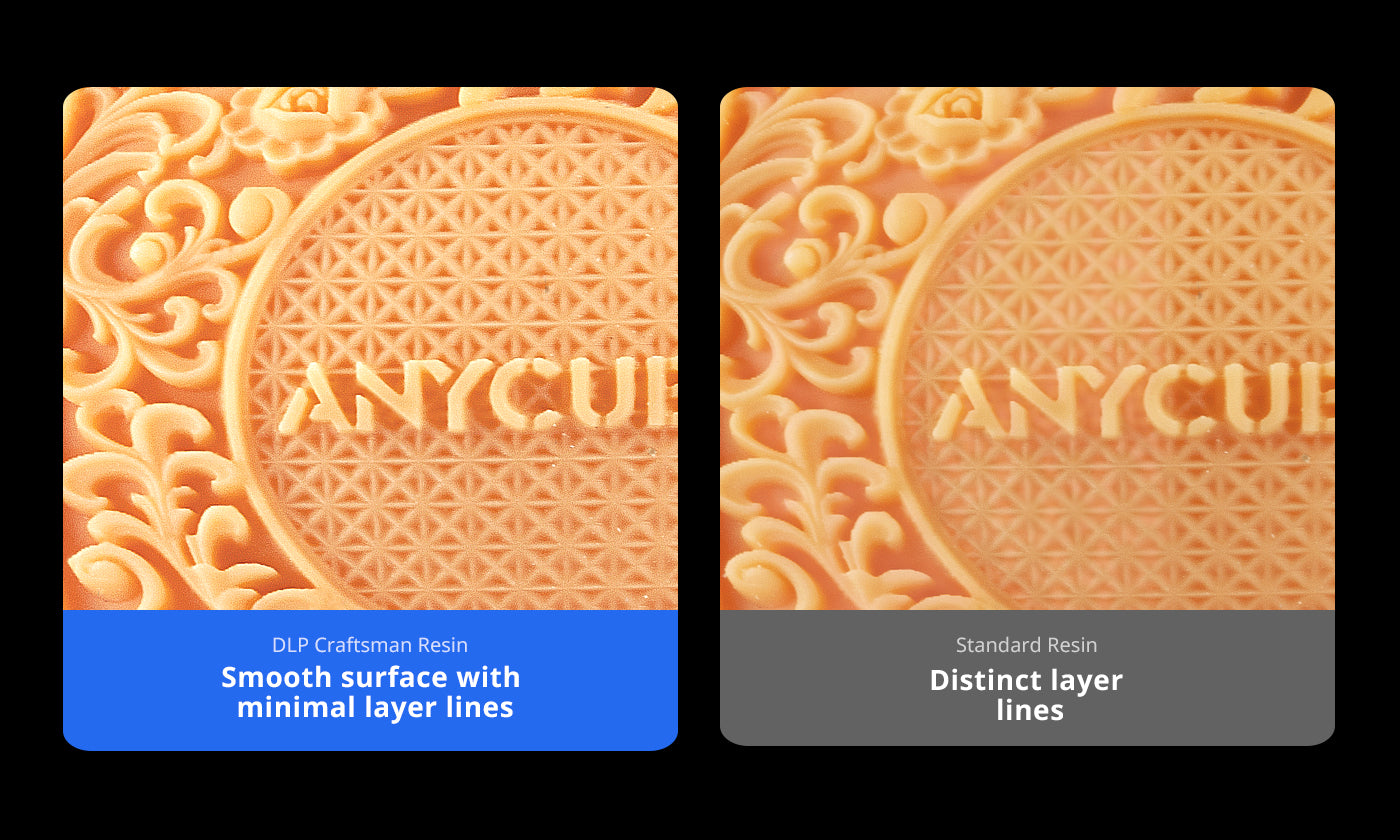

Matte Texture, Highly Aesthetic
Anycubic Craftsman DLP Resin packs 40% nano-ceramic powder (lab-tested) to maximize internal light scattering. This actively eliminates pixel lines while delivering museum-grade matte surfaces with tactile depth.

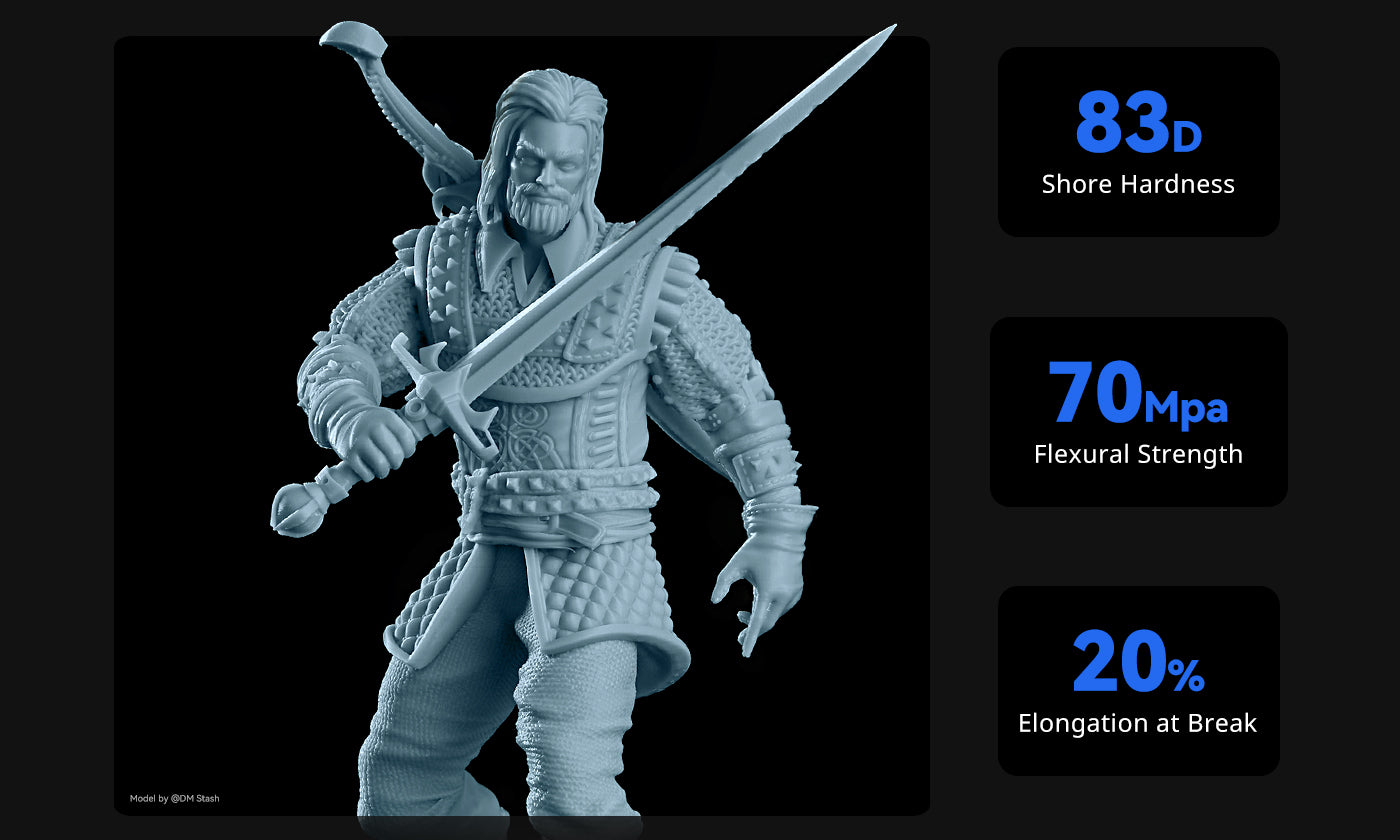

Balanced Toughness & Resilience
This advanced resin formulation demonstrates exceptional mechanical properties with a Shore Hardness of 83D, Flexural Strength of 70 MPa, and 20% Elongation at Break. It features easy support removal for hassle-free post-processing. The material offers superior deformation resistance, enabling even micro-components and thin-walled structures to withstand impact without fracturing.

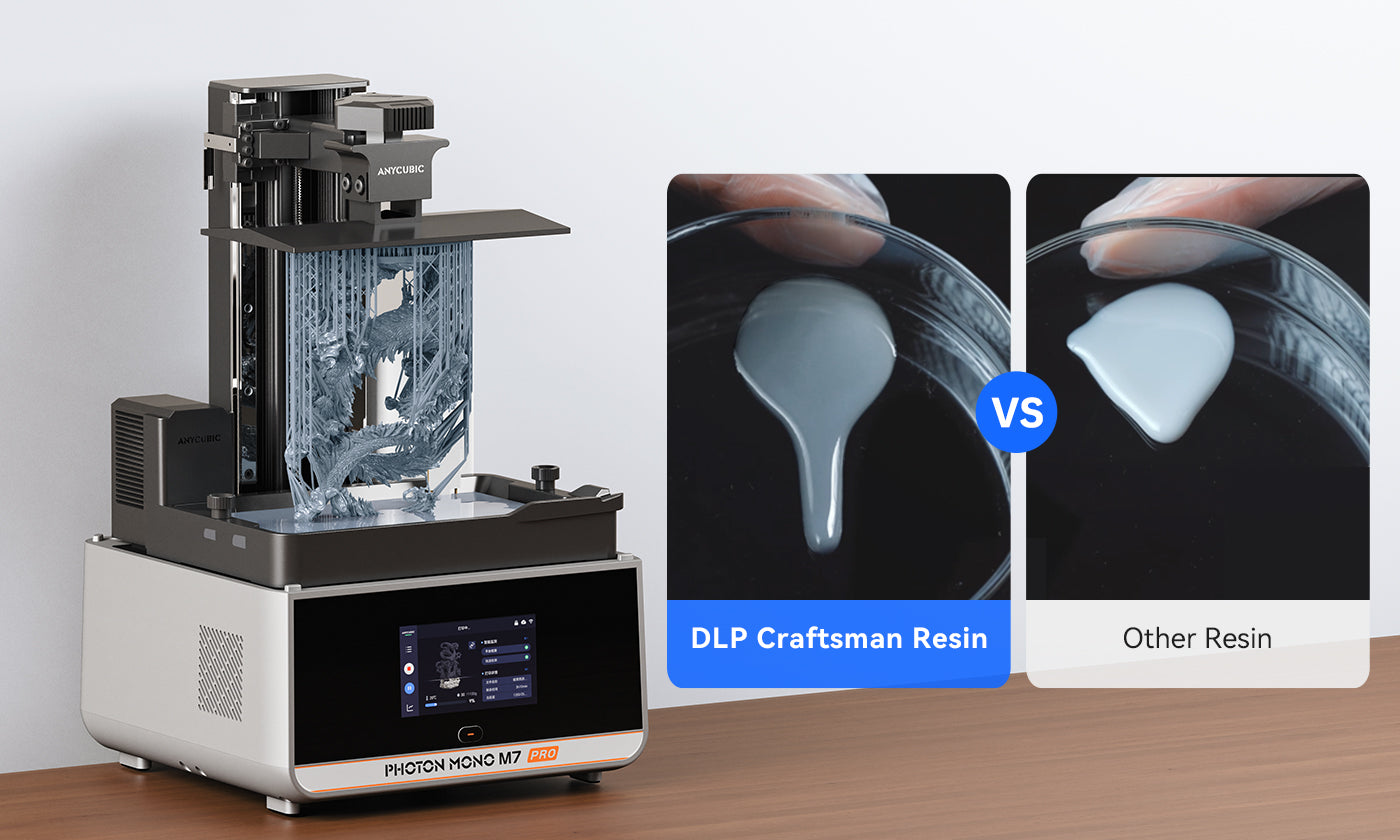

High-Fluidity, Faster Curing
Anycubic resin features low viscosity and excellent flow properties, significantly reducing wait times to boost printing efficiency. Its rapid bubble dissipation captures intricate model textures with high fidelity while delivering smoother surfaces. Enhanced bed adhesion further minimizes print failures and model detachment risks

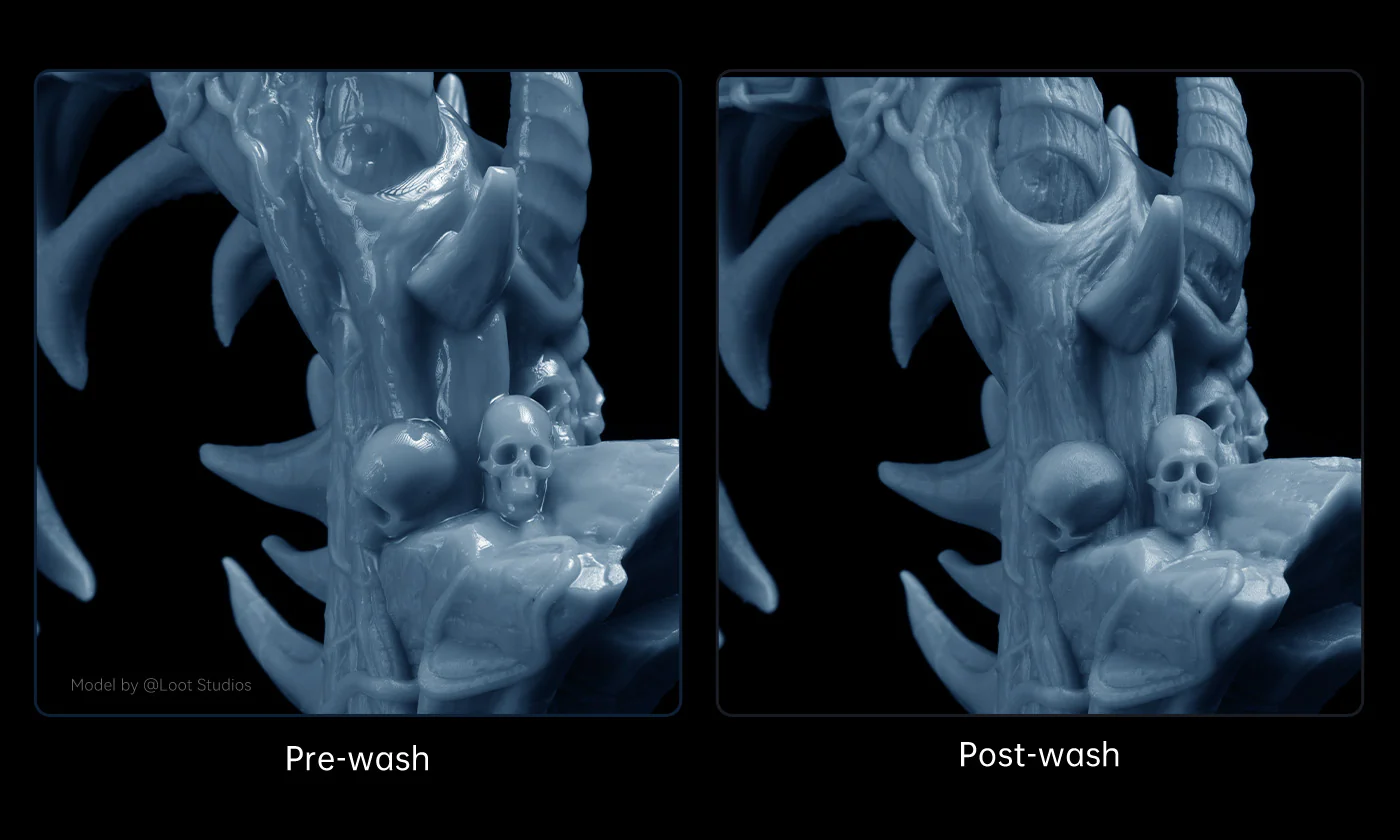

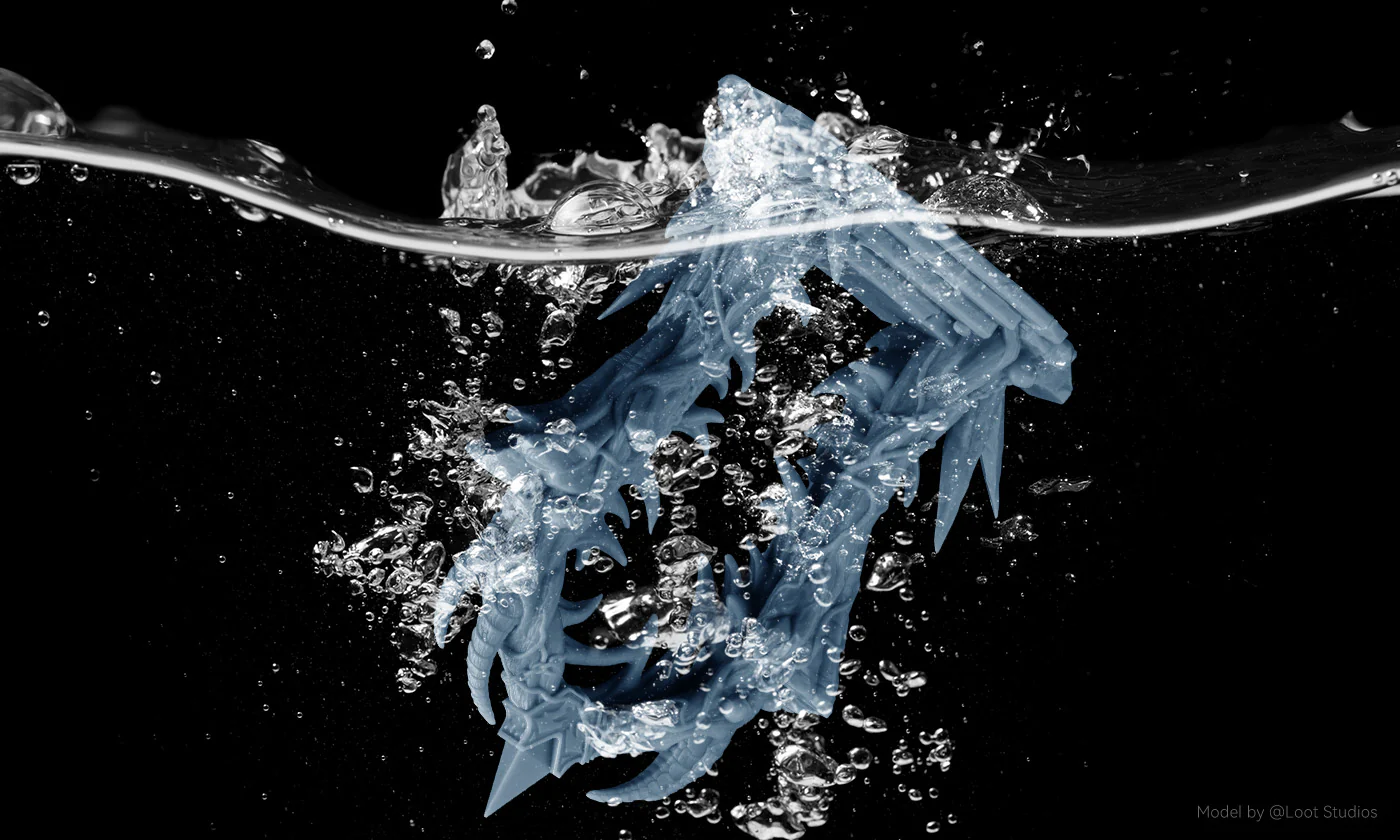

Easy to Clean
Anycubic Craftsman DLP Resin features an optimized formula for effortless cleaning with reduced alcohol consumption, streamlining post-processing.
Minimal Odor & Eco-Friendly
Anycubic resin features a specially engineered low-odor formulation, delivering zero irritation for a pleasant, comfortable printing experience.

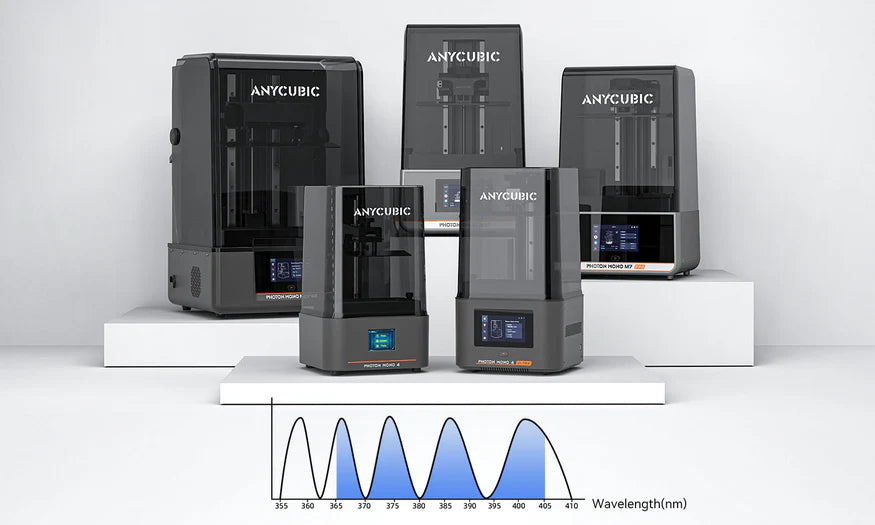

Wide Compatibility
It is compatible with all LCD/DLP printers that use 405nm UV light curing technology and works best with Anycubic LCD printers.
File Download
Recommended Printing Parameters
| Printer Model | Layer Thickness | Exposure Time | Light-Off Time | Bottom Exposure Time | Bottom Layers | Anti-Aliasing Level | Z Lift Distance | Z Lift Speed | Z Retract Speed |
| Photon P1 | 0.05 mm | 2.1 s | 2 s | 35 s | 1 | 4 | 5 mm | 3 mm/s | 3 mm/s |
| Photon Mono M7 | 0.05 mm | 2.2 s | 0.5 s | 25 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M7 Pro | 0.05 mm | 1.8 s | 0.5 s | 40 s | 3 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M7 Max | 0.05 mm | 2 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M5 | 0.05 mm | 2.8 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
| Photon Mono M5s | 0.05 mm | 2.8 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
| Photon Mono M5s Pro | 0.05 mm | 3.6 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono 4 | 0.05 mm | 2.8 s | 1 s | 30 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono 4 Ultra | 0.05 mm | 2.6 s | 1 s | 35 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono 2 | 0.05 mm | 2.5 s | 1 s | 25 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono X2 | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2 mm/s | 3 mm/s |
| Photon Mono X 6K | 0.05 mm | 2 s | 0.5 s | 40 s | 8 | 1 | 8 mm | 2 mm/s | 3 mm/s |
| Photon Mono X 6Ks | 0.05 mm | 2.5 s | 1 s | 20 s | 5 | 1 | 8 mm | 2 mm/s | 3 mm/s |
| ANYCUBIC Photon M3 Max | 0.05 mm | 2.5 s | 1 s | 20 s | 5 | 1 | 8 mm | 2 mm/s | 3 mm/s |
| ANYCUBIC Photon M3 Premium | 0.05 mm | 2.5 s | 0.5 s | 25 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
Color Type
Instructions for Use
1. Before use:
Shake the liquid resin before use;Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.
2. When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements; Select the correct print parameters and settings for printing.
3. After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers, tweezers, containers, gloves; ethanol(≥95%), lactate or isopropyl alcohol cleaning solution;
4. Post-processing steps:
(1) Remove the printed model from the molding platform with a blade;
(2) Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then takenout and drained; ANYCUBlC Wash & Cure machines are suggested to ensure better effect.
(3) Proper processing, such as removing support, polishing, coloring, etc.
Precautions
1. The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light to avoid high temperature or sunlight.
2. Suggested operating temperature is 18-35°C, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).
3. If the resin pigment settles, it can be used after stirring or shaking.
4. In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
5. To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
(1) The intensity of mercury lamp or Led light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
(2) The exposure time in the sun (summer) is around 1 hour;
(3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
(4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive material.
Ps: Material properties willvary depending on the molding equipment, post-curing method and testing equipment. For safetyinformationplease refer to the MSDS of this product. lf you encounter any problems while using, please feel free to contact us.
