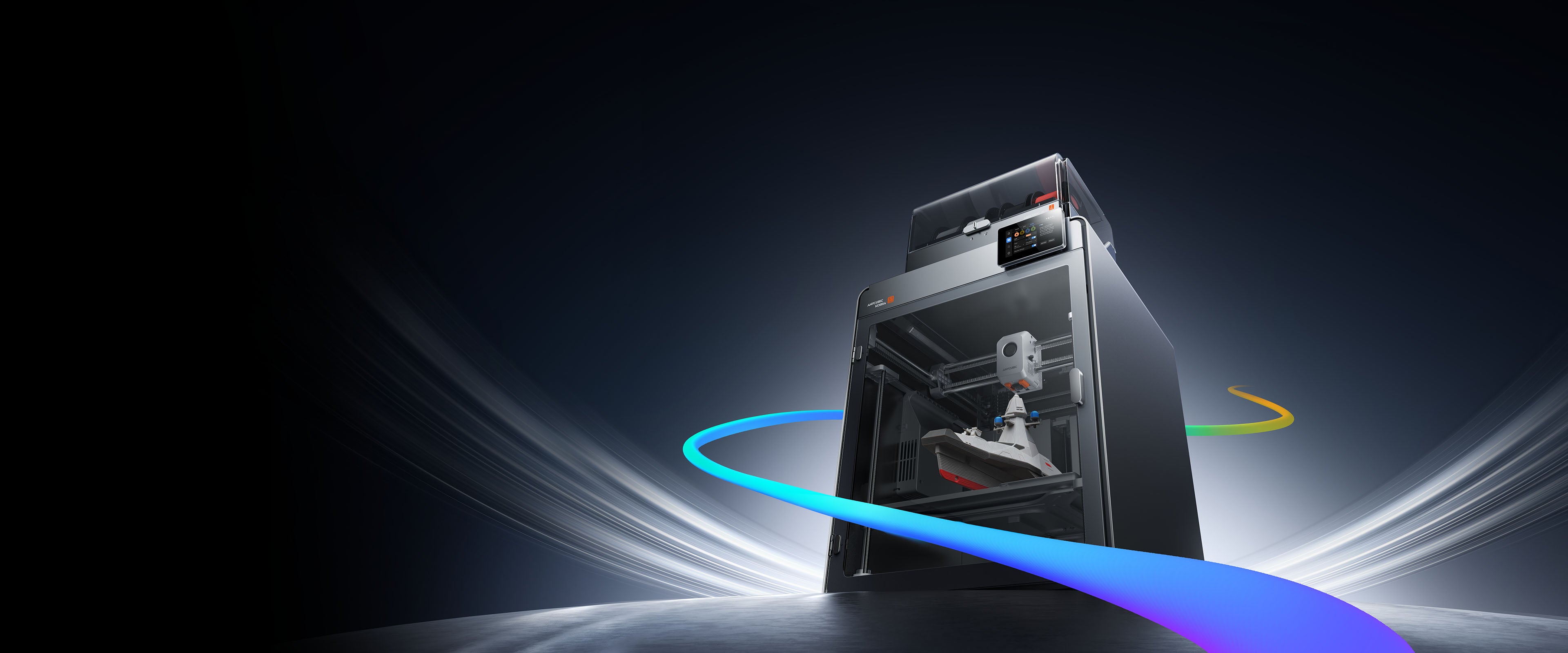

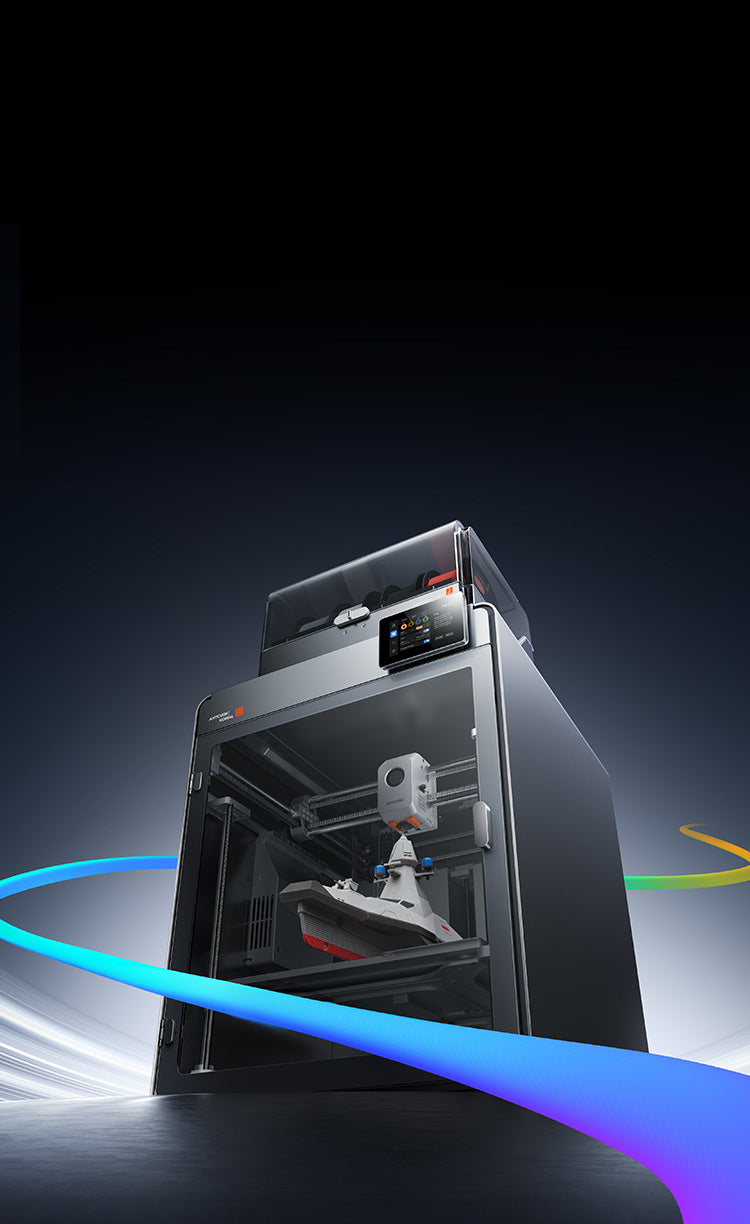

Anycubic Kobra S1 Max Combo

The Grand Design

£50 Deposit = £100 Off Early Bird
UK
Explore Kobra S1 Max Combo Deposit & Early Bird Offers.
0

Product Image

Product Image

    Kobra S1 Series Tech Specs


    Picture Kobra S1 Combo Kobra 2 Max Kobra S1 Combo
    Printer Model Kobra S1 Max Combo Kobra S1 Max Kobra S1 Combo
    Multi-color Printing Supported, 16-color (Max.) ACE 2 Pro sold separately Supported, 8-color (Max.)
    Automatic Refill Supported ACE 2 Pro sold separately Supported
    Sealed Storage Supported ACE 2 Pro sold separately Not Supported
    Active Drying System Supported, 65℃ Drying (Max.) ACE 2 Pro sold separately Supported, 55℃ Drying (Max.)
    Machine Weight Kobra S1 Max: ~25.7KG; ACE 2 Pro: ~3.7KG ~25.7KG Kobra S1: 18kg, ACE Pro: 4.6kg
    Machine Dimension Kobra S1 Max: 502.7*483*584mm³;
    ACE 2 Pro: 368*291.5*236.5mm³    		 502.7*483*584mm³ Kobra S1: 400*410*490mm³;
    ACE Pro: 365.94*282.84*234.5mm³
    Print Volume 350*350*350mm³ 250*250*250mm³
    Supported Filaments PLA, PETG, TPU, PET, PLA-CF, PETG-CF, PVA, ABS, ASA, PC, PA, PA6-CF, PC-CF/GF, PET-CF PLA, PETG, TPU, ABS, ASA
    Recommended Speed 300mm/s 300mm/s
    Recommended Acceleration 10000mm/s² 10000mm/s²
    Maximum Acceleration 20000mm/s² 20000mm/s²
    Active Chamber Heating 65℃ Not Supported
    Nozzle Diameter Standard 0.4mm
    Supports 0.2/0.6/0.8mm expansion    		 Standard 0.4mm
    Supports 0.2/0.6/0.8mm expansion
    Nozzle Material Hardened Steel Brass
    Nozzle Temperature 350°C 320°C
    Hotbed Temperature 120℃ 120℃
    Air Filtration Activated carbon purification Activated carbon purification
    Pressure Advance / Flow Calibration Supported Supported
    Power Loss Auto-Resume Supported Supported
    Filament Runout Detection Supported Supported
    Construction CoreXY CoreXY
    Air Filtration Activated carbon purification Activated carbon purification
    Control Screen 4.3-inch capacitive touch screen 4.3-inch capacitive touch screen
    Video Monitoring Supported, 720P Supported, 480P
    Timelapse Recording Supported Supported
    AI Detection Spaghetti recognition Spaghetti recognition
    Object Skip Supported Supported
    LAN Mode Supported Supported
    Network Connectivity WIFI6/Ethernet connection WIFI
    Printing Method U disk/Anycubic Slicer/Anycubic App USB/Anycubic Slicer/Anycubic App

    FAQs

    Q1: What are the main differences between the Kobra S1 Max Combo and the Kobra S1 Combo?

    The Kobra S1 Max Combo features an expanded print volume of 350×350×350mm³. With its 65°C actively heated chamber, 350°C high-temperature hotend, and 120°C high-temperature heated bed, it confidently handles engineering-grade filaments while maximizing print success and structural integrity.

    Q2: What are the machine dimensions of the Kobra S1 Max Combo? What is the print volume?

    The dimension of the Kobra S1 Max is: 502.7mm×483mm×584mm
    The dimension of the ACE 2 Pro is: 368mm×291.5mm×236.5mm
    The print volume of the Kobra S1 Max is 350×350×350 mm³.

    Q3: What are the recommended print speed and acceleration?

    Default print speed: 300mm/s; Maximum print speed: 600mm/s
    Maximum acceleration: 20000mm/s²

    Q4: What materials can the Kobra S1 Max print with?

    Consumer-grade: PLA, PETG, TPU (95A), TPU for ACE, PET, PLA-CF, PETG-CF, PVA;
    Engineering-grade: ABS, ASA, PC, PA, PA6-CF, PC-CF/GF, PET-CF.

    Q5: What is the maximum number of colors supported by the Kobra S1 Max?

    Start with one ACE 2 Pro for 4-color printing. Combine four of them to achieve 16-color printing.

    Q6: What equipment is required for 16-color printing?

    It requires two 8 colors filament hubs and 2 colors filament hub to achieve 16-color printing.

    Q7: What is the material of the Kobra S1 Max's hotend nozzle?

    Hardened steel. Kobra S1 Max Combo comes pre-installed with a 0.4mm hardened steel nozzle and includes an additional 0.6mm hardened steel nozzle in the package. It also supports optional 0.25mm brass and 0.8mm hardened steel nozzles.

    Q8: What are the differences between the ACE 2 Pro and the first-generation ACE Pro?

    The ACE 2 Pro supports 65℃ high-temperature drying while printing and features temperature and humidity detection, along with sealed storage and an electromagnetic valve that actively removes moisture. In addition, the feeding and buffering mechanisms have been fully upgraded to provide greater printing stability.

    Q9: Is the Kobra S1 Max compatible with the ACE Pro from the first-generation Kobra 3/Kobra S1/Kobra 3 Max?

    Kobra S1 Max does not support ACE Pro.

    Q10: Are the accessories for the Kobra S1 Max compatible with the older S1 series accessories?

    The Kobra S1 Max Combo features unique components such as the hotend, hotbed, nozzle, and ACE 2 Pro accessories, with only a few parts like the 4/8 colors filament hub and clog detection module being shared.

    Q11: Are there any overheating or other safety protections?

    The plastic components of the heated bed are made of V0-grade flame-retardant material.

    Q12: Does the Kobra S1 Max support a multilingual interface?

    Now supports Chinese, English, German, Russian, Spanish, French, Italian, Korean, Japanese and Portuguese.
