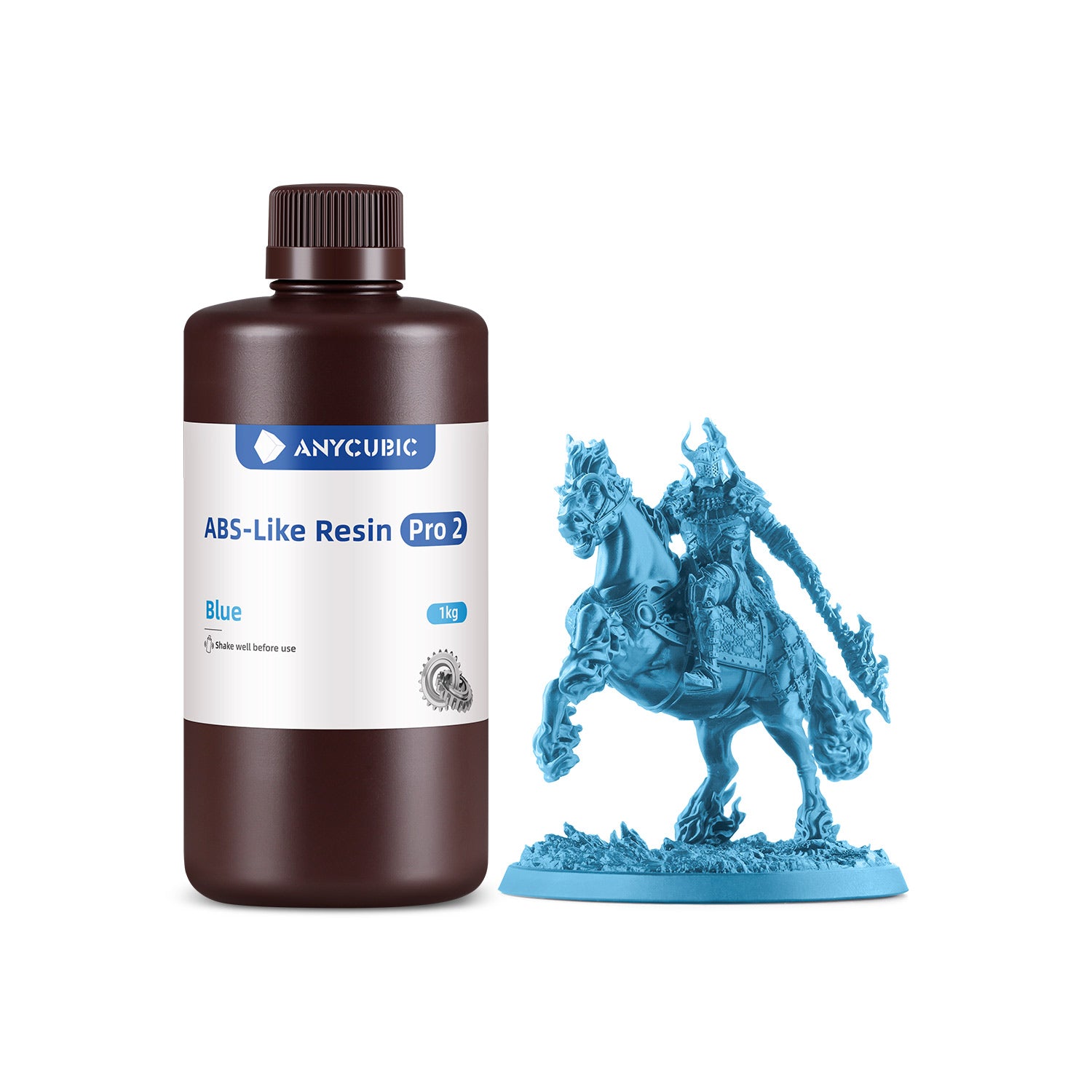

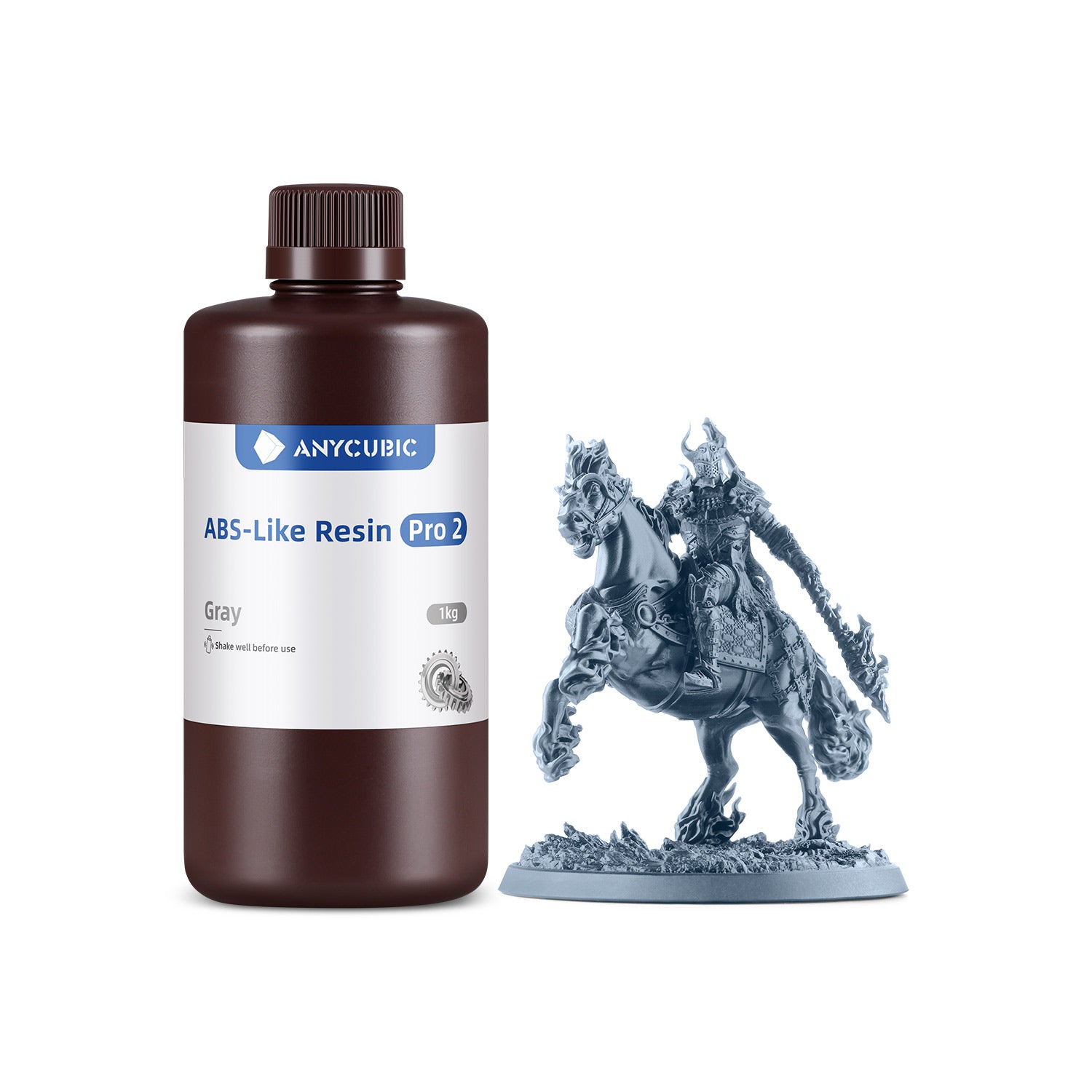

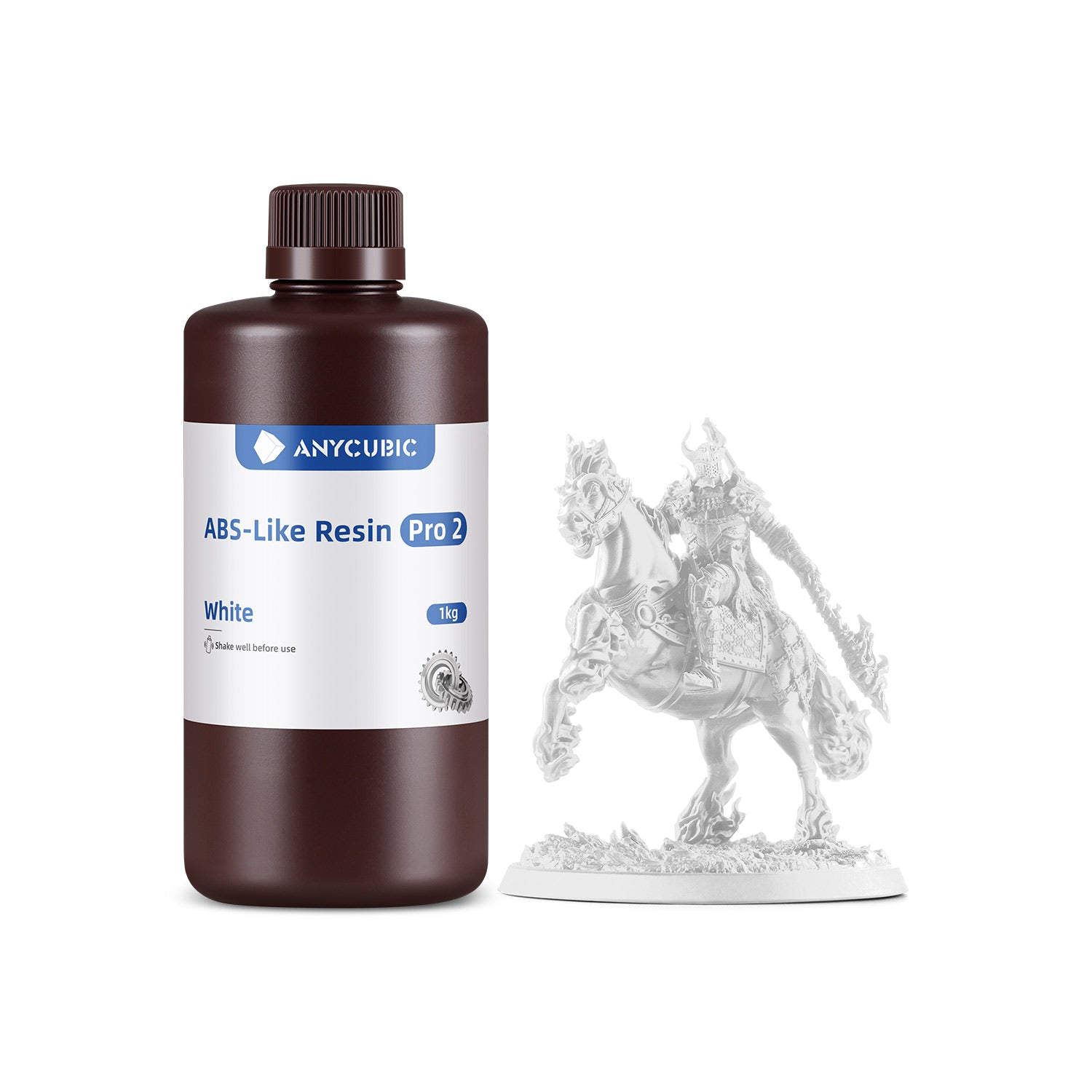

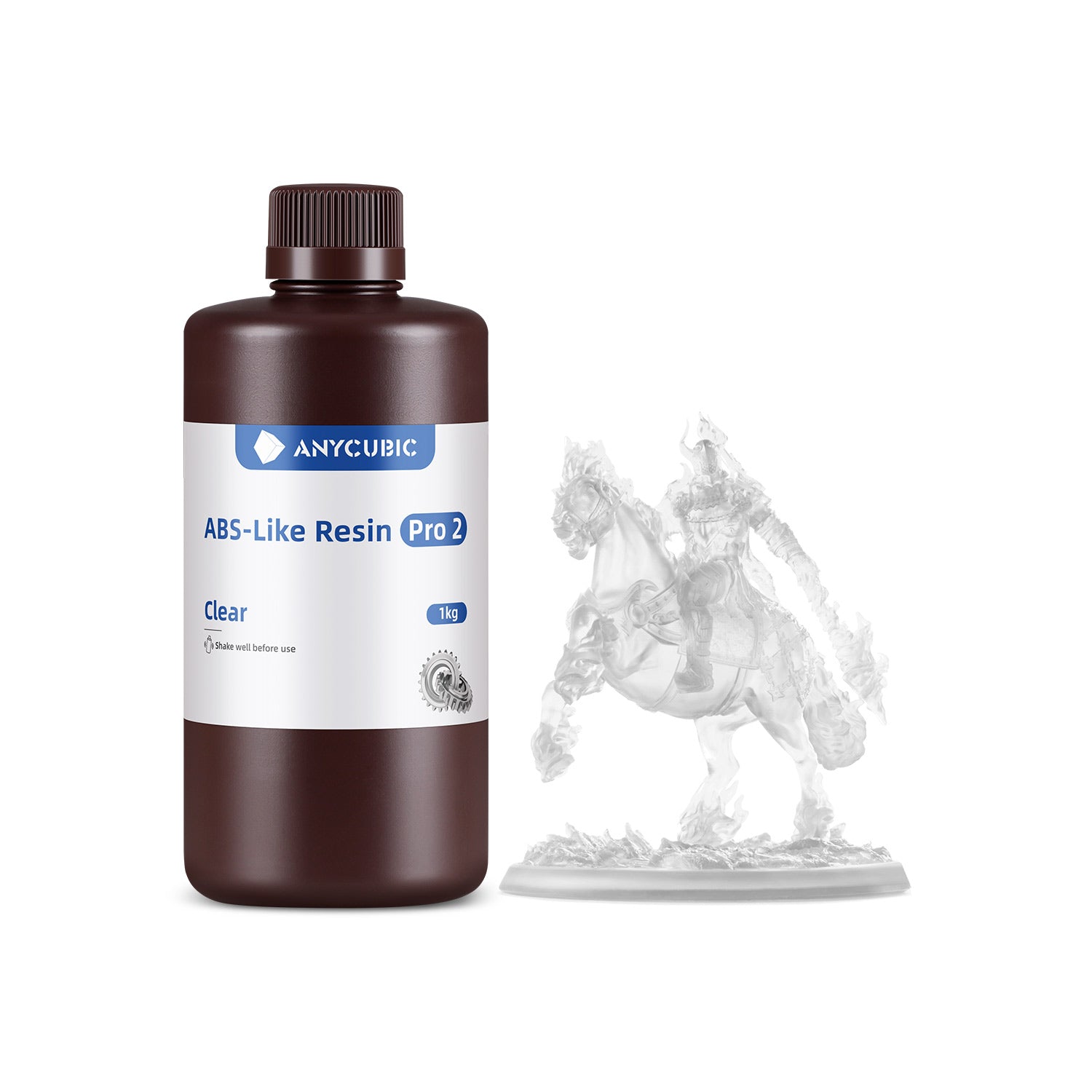

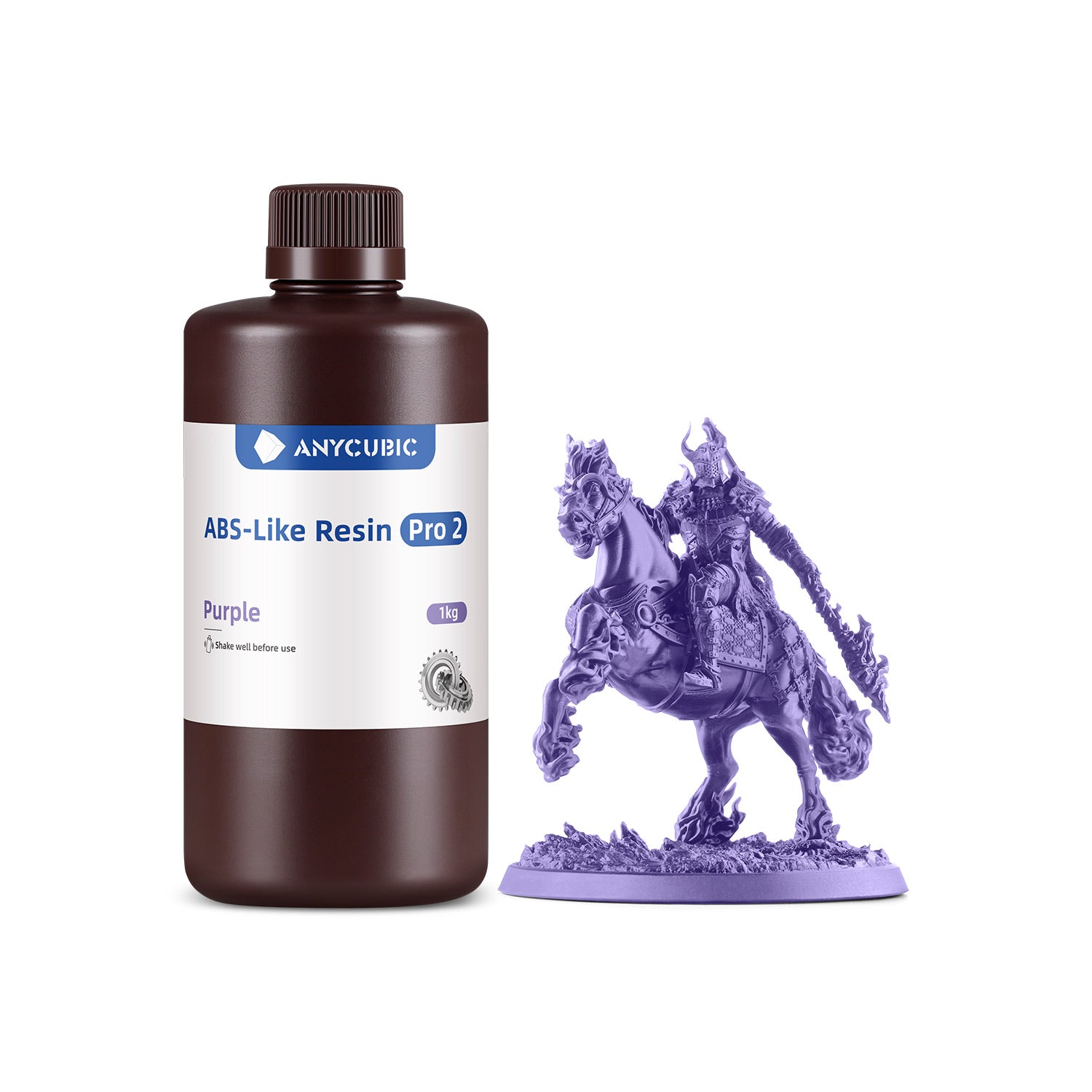

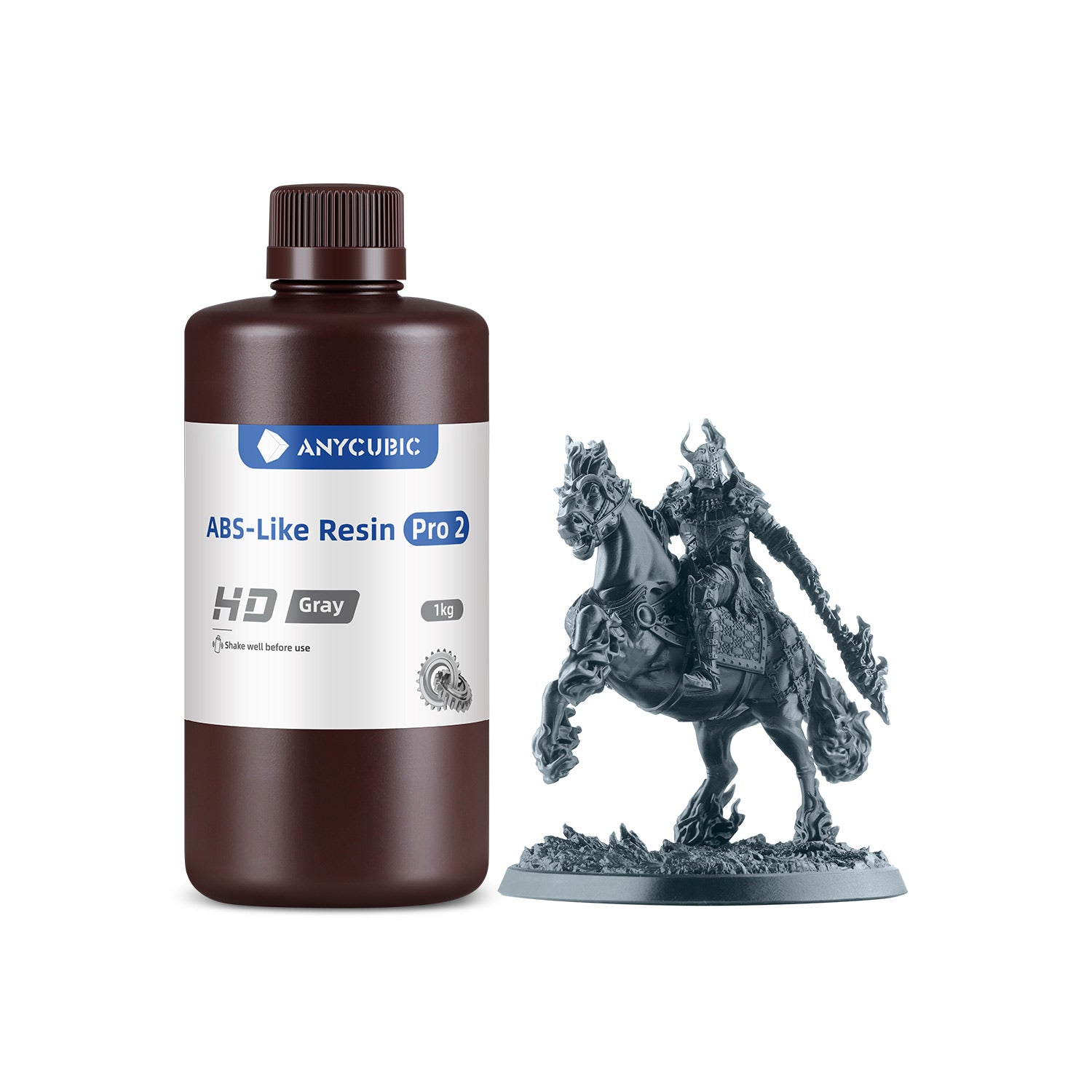

ABS-Like Resin Pro 2 5-20kg Deals

Regular price £105.99
Regular price £210.00 Sale price £105.99
-£104.01
Shipping calculated at checkout.

Product Features
● Toughness Upgrade
● High Flowability, High Success Rate
● Low Odor for Peaceful Printing
🔥 Buy More Save More
SIZE: 5KG
COLOR: White
SHIPPING TO: UK

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

Regular price £105.99
Regular price £210.00 Sale price £105.99

Resin Parameters

UV wavelength 365-405nm Elongation at break 30-40%
Density 1.1-1.2g/cm³ Molding shrinkage 4.3-5.6%
Viscosity 180-200 cP·mPa·s Flexural strength 40-50 MPa
Felxural modulus >1000-1200 MPa Hardness 80-85D
Heat deflection temp >60-65℃ Tensile strength 85-45 MPa
Bottom exposure time >20-40s Normal exposure time 1.5-3s (color screen 8s)
Resin wash Alcohol Conservation period 1.5 Year

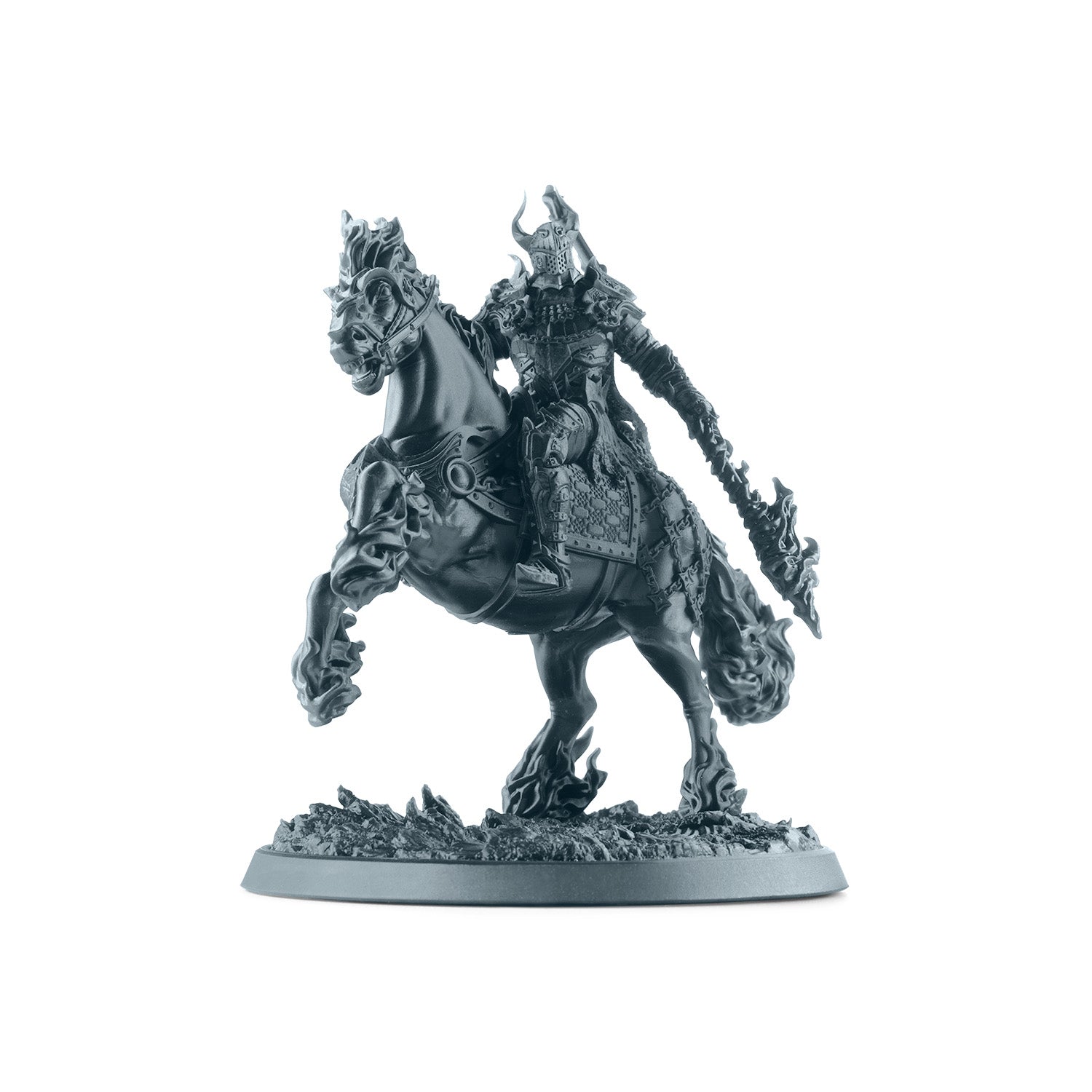

Model Print

Recommended Printing Parameters

Printer Model Layer Thickness Exposure Time Light-Off Time Bottom Exposure Time Bottom Layer Anti-Aliasing Level Z Lift Distance Z Lift Speed Z Retract Speed
Photon Mono M5s Pro (Normal printing mode) 0.05mm 3.6s 0.5s 30s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5s Pro (Fast printing mode) 0.1mm 4s 0.5s 30s 5 1 5mm 20mm/s 20mm/s
Photon Mono M5s (Normal printing mode) 0.05mm 2.8s 0.5s 25s 5 1 8mm 5mm/s 6mm/s
Photon Mono M5s (Fast printing mode) 0.1mm 3s 0.5s 25s 6 1 5mm 20mm/s 20mm/s
Photon Mono M5 0.05mm 2.8s 0.5s 25s 5 1 8mm 5mm/s 6mm/s
Photon M3 Max 0.05mm 3s 2.5s 35s 6 1 10mm 2mm/s 3mm/s
Photon Mono X 6Ks 0.05mm 2.5s 0.5s 20s 5 1 8mm 3mm/s 4mm/s
Photon Mono X2 0.05mm 2.5s 0.5s 20s 5 1 8mm 2mm/s 3mm/s
Photon Mono 2 0.05mm 2.5s 1s 25s 5 1 6mm 4mm/s 6mm/s
Photon D2 0.05mm 2.5s 1s 28s 5 16 5mm 2mm/s 3mm/s
Photon M3 Plus 0.05mm 1.5s 0.5s 25s 6 1 6mm 6mm/s 6mm/s
Photon M3 0.05mm 2s 0.5s 25s 5 1 6mm 3mm/s 4mm/s
Photon M3 Premium 0.05mm 2.5s 0.5s 25s 2 1 8mm 6mm/s 6mm/s
Photon Ultra 0.05mm 2s 1s 35s 5 4 5mm 2mm/s 2mm/s
Photon Mono X 0.05mm 2s 0.5s 28s 4 1 8mm 2mm/s 3mm/s
Photon Mono 4K 0.05mm 2s 0.5s 40s 6 1 6mm 4mm/s 6mm/s
Photon Mono X 6K 0.05mm 2s 0.5s 25s 6 1 8mm 2mm/s 3mm/s
Photon Mono SQ / / / / / / / / /
Photon Mono SE / / / / / / / / /
Photon Mono 0.05mm 2s 0.5s 40s 6 1 6mm 4mm/s 6mm/s
Photon S / / / / / / / / /

Color Type

Instructions for Use

(1) Before use:
Shake the liquid resin before use; Clean the resin tank and the molding platform to keep the bottom of the resin tank in lighttransmission.

(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements; Select the correct print parameters and settings for printing.

(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonalpliers, tweezers, containers, gloves; ethanol(≥95%), lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then takenout and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C. Proper processing, such as removing support, polishing, coloring, etc.

Precautions

  1. The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light to avoid high temperature or sunlight.
  2. Suggested operating temperature is 18-35'c, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).
  3. If the resin pigment settles, it can be used after stirring or shaking.
  4. In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
  5. To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
  6. To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
    (1) The intensity of mercury lamp or LeD light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
    (2)The exposure time in the sun (summer) is around 1 hour;
    (3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
    (4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive material.


Ps: Material properties willvary depending on the molding equipment, post-curing method and testing equipment. For safetyinformation
please refer to the MSDS of this product. lf you encounter any problems while using, please feel free to contact us.
